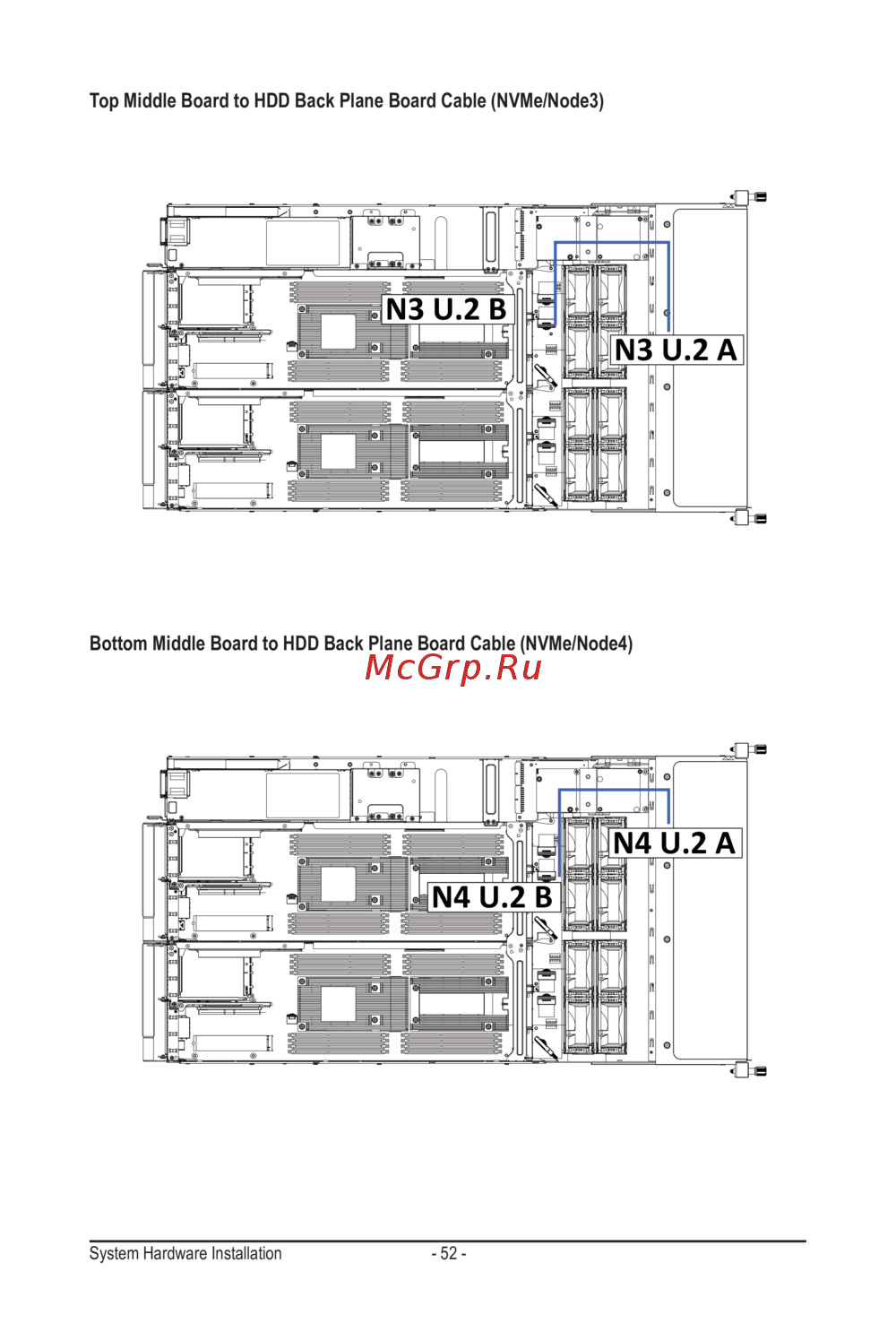

System Hardware Installation - 52 -

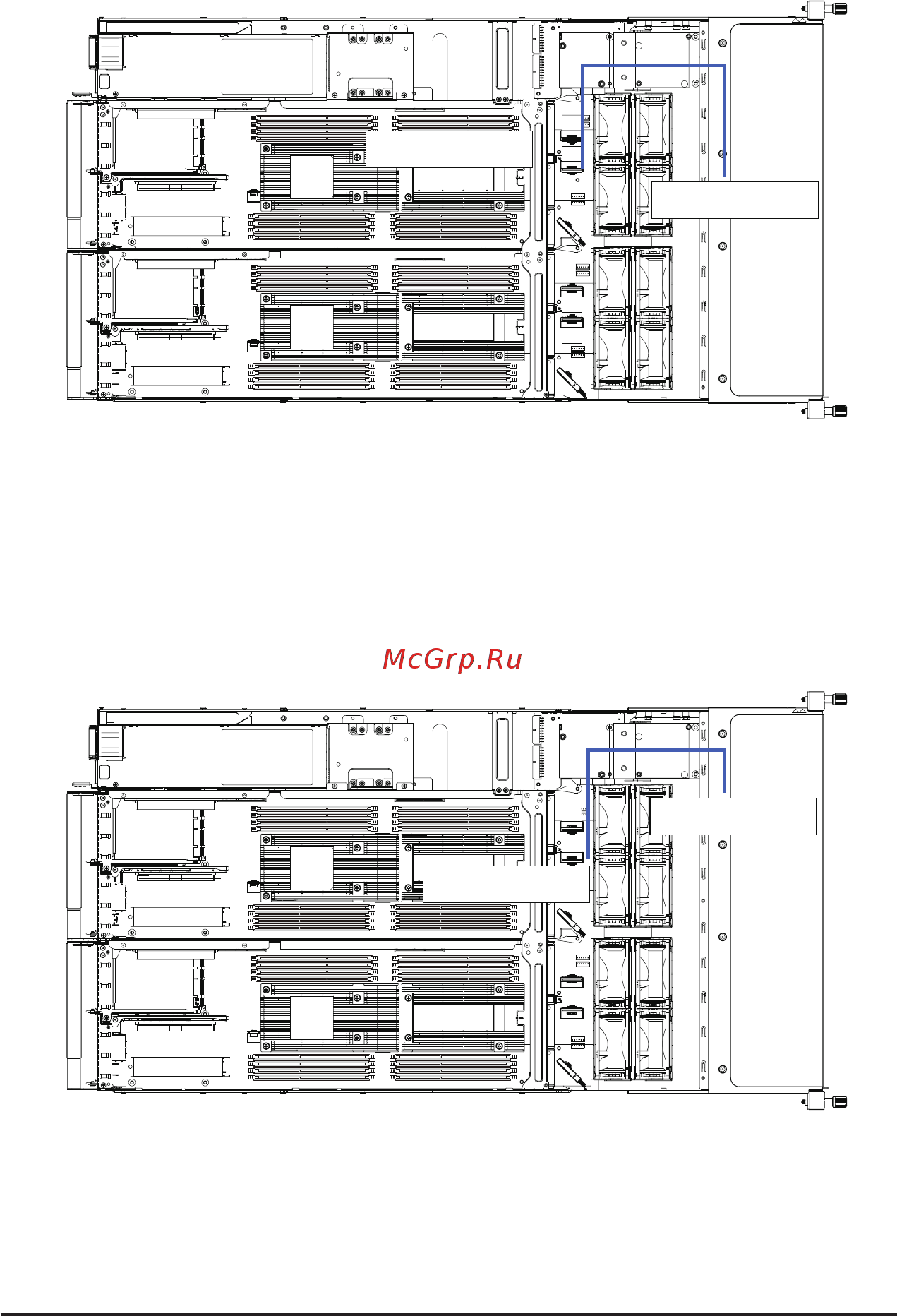

Top Middle Board to HDD Back Plane Board Cable (NVMe/Node3)

Bottom Middle Board to HDD Back Plane Board Cable (NVMe/Node4)

N3 U.2 A

N3 U.2 B

N4 U.2 A

N4 U.2 B
