Gigabyte H262-Z6B (rev. 100) [65/172] 2 1 trusted computing

- 63 - BIOS Setup

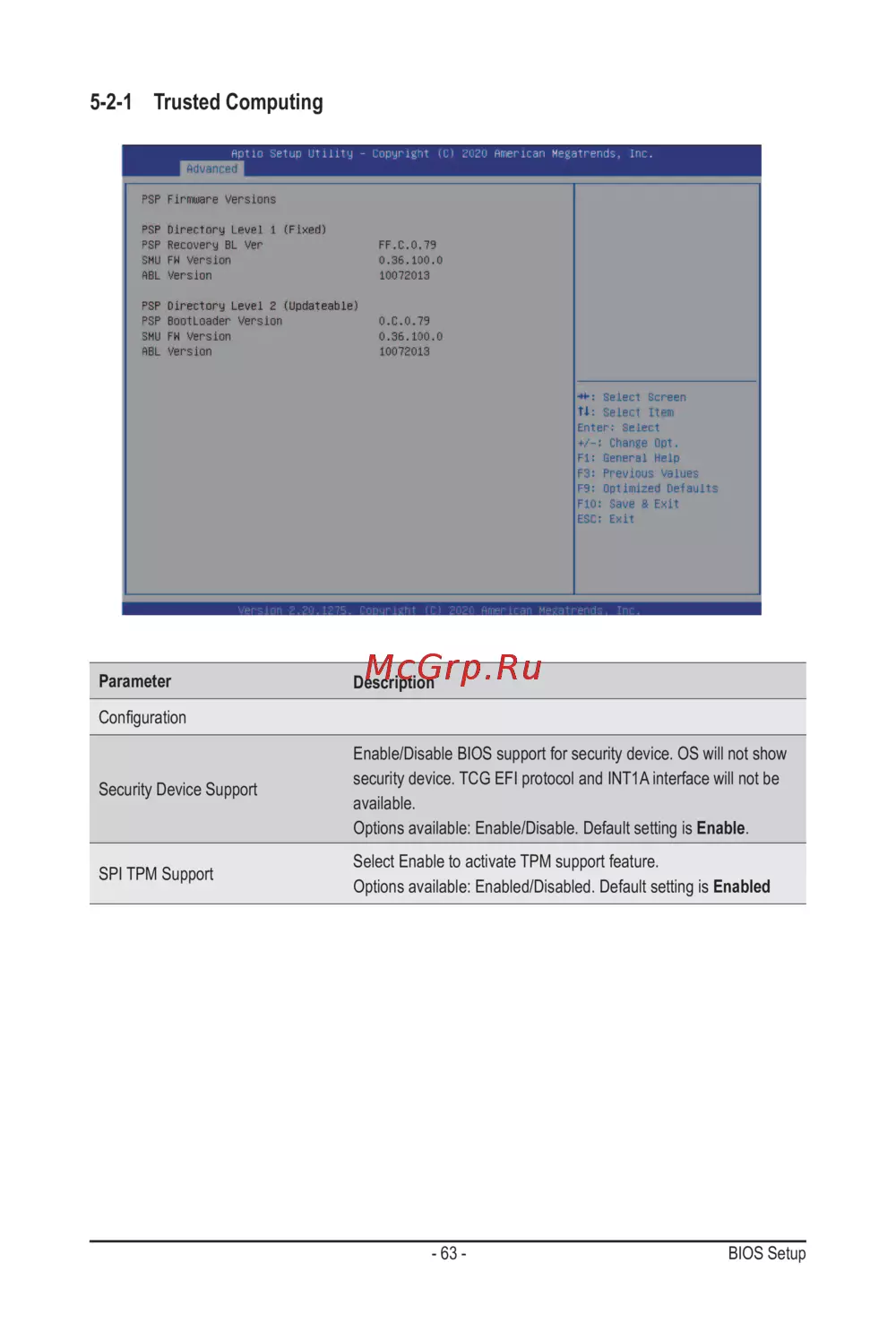

5-2-1 Trusted Computing

Parameter

Description

Conguration

Security Device Support

Enable/Disable BIOS support for security device. OS will not show

security device. TCG EFI protocol and INT1A interface will not be

available.

Options available: Enable/Disable. Default setting is Enable.

SPI TPM Support

Select Enable to activate TPM support feature.

Options available: Enabled/Disabled. Default setting is Enabled
