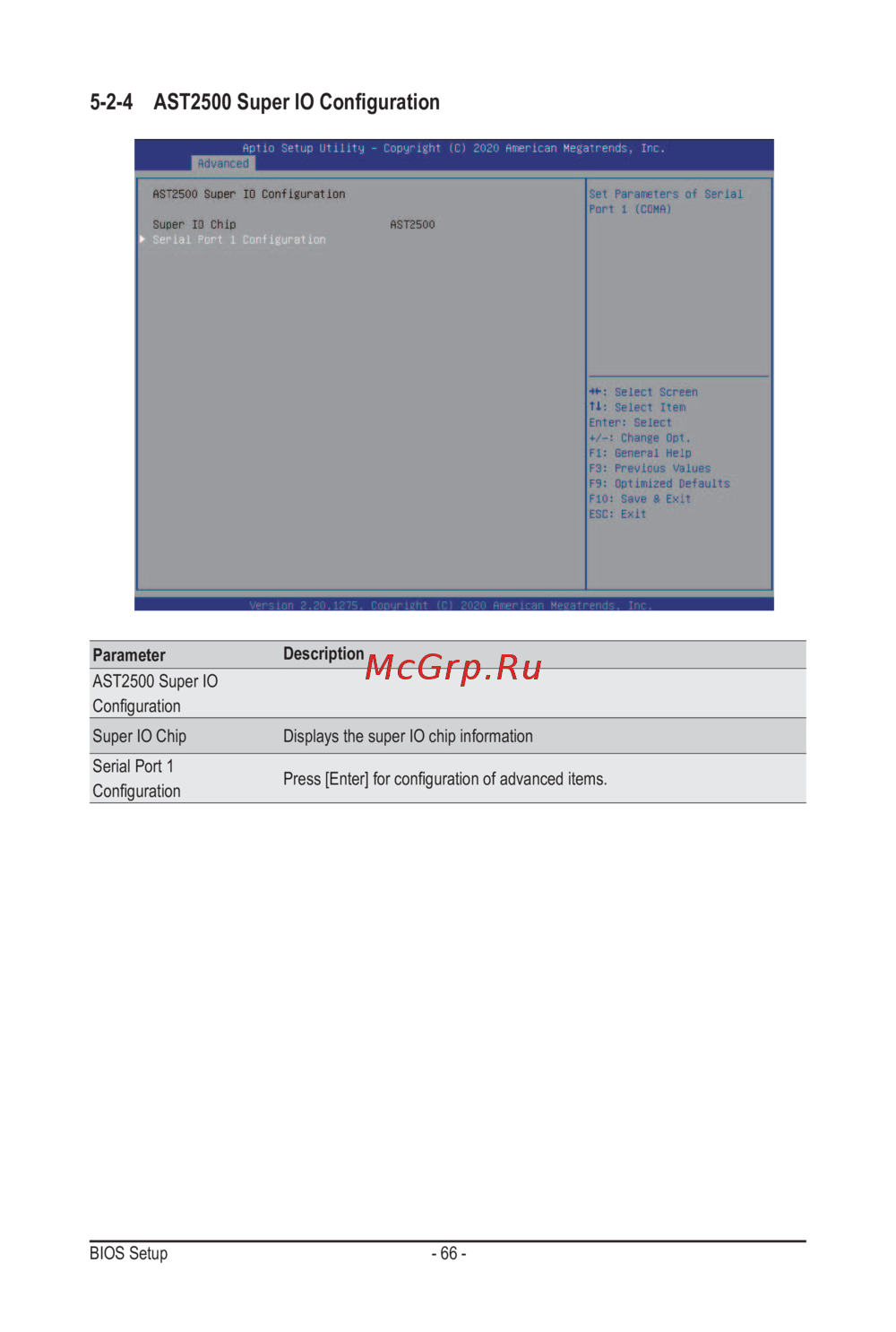

Gigabyte H262-Z6B (rev. 100) [68/172] 2 4 ast2500 super io configuration

BIOS Setup - 66 -

5-2-4 AST2500 Super IO Conguration

Parameter

Description

AST2500 Super IO

Conguration

Super IO Chip Displays the super IO chip information

Serial Port 1

Conguration

Press [Enter] for conguration of advanced items.
