- 69 - BIOS Setup

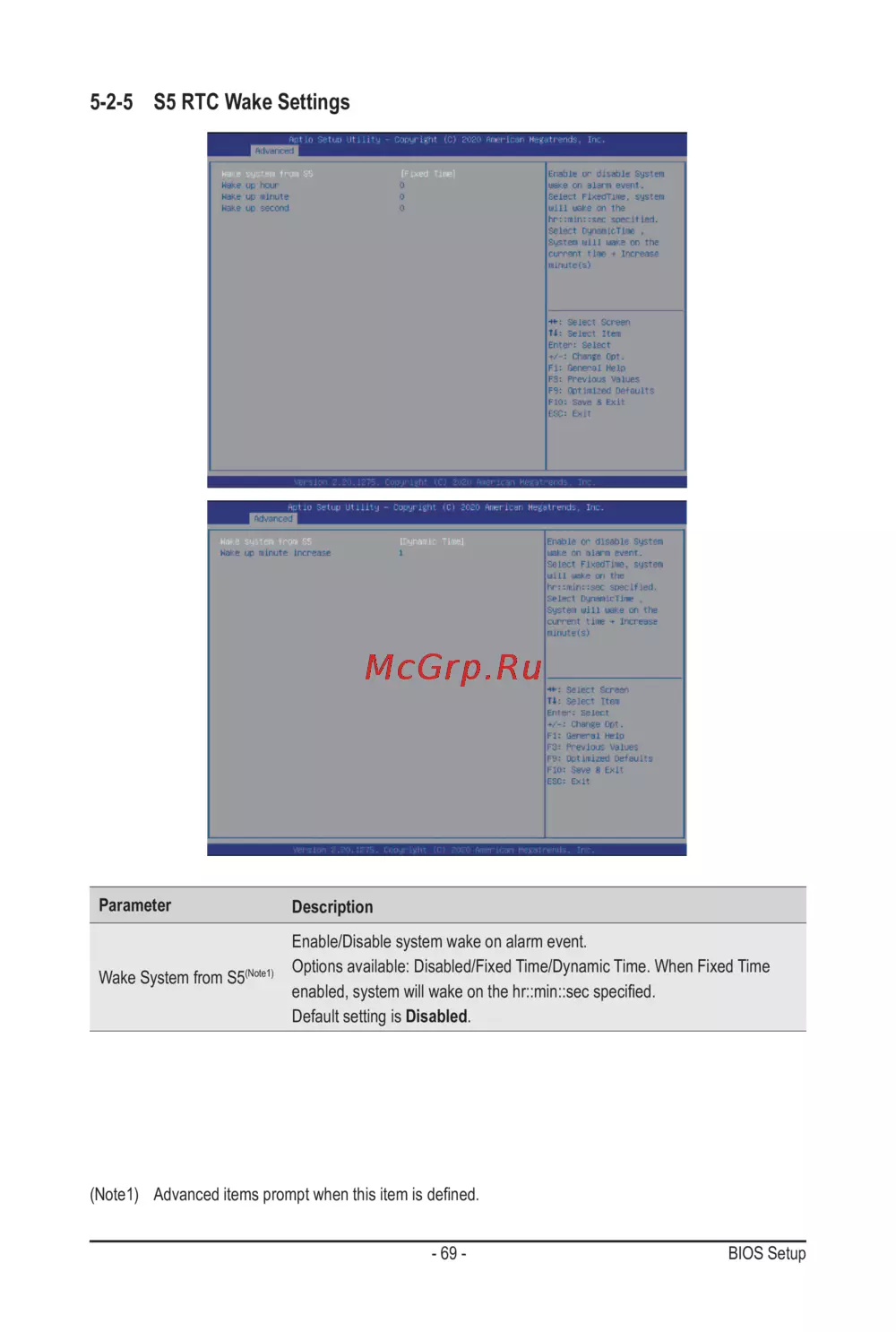

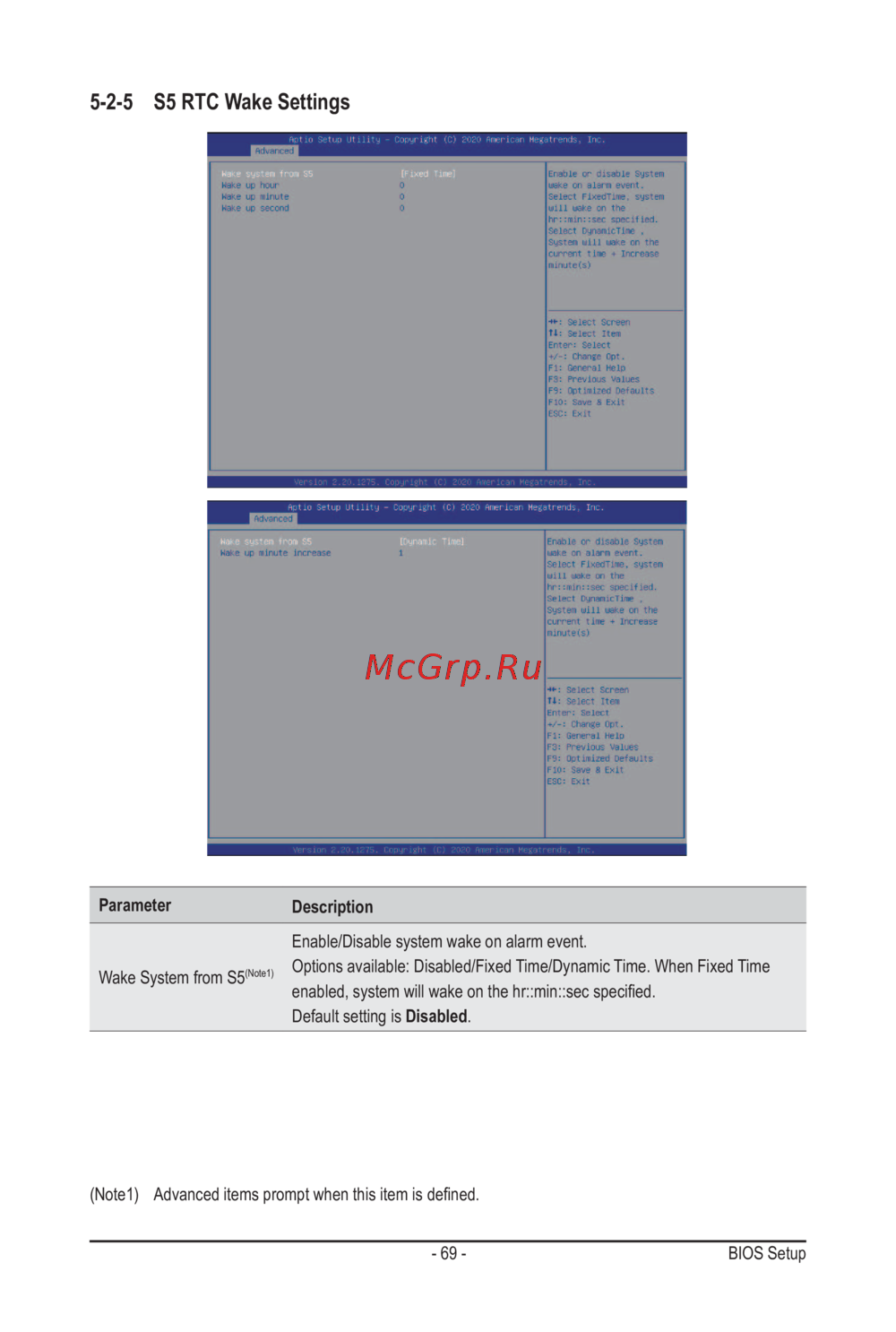

5-2-5 S5 RTC Wake Settings

Parameter

Description

Wake System from S5

(Note1)

Enable/Disable system wake on alarm event.

Options available: Disabled/Fixed Time/Dynamic Time. When Fixed Time

enabled, system will wake on the hr::min::sec specied.

Default setting is Disabled.

(Note1) Advanced items prompt when this item is dened.
