Gigabyte H262-Z6B (rev. 100) [83/172] 2 12 sata configuration

- 81 - BIOS Setup

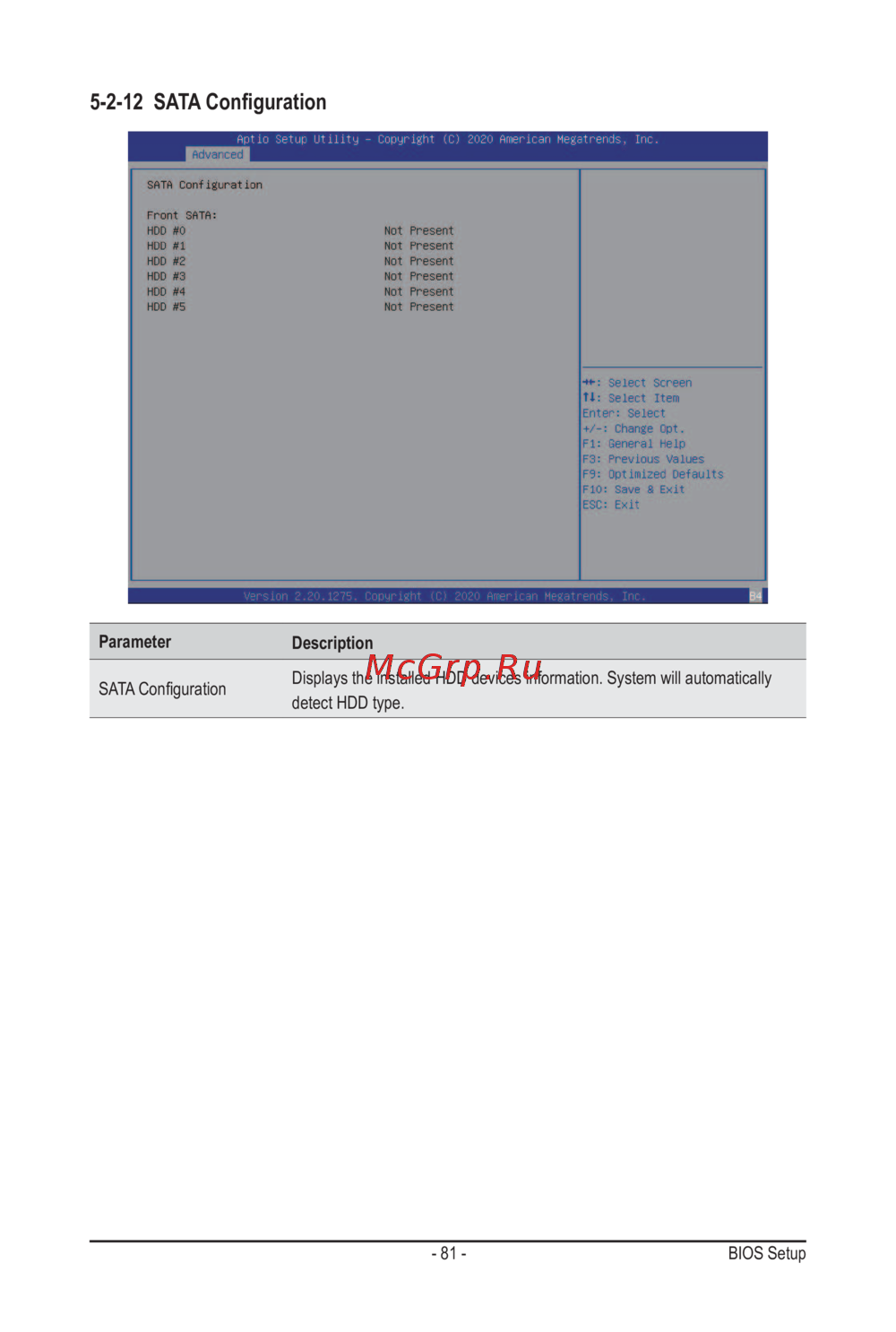

5-2-12 SATA Conguration

Parameter

Description

SATA Conguration

Displays the installed HDD devices information. System will automatically

detect HDD type.
