Инструкция Страница: 87

Gigabyte H262-Z6B (rev. 100) [87/172] 2 16 amd mem configuration status

BIOS Setup - 85 -

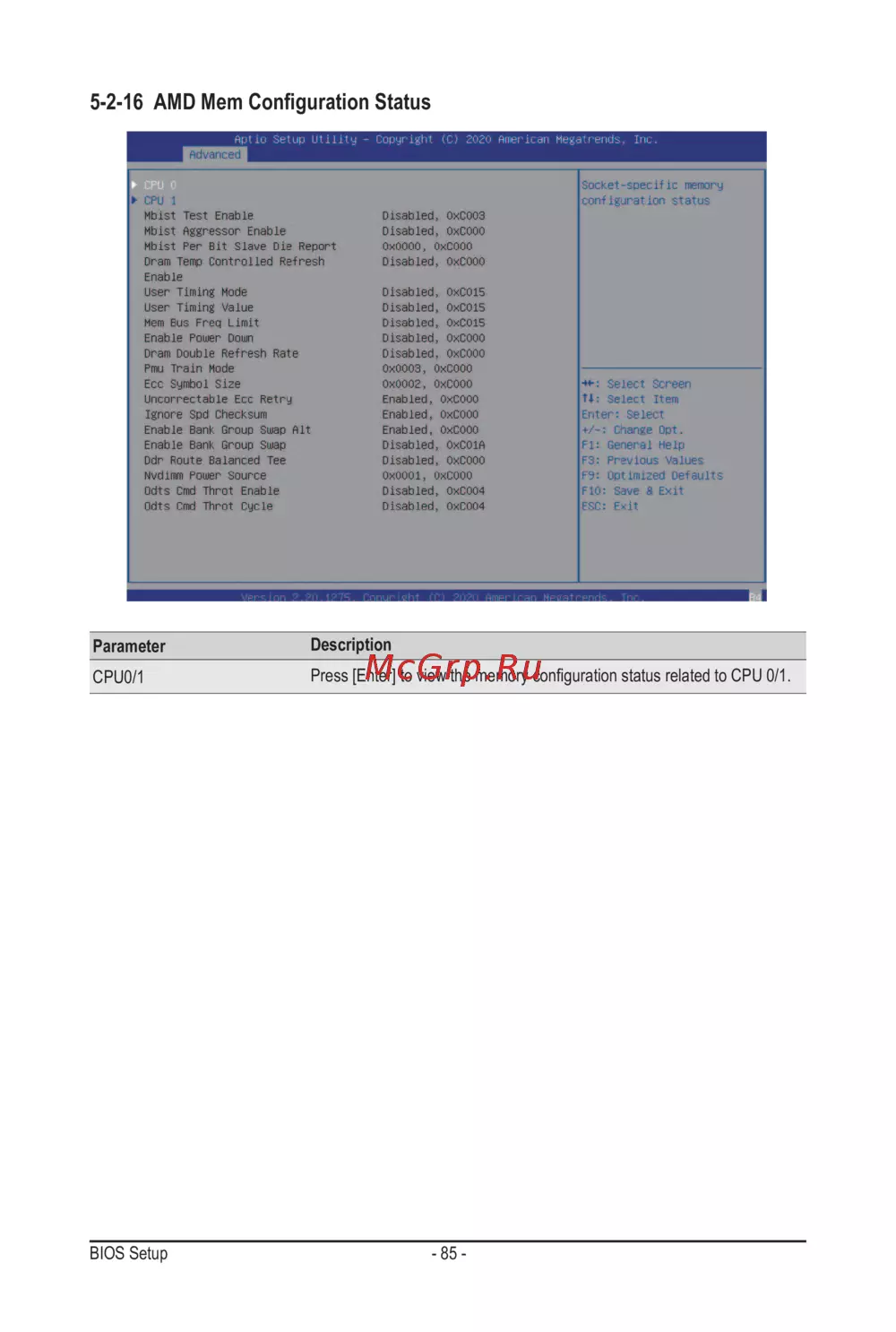

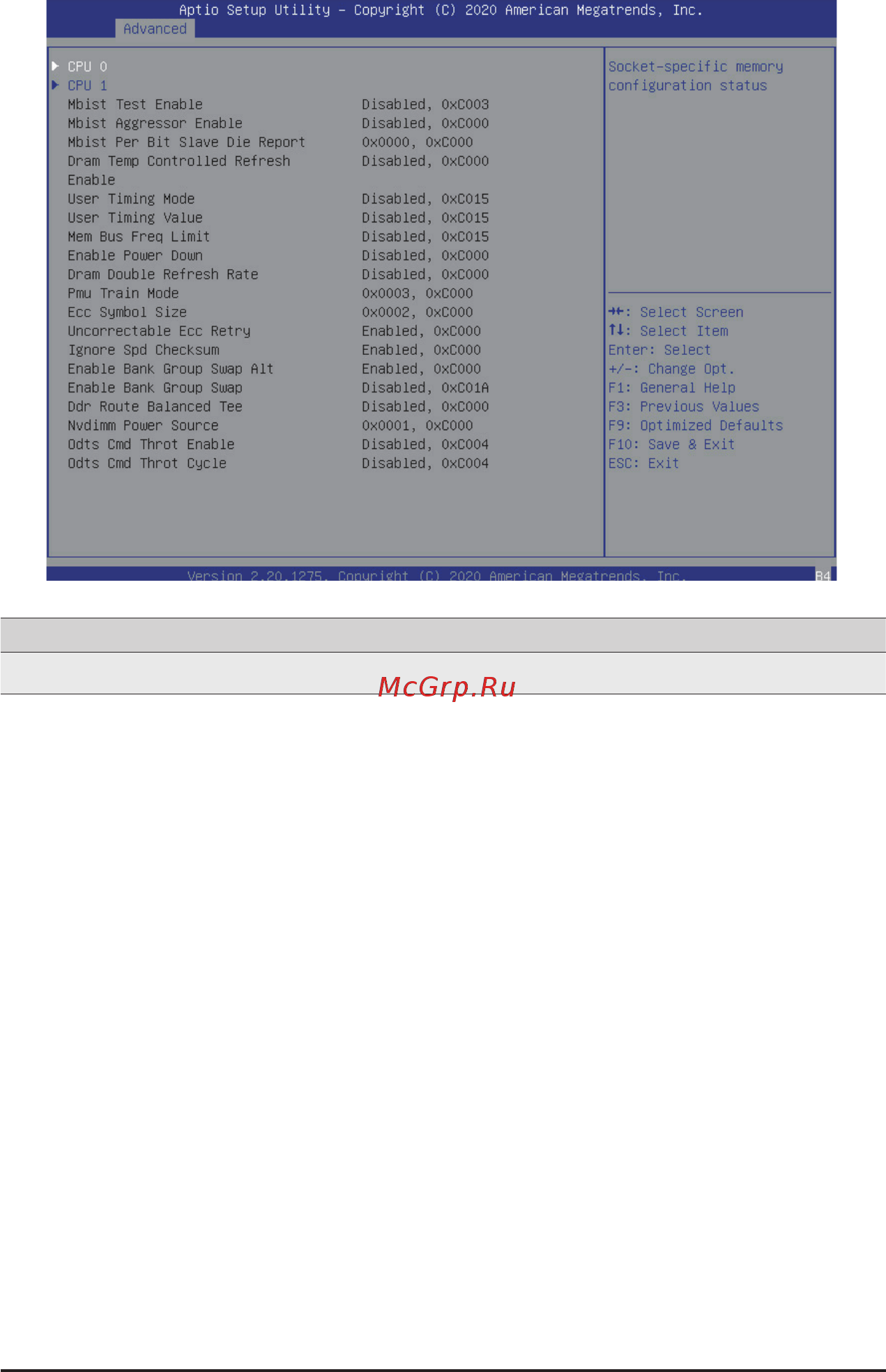

5-2-16 AMD Mem Conguration Status

Parameter

Description

CPU0/1

Press [Enter] to view the memory conguration status related to CPU 0/1.
