Gigabyte H262-Z6B (rev. 100) [88/172] 2 17 iscsi configuration

- 86 - BIOS Setup

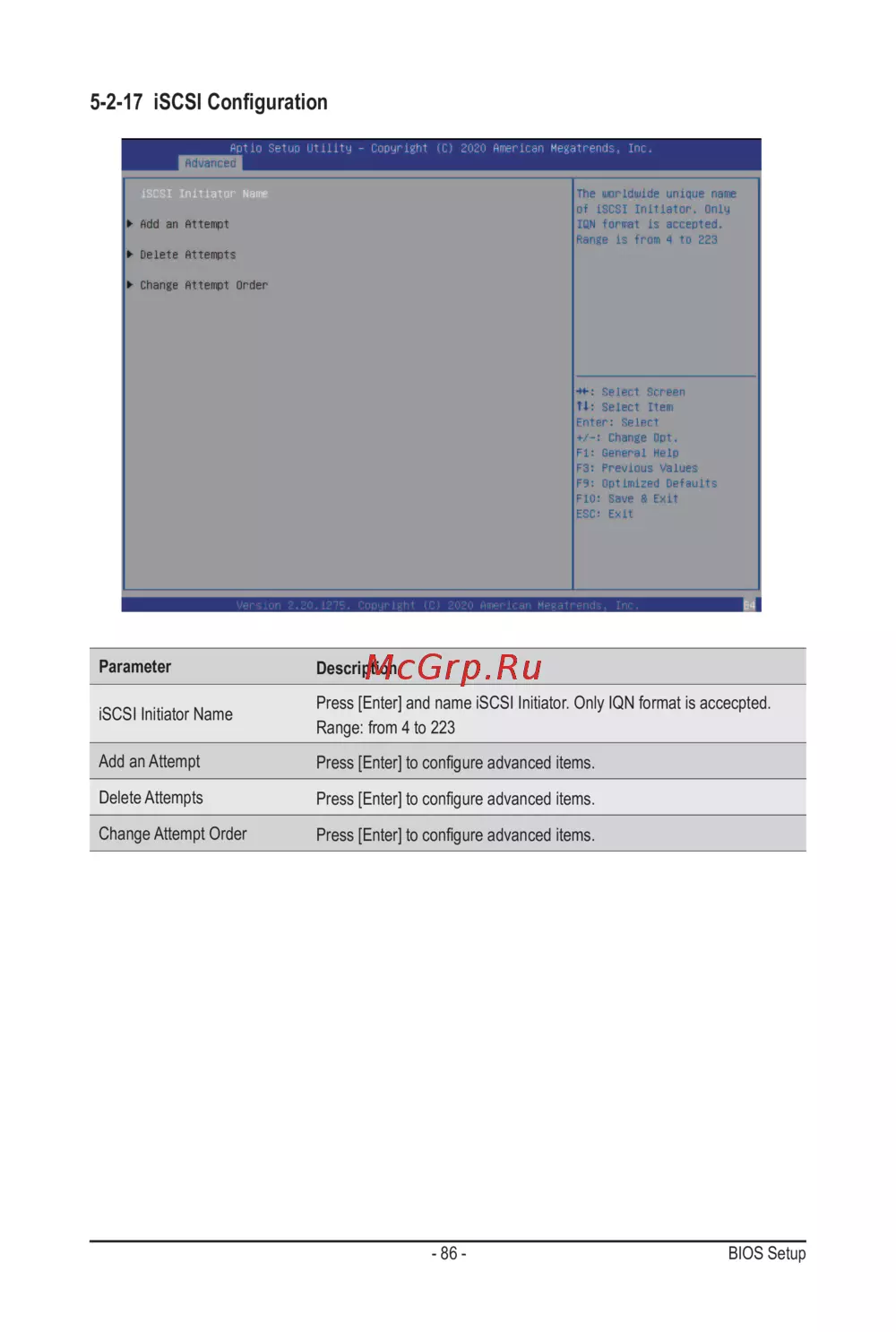

5-2-17 iSCSI Conguration

Parameter

Description

iSCSI Initiator Name

Press [Enter] and name iSCSI Initiator. Only IQN format is accecpted.

Range: from 4 to 223

Add an Attempt

Press [Enter] to congure advanced items.

Delete Attempts

Press [Enter] to congure advanced items.

Change Attempt Order

Press [Enter] to congure advanced items.
