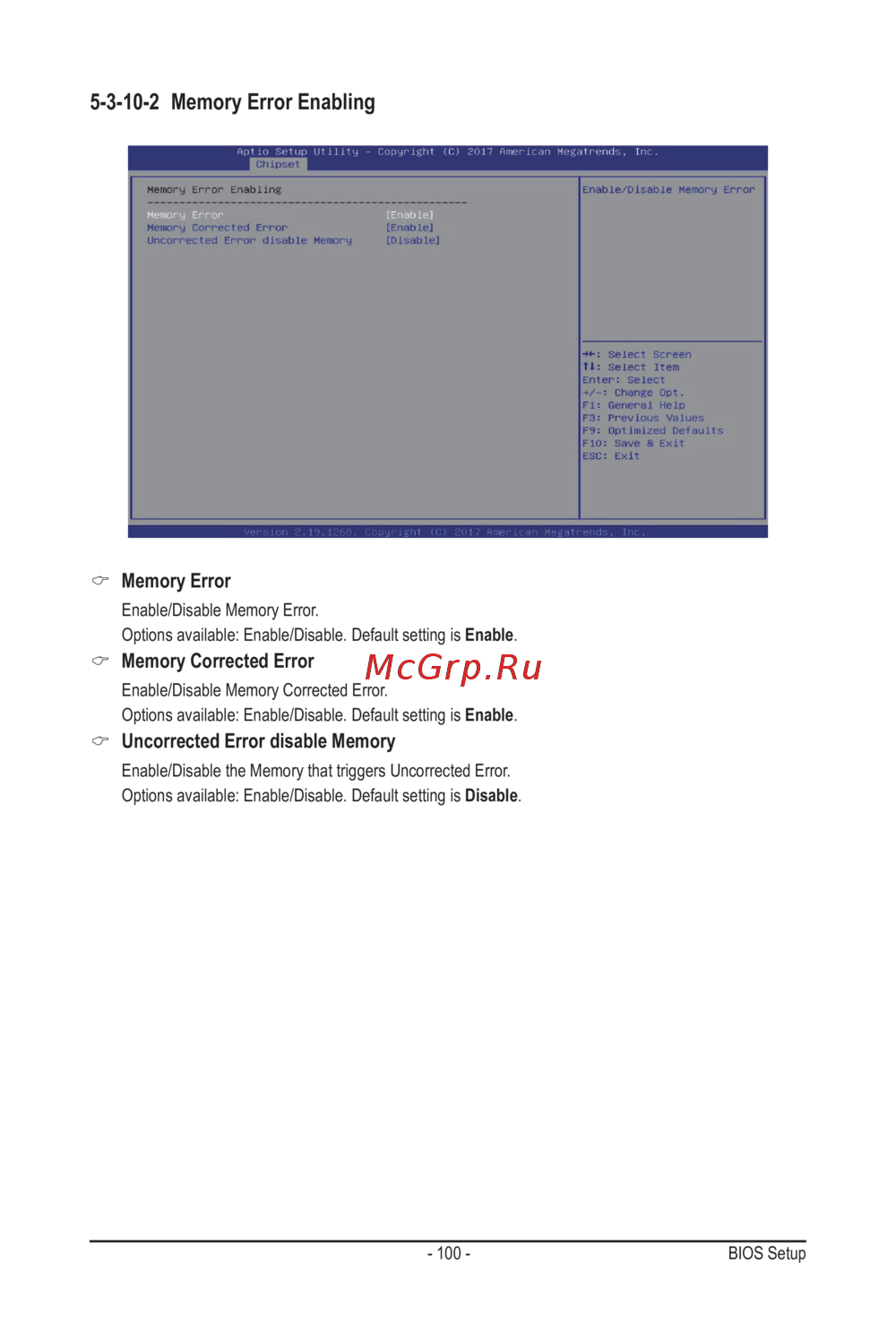

- 100 - BIOS Setup

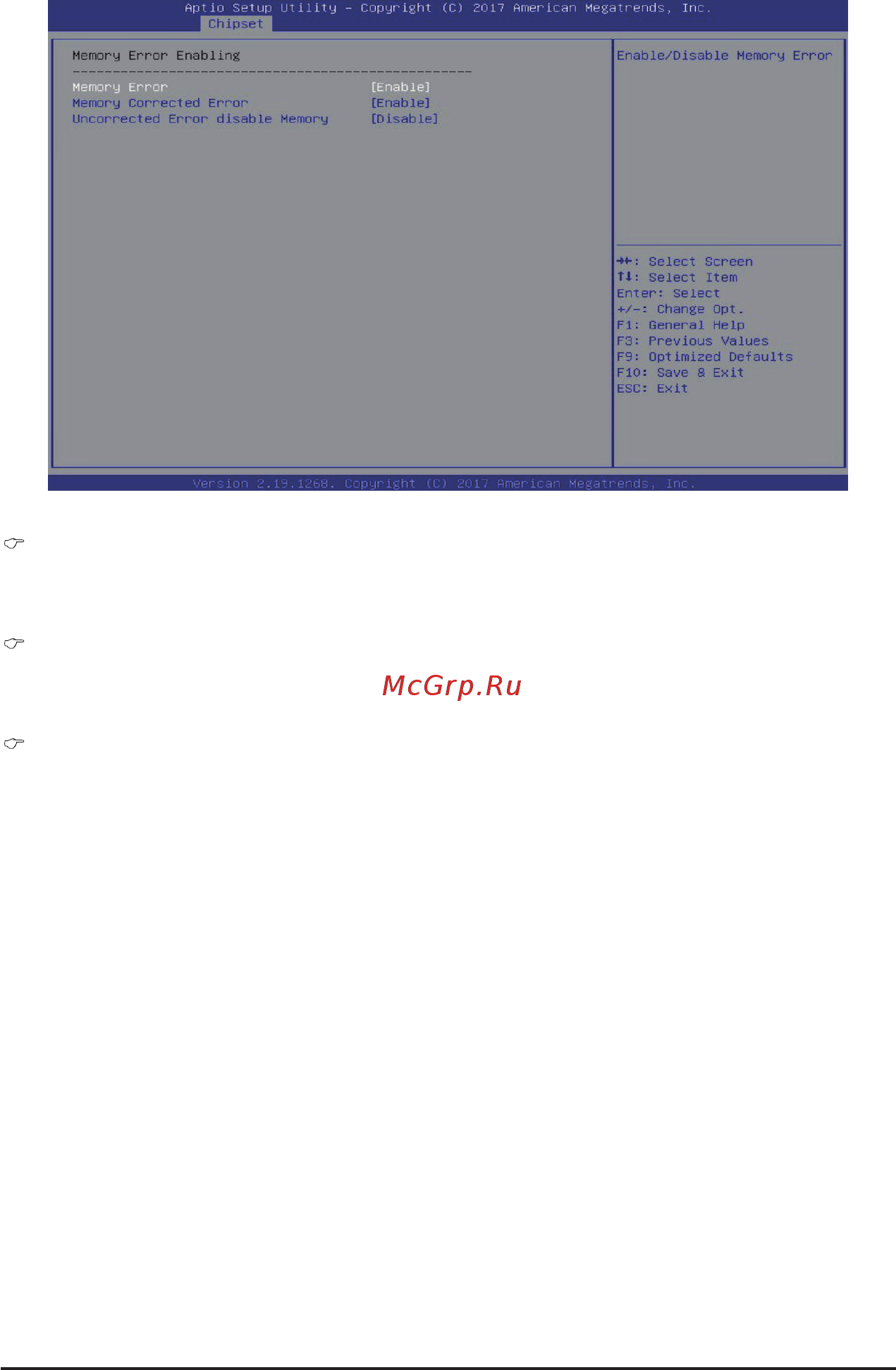

5-3-10-2 Memory Error Enabling

Memory Error

Enable/Disable Memory Error.

Options available: Enable/Disable. Default setting is Enable.

Memory Corrected Error

Enable/Disable Memory Corrected Error.

Options available: Enable/Disable. Default setting is Enable.

Uncorrected Error disable Memory

Enable/Disable the Memory that triggers Uncorrected Error.

Options available: Enable/Disable. Default setting is Disable.
