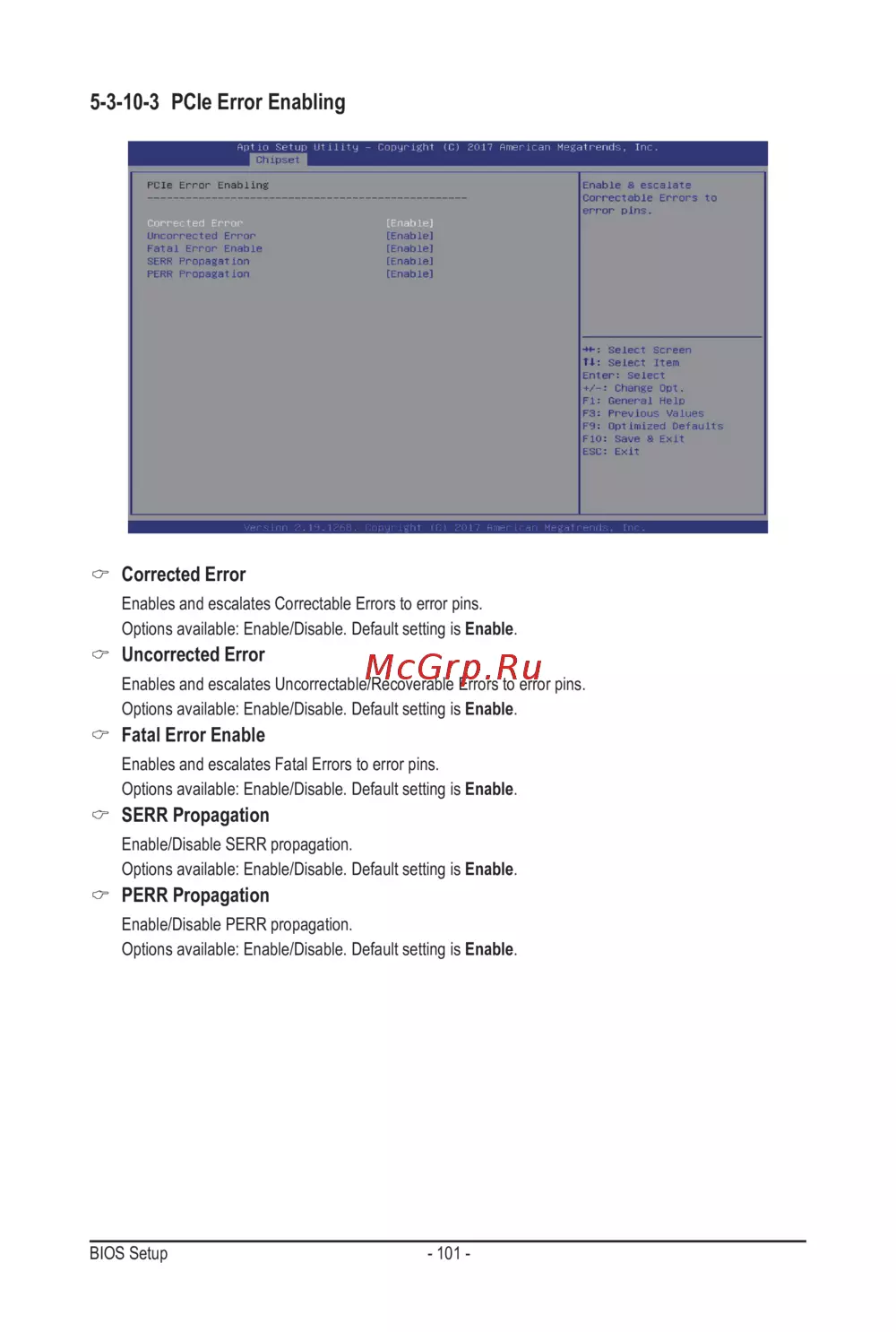

BIOS Setup - 101 -

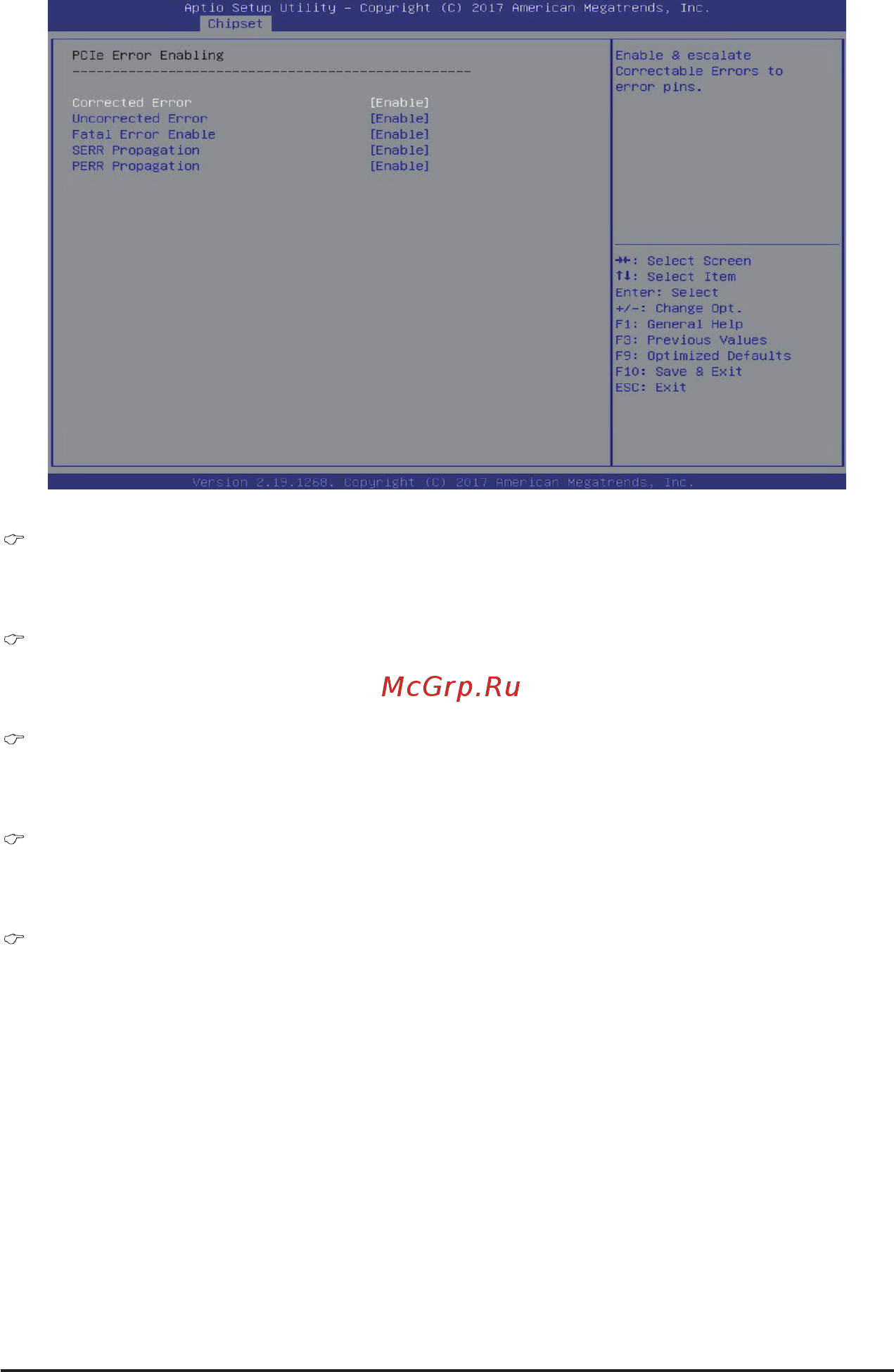

5-3-10-3 PCIe Error Enabling

Corrected Error

Enables and escalates Correctable Errors to error pins.

Options available: Enable/Disable. Default setting is Enable.

Uncorrected Error

Enables and escalates Uncorrectable/Recoverable Errors to error pins.

Options available: Enable/Disable. Default setting is Enable.

Fatal Error Enable

Enables and escalates Fatal Errors to error pins.

Options available: Enable/Disable. Default setting is Enable.

SERR Propagation

Enable/Disable SERR propagation.

Options available: Enable/Disable. Default setting is Enable.

PERR Propagation

Enable/Disable PERR propagation.

Options available: Enable/Disable. Default setting is Enable.
