Gigabyte H261-3C0 (rev. 100) [102/123] Os wtd timer timeout
![Gigabyte H261-3C0 (rev. 100) [102/123] Os wtd timer timeout](/views2/1681256/page102/bg66.png)

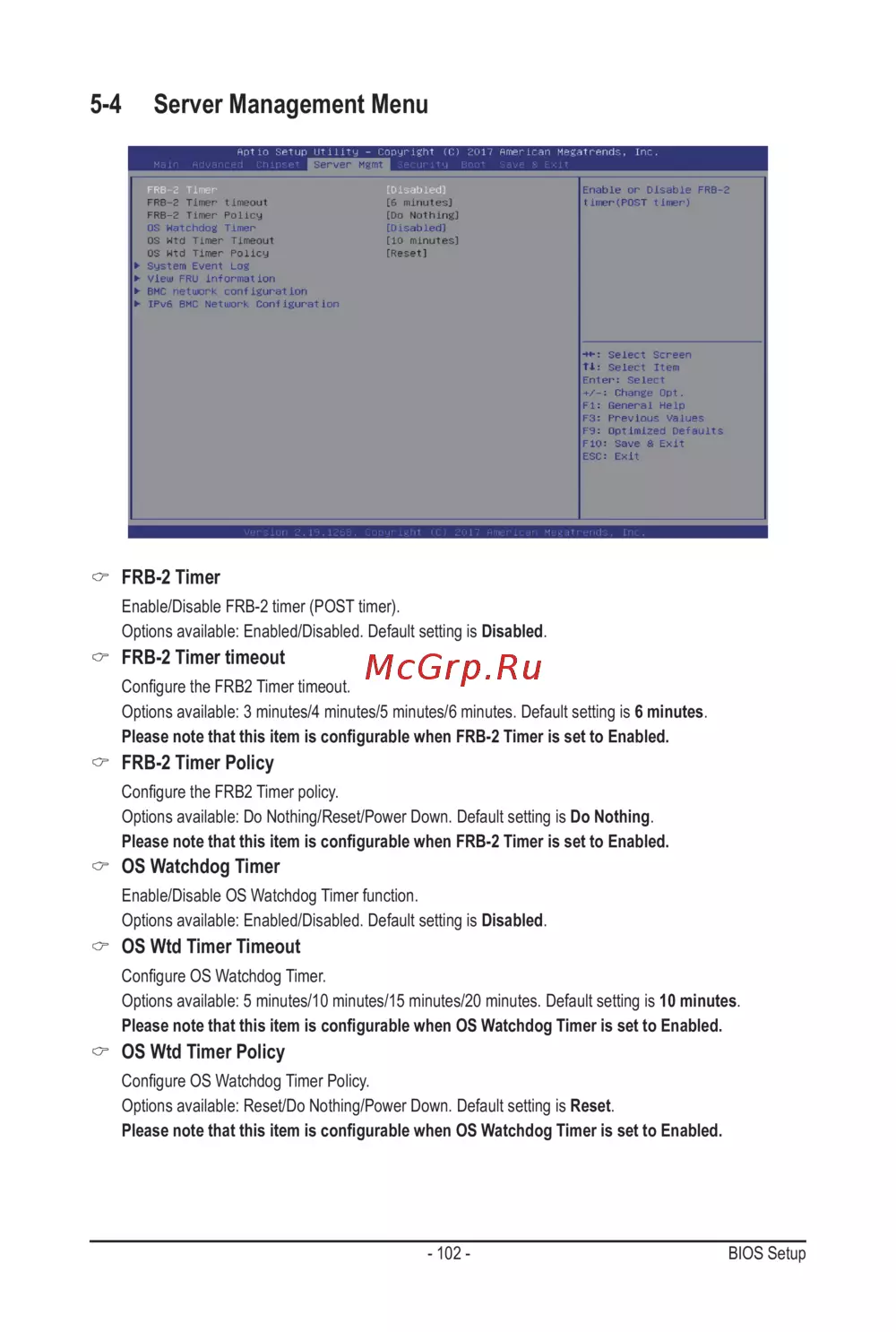

- 102 - BIOS Setup

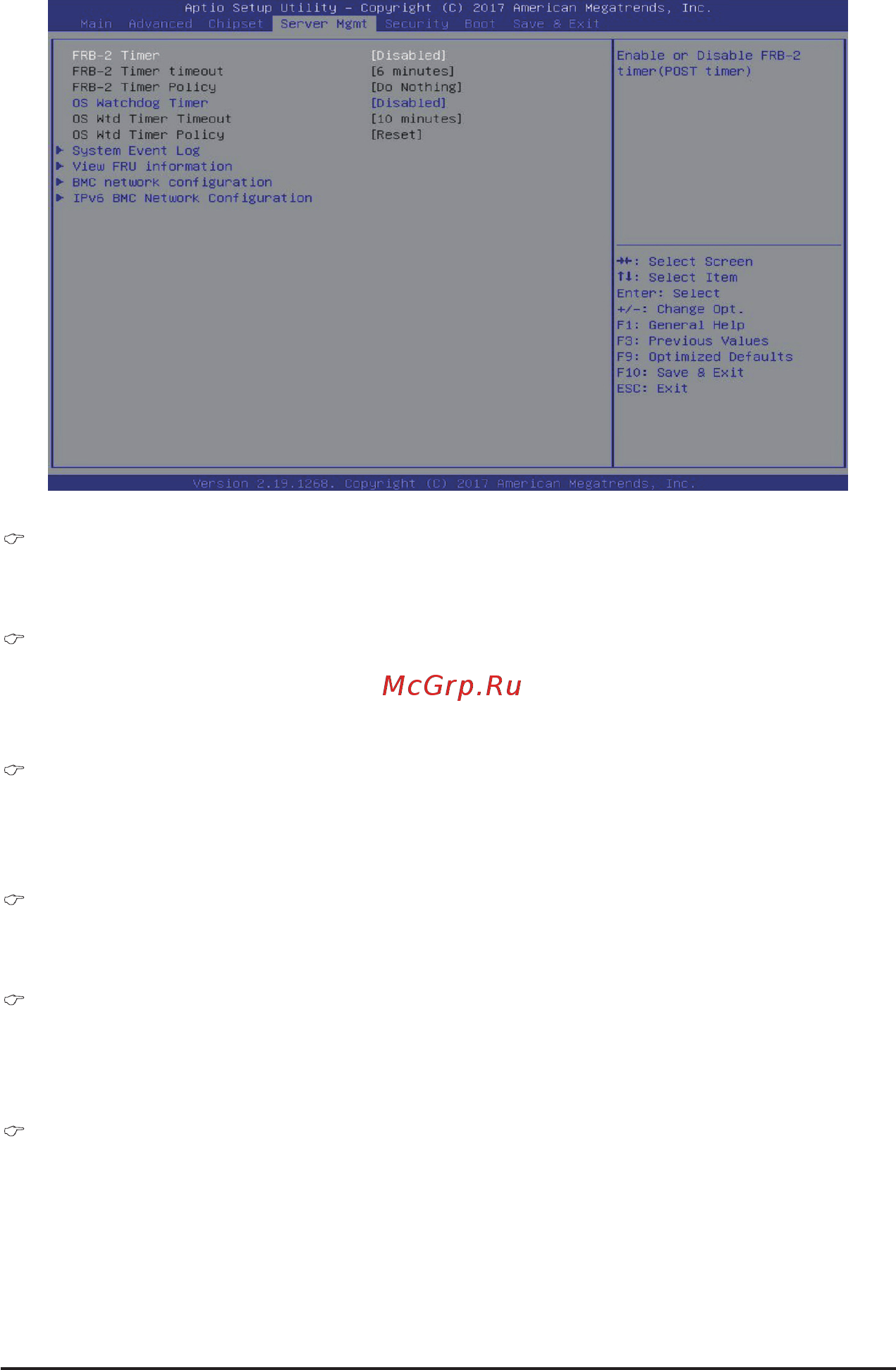

5-4 Server Management Menu
FRB-2 Timer
Enable/Disable FRB-2 timer (POST timer).
Options available: Enabled/Disabled. Default setting is Disabled.
FRB-2 Timer timeout
Congure the FRB2 Timer timeout.
Options available: 3 minutes/4 minutes/5 minutes/6 minutes. Default setting is 6 minutes.
PleasenotethatthisitemiscongurablewhenFRB-2TimerissettoEnabled.
FRB-2 Timer Policy
Congure the FRB2 Timer policy.
Options available: Do Nothing/Reset/Power Down. Default setting is Do Nothing.
PleasenotethatthisitemiscongurablewhenFRB-2TimerissettoEnabled.
OS Watchdog Timer
Enable/Disable OS Watchdog Timer function.
Options available: Enabled/Disabled. Default setting is Disabled.
OS Wtd Timer Timeout
Congure OS Watchdog Timer.
Options available: 5 minutes/10 minutes/15 minutes/20 minutes. Default setting is 10 minutes.
PleasenotethatthisitemiscongurablewhenOSWatchdogTimerissettoEnabled.
OS Wtd Timer Policy
Congure OS Watchdog Timer Policy.
Options available: Reset/Do Nothing/Power Down. Default setting is Reset.
PleasenotethatthisitemiscongurablewhenOSWatchdogTimerissettoEnabled.
