Gigabyte H261-3C0 (rev. 100) [103/123] View fru information

BIOS Setup - 103 -

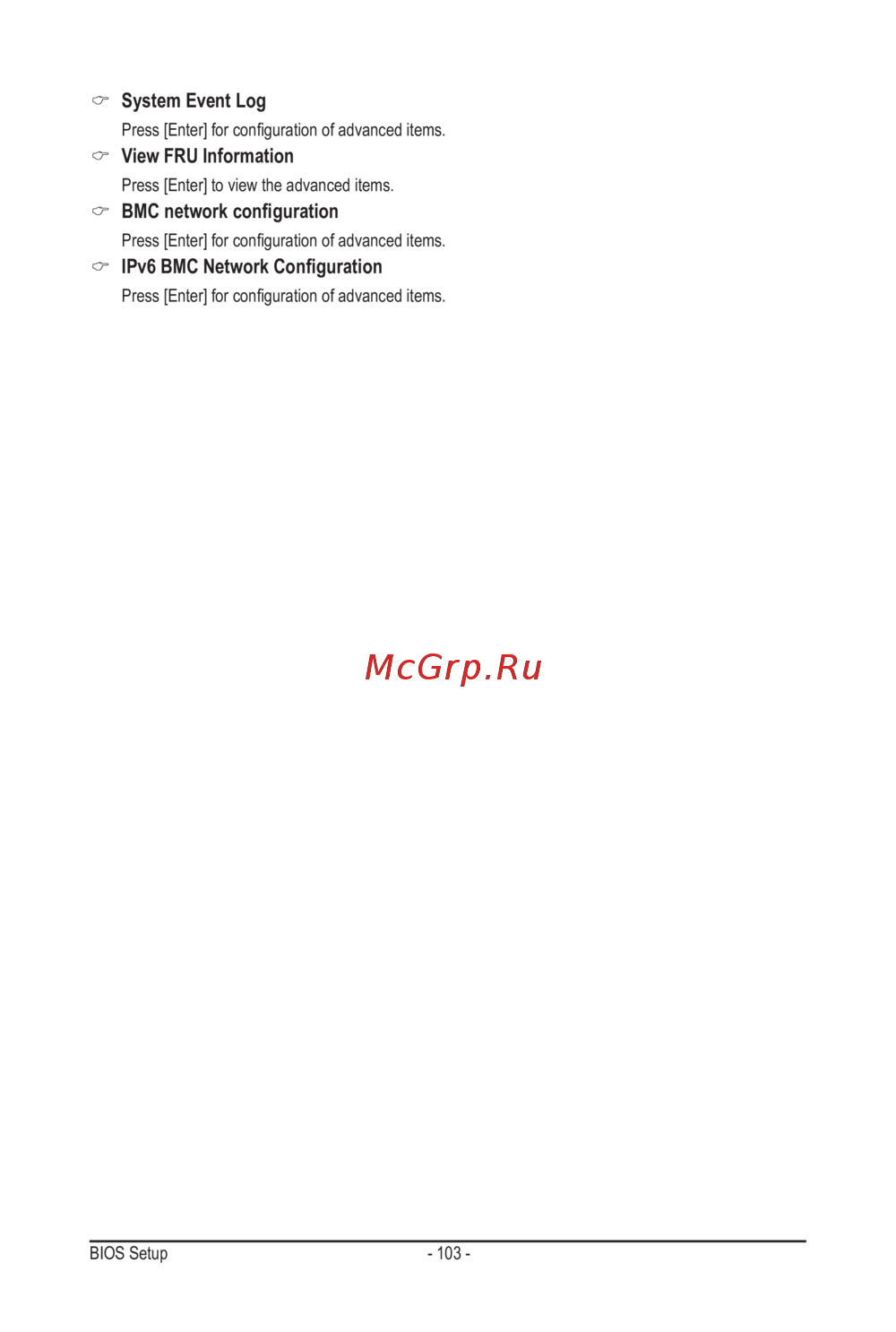

System Event Log

Press [Enter] for conguration of advanced items.

View FRU Information

Press [Enter] to view the advanced items.

 BMCnetworkconguration

Press [Enter] for conguration of advanced items.

 IPv6BMCNetworkConguration

Press [Enter] for conguration of advanced items.
