Gigabyte H261-3C0 (rev. 100) [105/123] 4 2 view fru information

BIOS Setup - 105 -

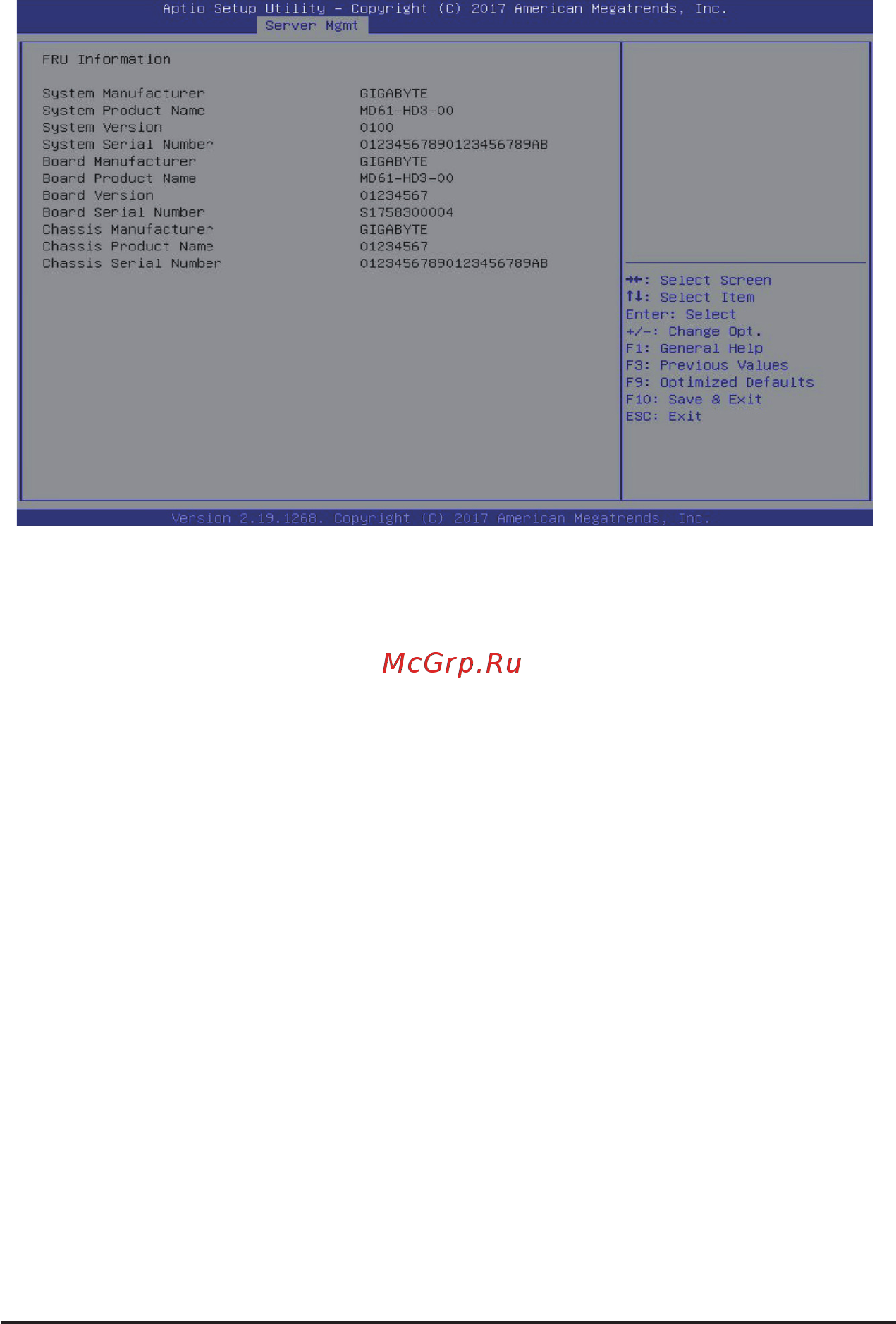

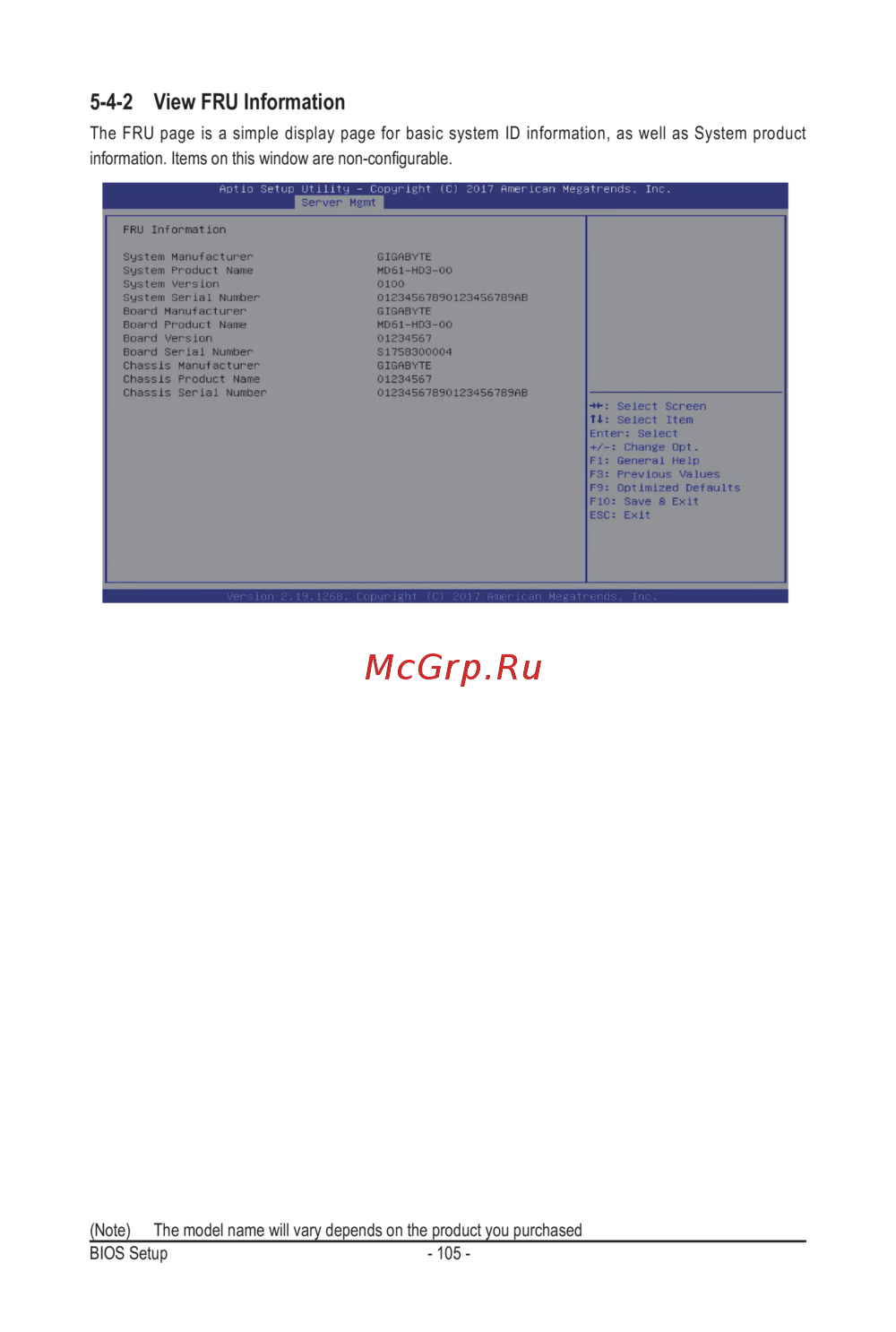

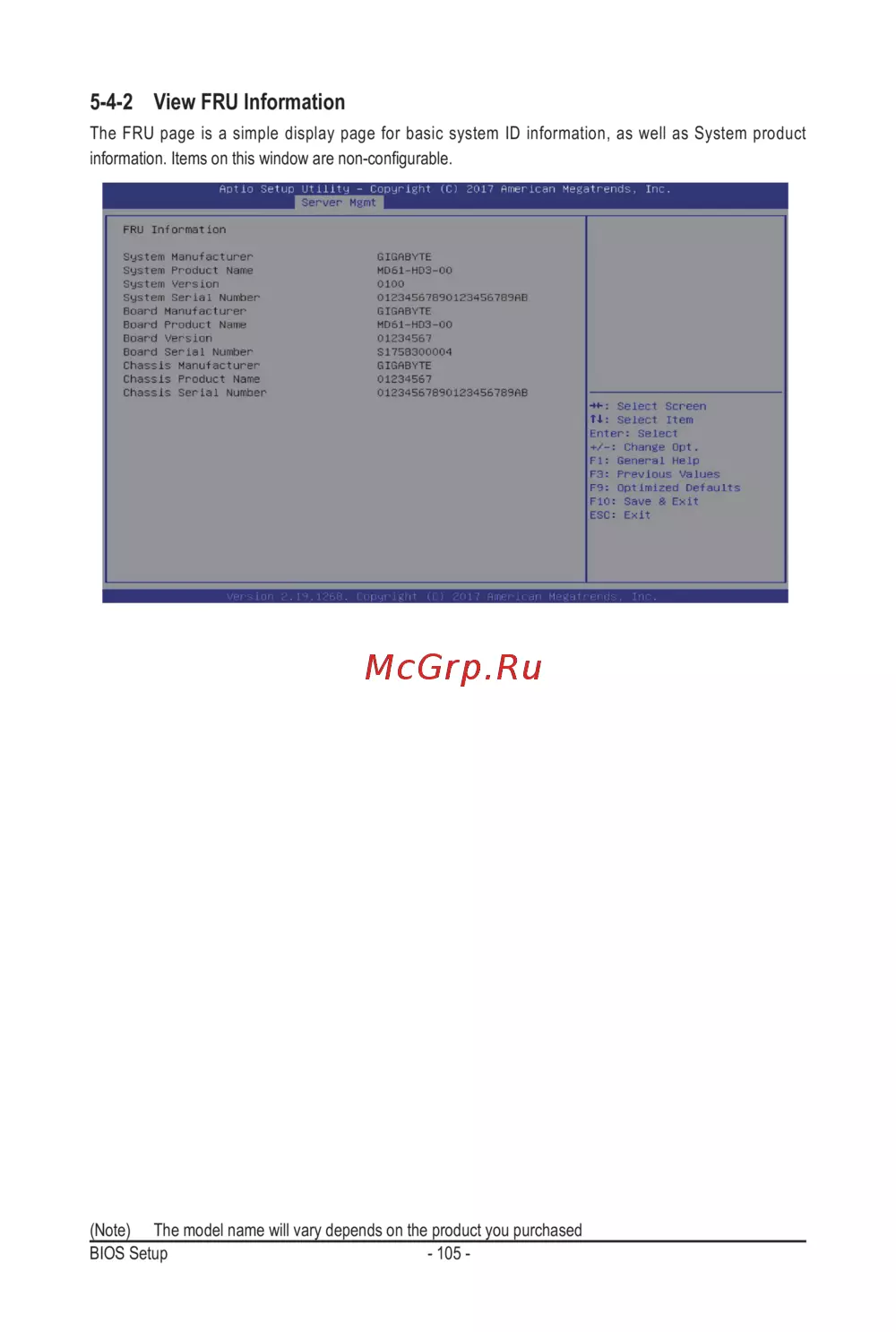

5-4-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product

information. Items on this window are non-congurable.

(Note) The model name will vary depends on the product you purchased
