Gigabyte H261-3C0 (rev. 100) [107/123] Ipv6 bmc lan ip address source

BIOS Setup - 107 -

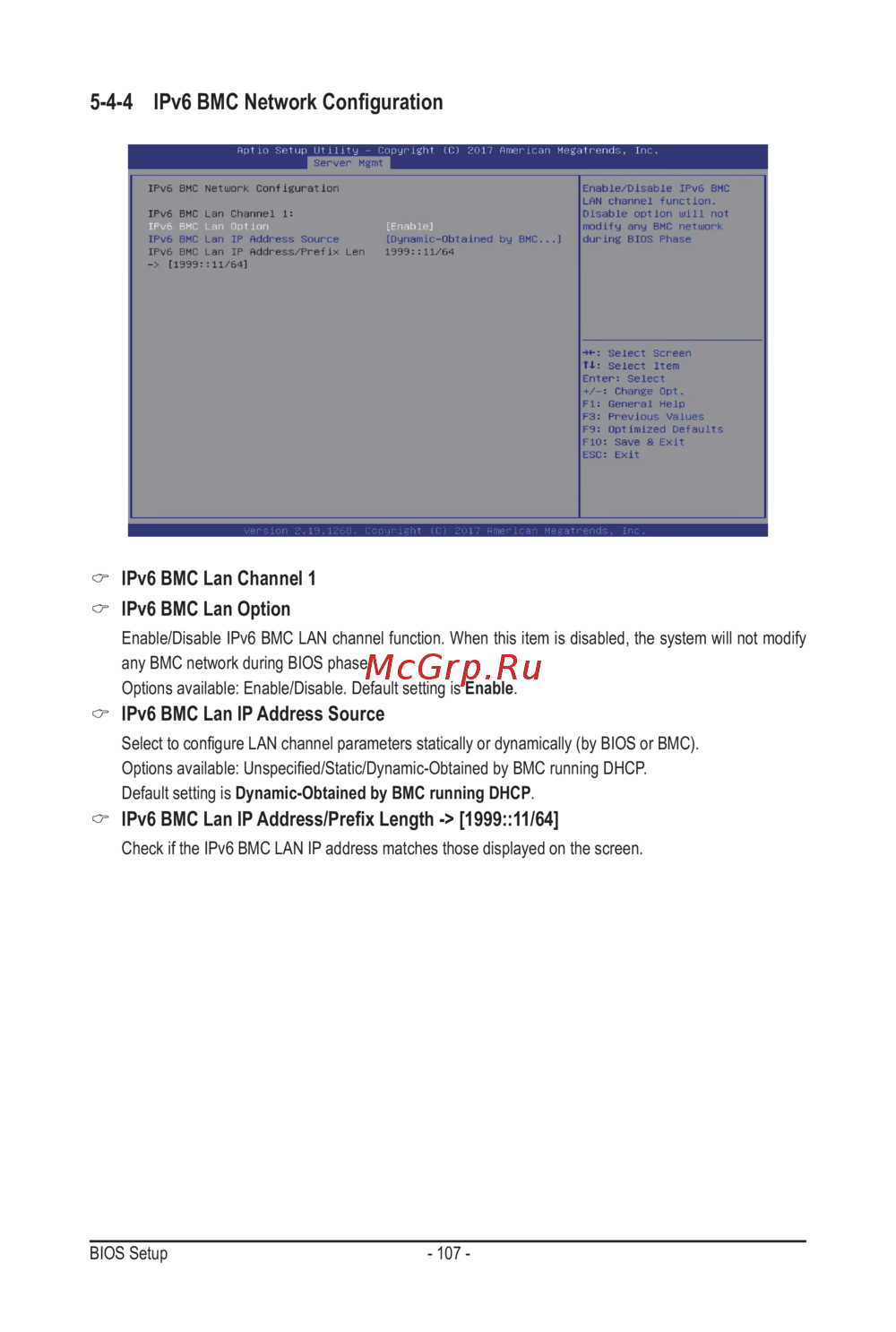

5-4-4 IPv6BMCNetworkConguration

IPv6 BMC Lan Channel 1

IPv6 BMC Lan Option

Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify

any BMC network during BIOS phase.

Options available: Enable/Disable. Default setting is Enable.

IPv6 BMC Lan IP Address Source

Select to congure LAN channel parameters statically or dynamically (by BIOS or BMC).

Options available: Unspecied/Static/Dynamic-Obtained by BMC running DHCP.

Default setting is Dynamic-Obtained by BMC running DHCP.

 IPv6BMCLanIPAddress/PrexLength->[1999::11/64]

Check if the IPv6 BMC LAN IP address matches those displayed on the screen.
