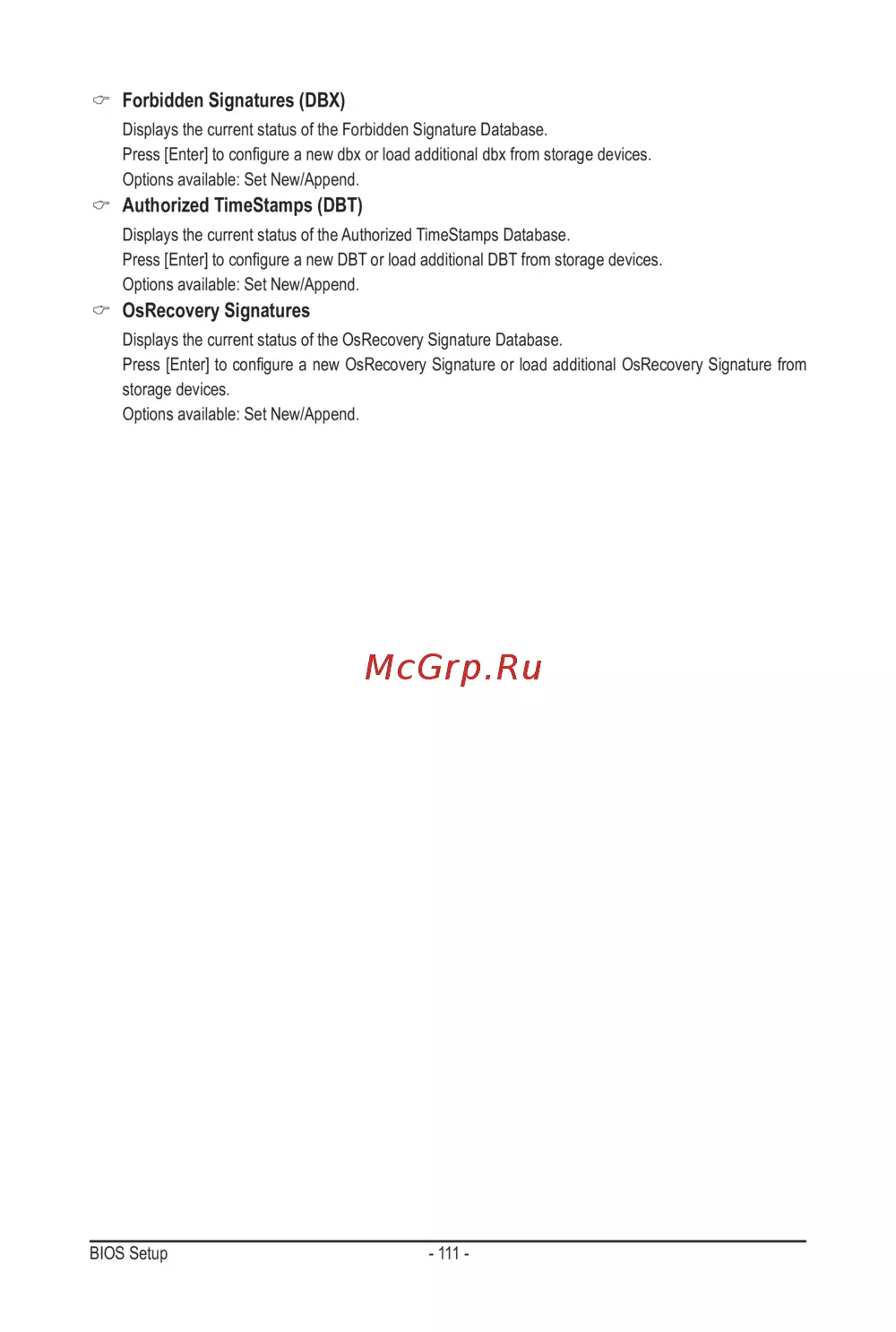

Gigabyte H261-3C0 (rev. 100) [111/123] Authorized timestamps dbt

BIOS Setup - 111 -

Forbidden Signatures (DBX)

Displays the current status of the Forbidden Signature Database.

Press [Enter] to congure a new dbx or load additional dbx from storage devices.

Options available: Set New/Append.

Authorized TimeStamps (DBT)

Displays the current status of the Authorized TimeStamps Database.

Press [Enter] to congure a new DBT or load additional DBT from storage devices.

Options available: Set New/Append.

OsRecovery Signatures

Displays the current status of the OsRecovery Signature Database.

Press [Enter] to congure a new OsRecovery Signature or load additional OsRecovery Signature from

storage devices.

Options available: Set New/Append.
