- 114 - BIOS Setup

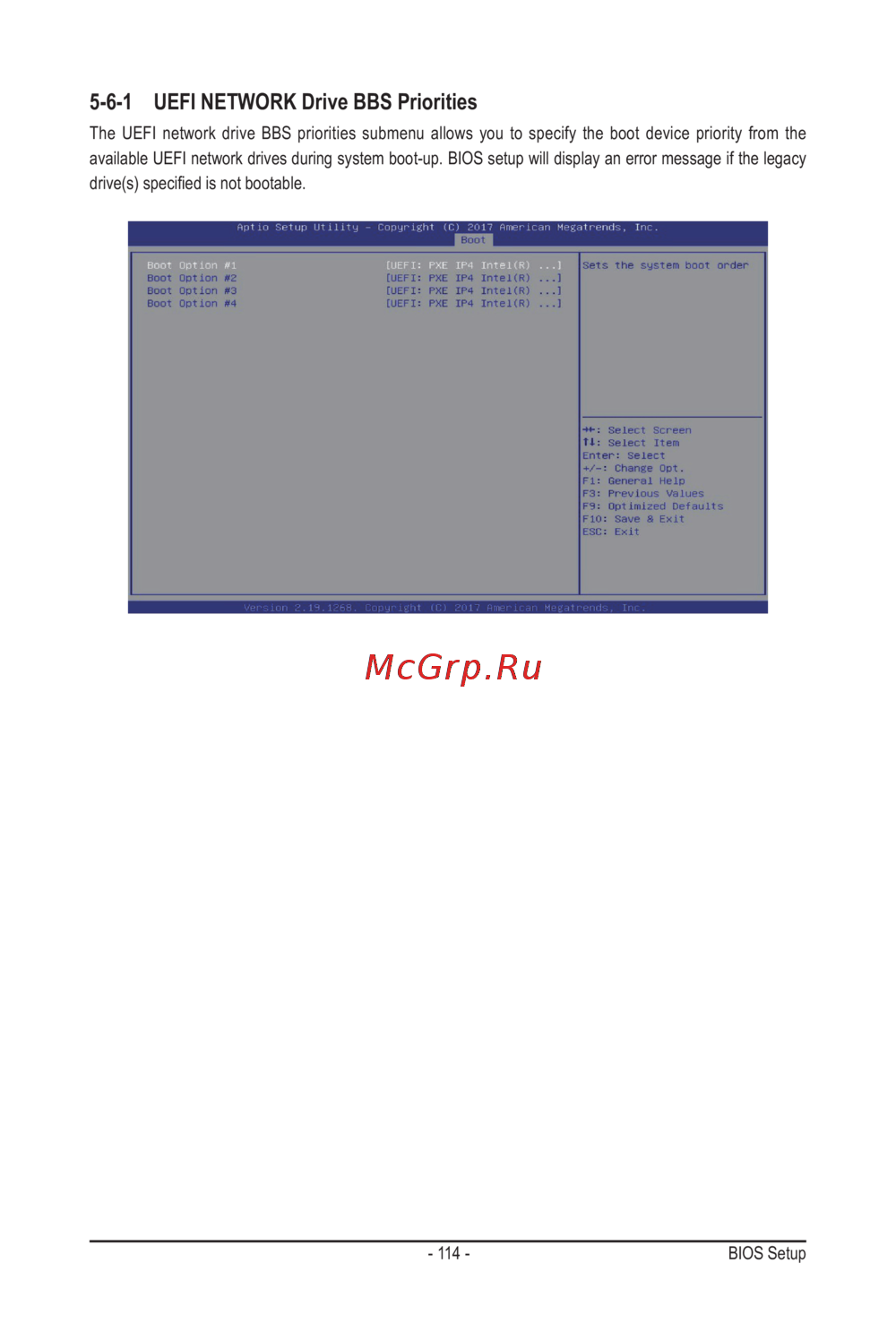

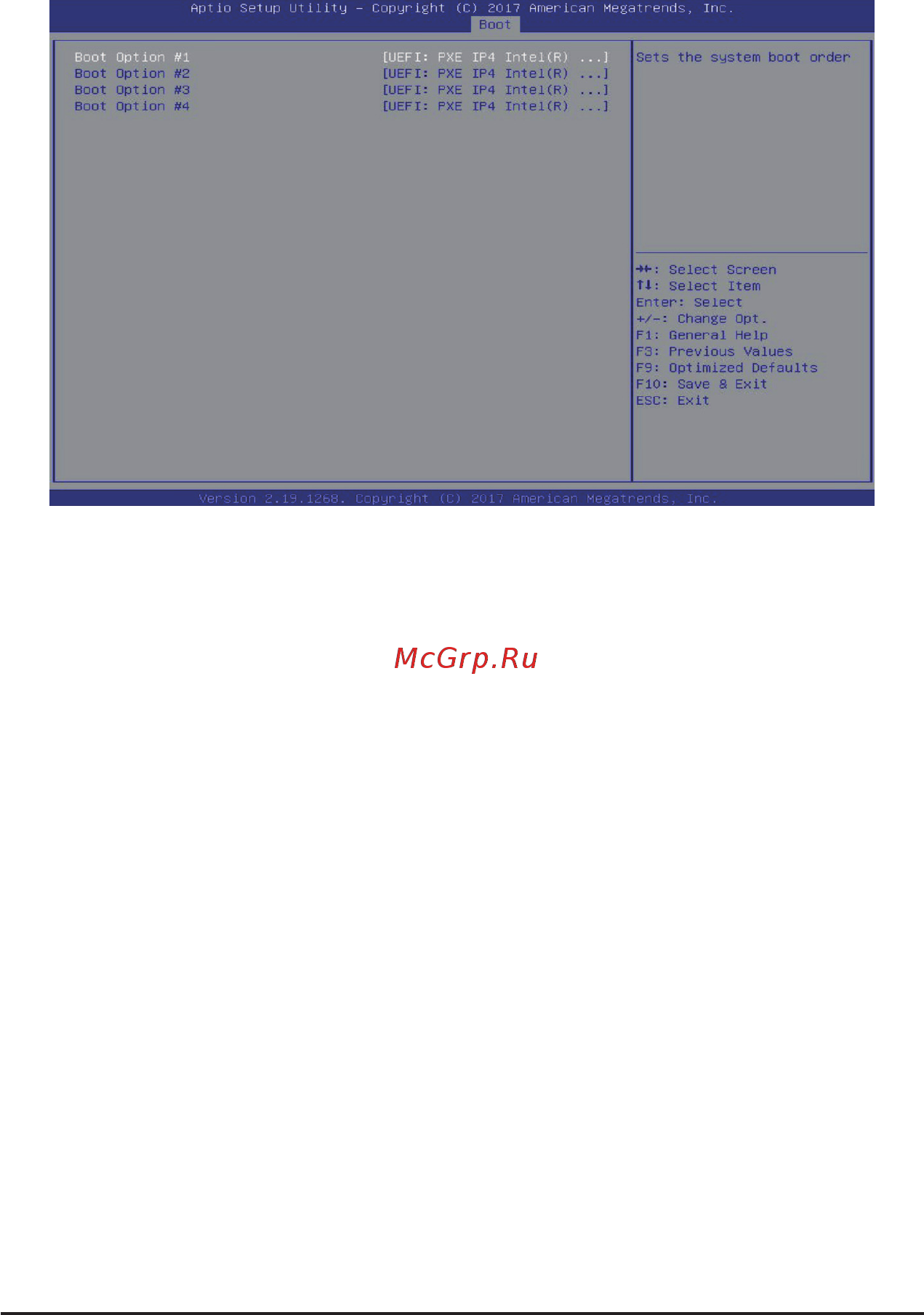

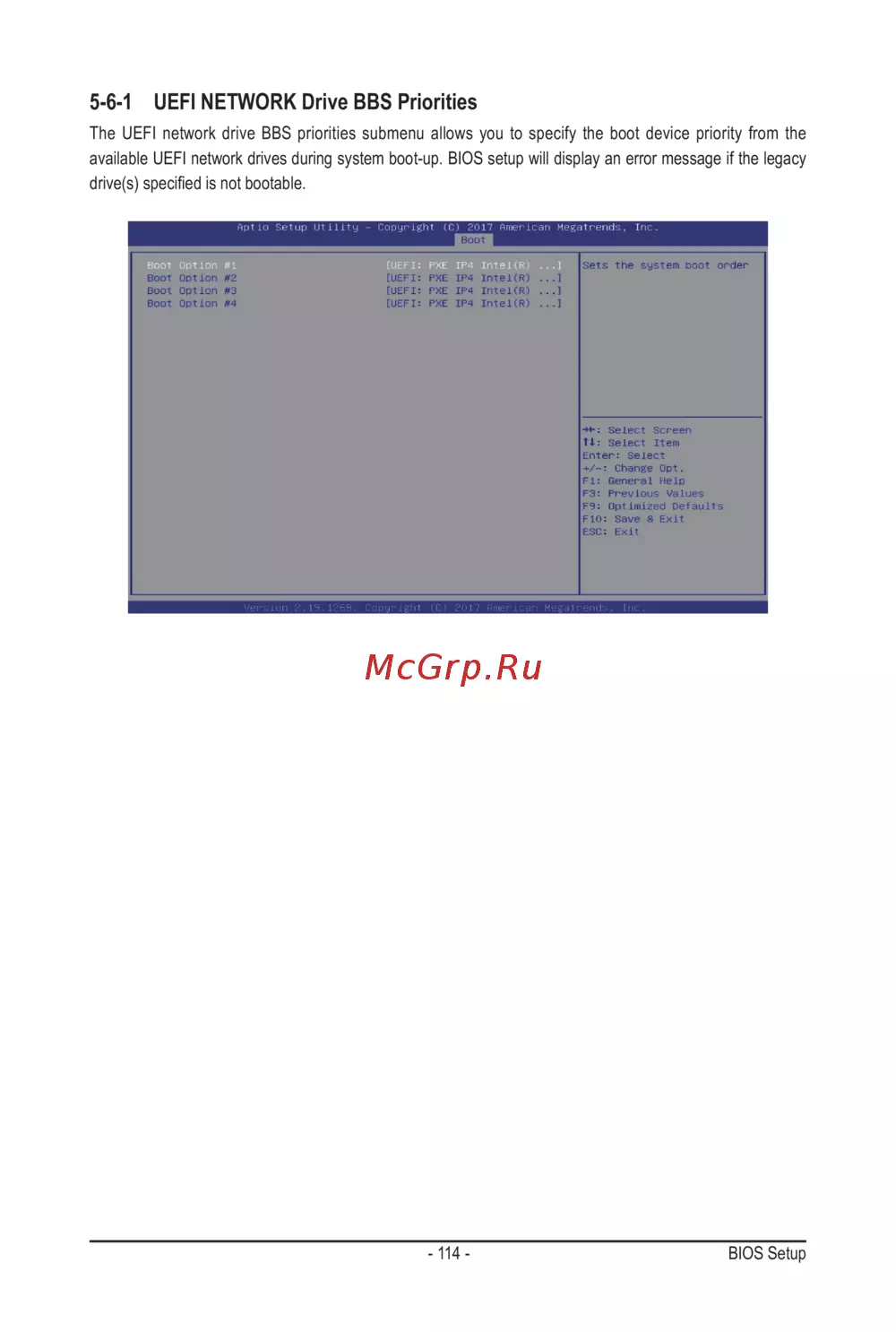

5-6-1 UEFI NETWORK Drive BBS Priorities

The UEFI network drive BBS priorities submenu allows you to specify the boot device priority from the

available UEFI network drives during system boot-up. BIOS setup will display an error message if the legacy

drive(s) specied is not bootable.
