Gigabyte H261-3C0 (rev. 100) [115/123] 6 2 uefi application boot priorities

BIOS Setup - 115 -

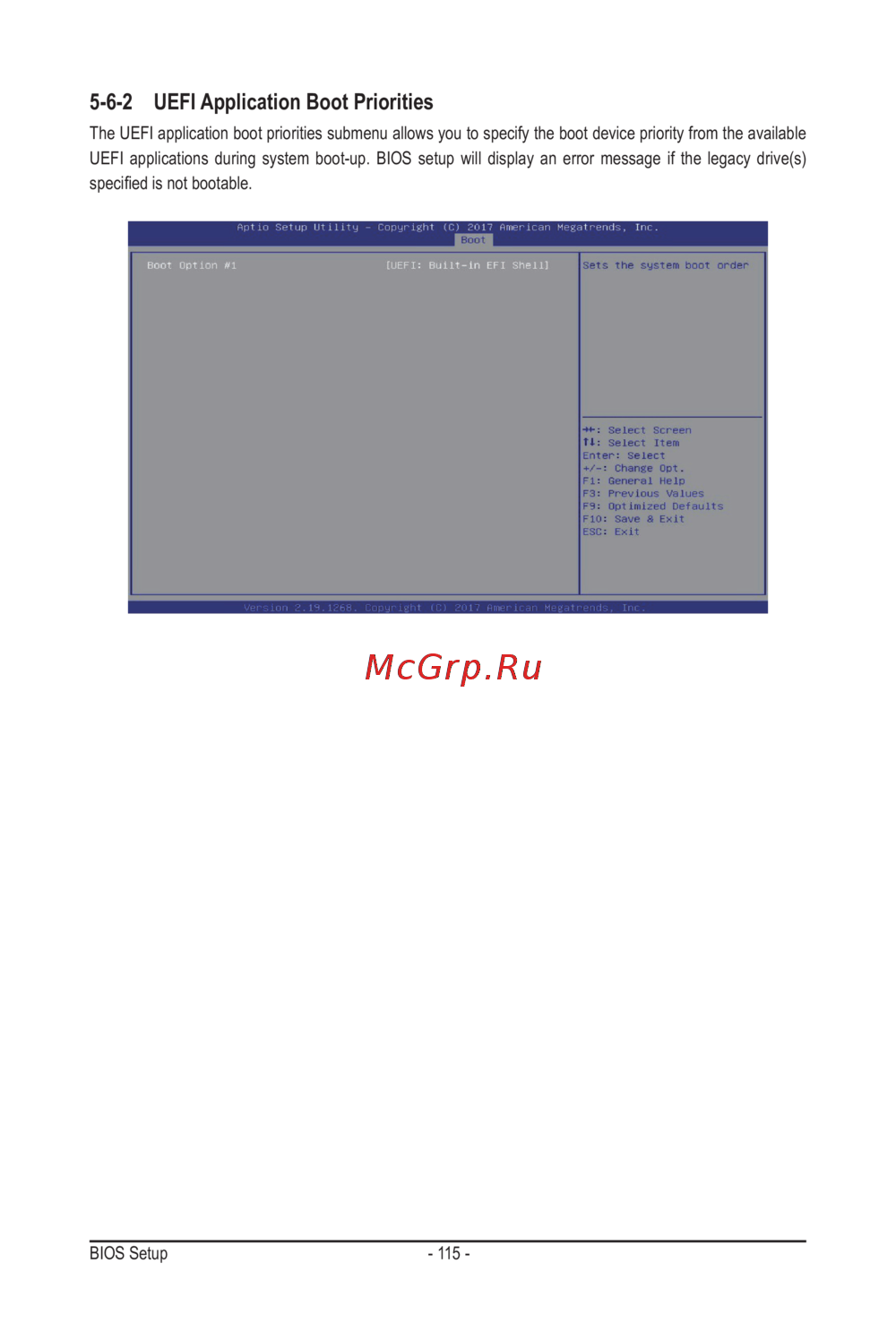

5-6-2 UEFI Application Boot Priorities

The UEFI application boot priorities submenu allows you to specify the boot device priority from the available

UEFI applications during system boot-up. BIOS setup will display an error message if the legacy drive(s)

specied is not bootable.
