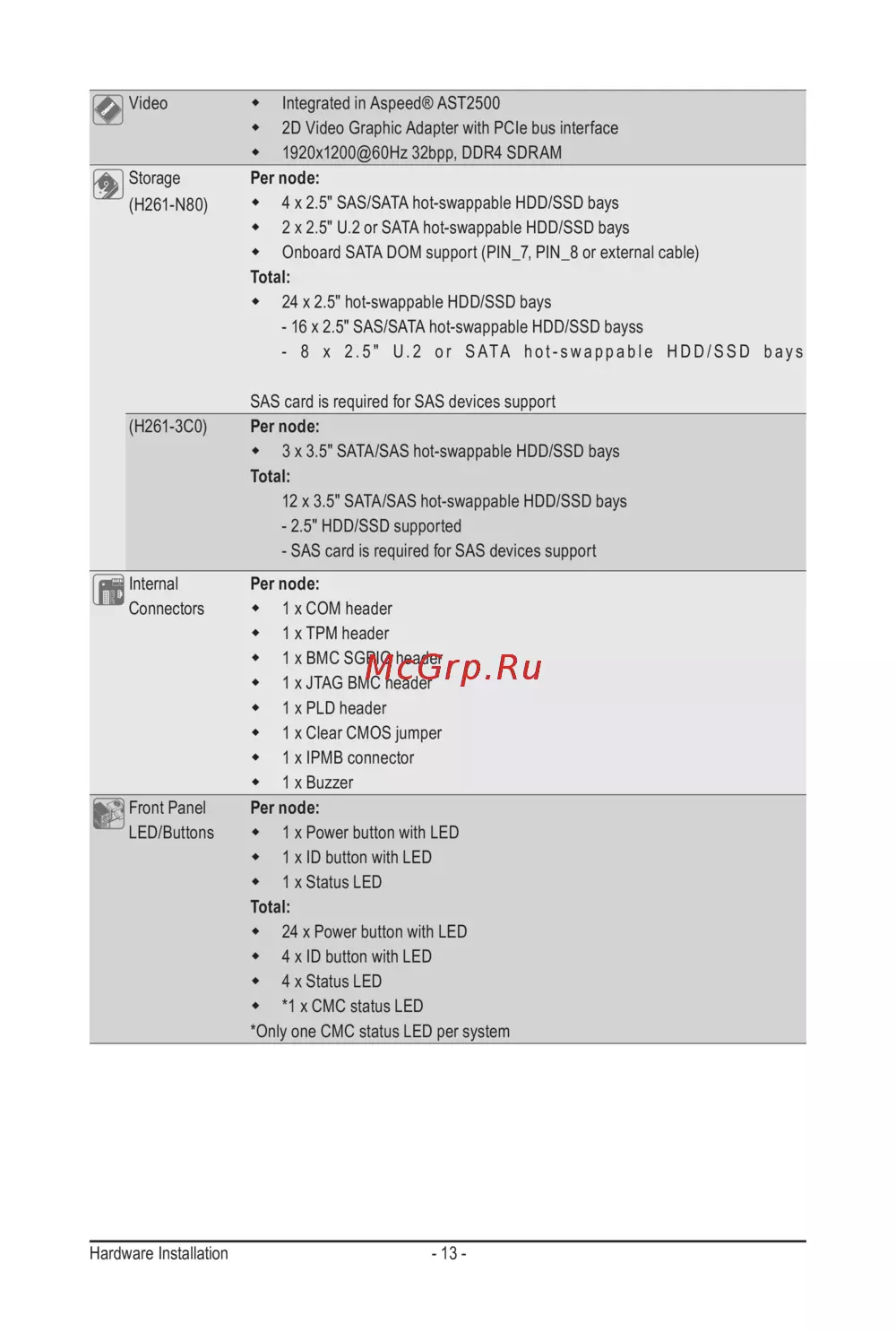

Hardware Installation - 13 -
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
(H261-N80)
Per node:
4 x 2.5" SAS/SATA hot-swappable HDD/SSD bays
2 x 2.5" U.2 or SATA hot-swappable HDD/SSD bays
Onboard SATA DOM support (PIN_7, PIN_8 or external cable)
Total:
24 x 2.5" hot-swappable HDD/SSD bays
- 16 x 2.5" SAS/SATA hot-swappable HDD/SSD bayss
- 8 x 2.5" U.2 or SATA hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
(H261-3C0) Per node:
3 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
Total:
12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
- 2.5" HDD/SSD supported
- SAS card is required for SAS devices support
Internal
Connectors
Per node:
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
1 x Buzzer
Front Panel
LED/Buttons
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
24 x Power button with LED
4 x ID button with LED
4 x Status LED
*1 x CMC status LED
*Only one CMC status LED per system
