Gigabyte H261-3C0 (rev. 100) [16/123] Skylake sp

- 16 - Hardware Installation

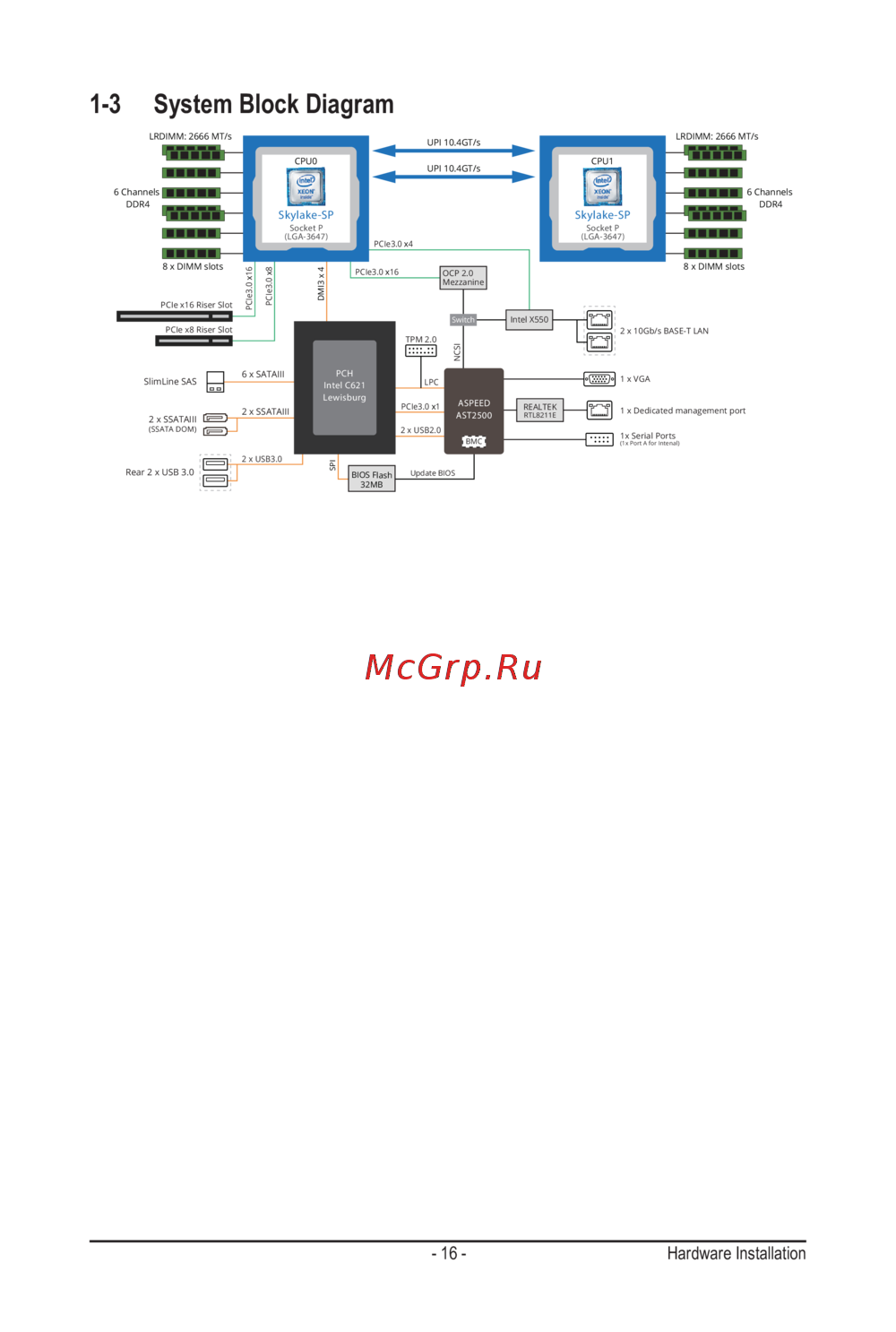

1-3 System Block Diagram

LRDIMM: 2666 MT/s LRDIMM: 2666 MT/s

6 Channels

DDR4

6 Channels

DDR4

8 x DIMM slots

DMI3 x 4

UPI 10.4GT/s

2A~2D

PCIe3.0

OCP 2.0

Mezzanine

PCIe3.0

2 x USB2.0

2 x USB3.0

LPC

Update BIOS

Intel X550

2 x SSATAIII

(SSATA DOM)

2 x SSATAIII

PCIe x8 Riser Slot

PCIe x16 Riser Slot

Skylake-SP

Socket P

(LGA-3647)

CPU0

Skylake-SP

Socket P

(LGA-3647)

CPU1

6 x SATAIII

SlimLine SAS

Switch

NCSI

2 x 10Gb/s BASE-T LAN

1 x Dedicated management port

TPM 2.0

BIOS Flash

32MB

SPI

PCH

Intel C621

Lewisburg

1 x VGA

ASPEED

AST2500

BMC

Rear 2 x USB 3.0

REALTEK

RTL8211E

1x Serial Ports

(1x Port A for Intenal)
