- 17 - Hardware Installation

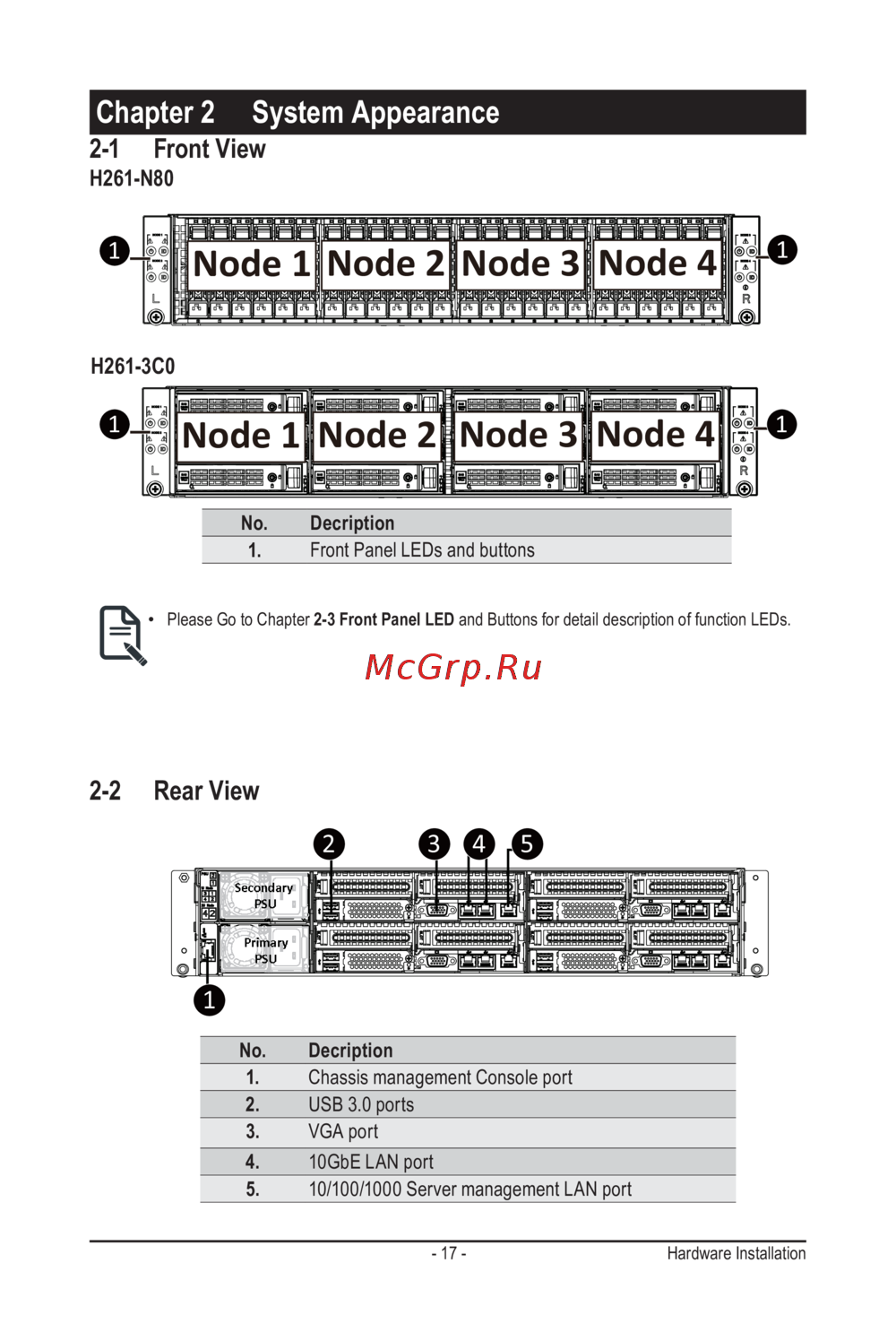

Chapter 2 System Appearance

2-1 Front View

No. Decription

Front Panel LEDs and buttons

• Please Go to Chapter 2-3 Front Panel LED and Buttons for detail description of function LEDs.

2-2 Rear View

No. Decription

1. Chassis management Console port

2. USB 3.0 ports

3. VGA port

4. 10GbE LAN port

5. 10/100/1000 Server management LAN port

Primary

PSU

Secondary

PSU

2 3 4 5

1 1

Node 1

Node 2

Node 3

Node 4

Node 1

Node 2

Node 3

Node 4

H261-N80

H261-3C0
