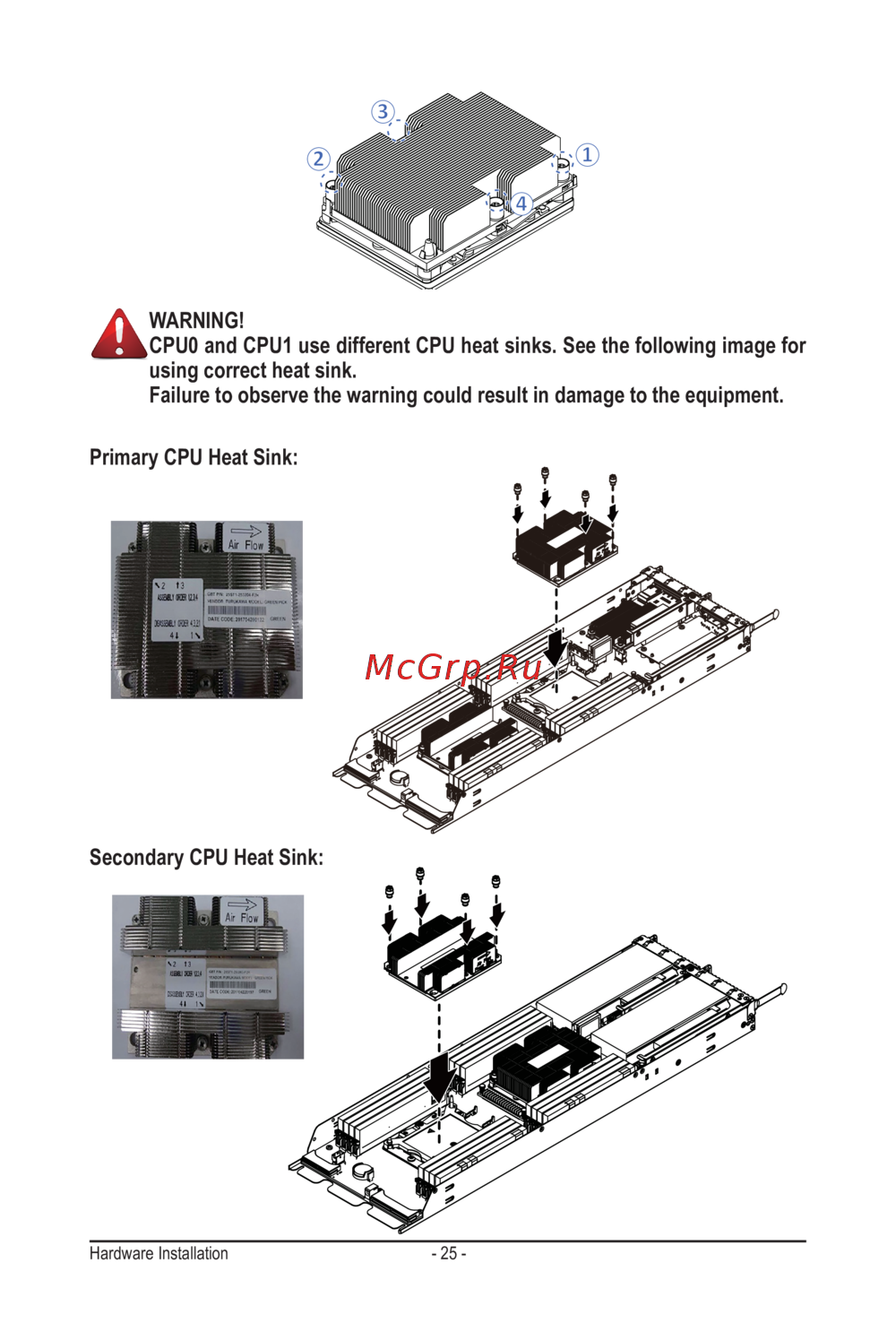

Hardware Installation - 25 -

Primary CPU Heat Sink:

WARNING!

CPU0 and CPU1 use different CPU heat sinks. See the following image for

using correct heat sink.

Failure to observe the warning could result in damage to the equipment.

Secondary CPU Heat Sink:
