Hardware Installation - 28 -

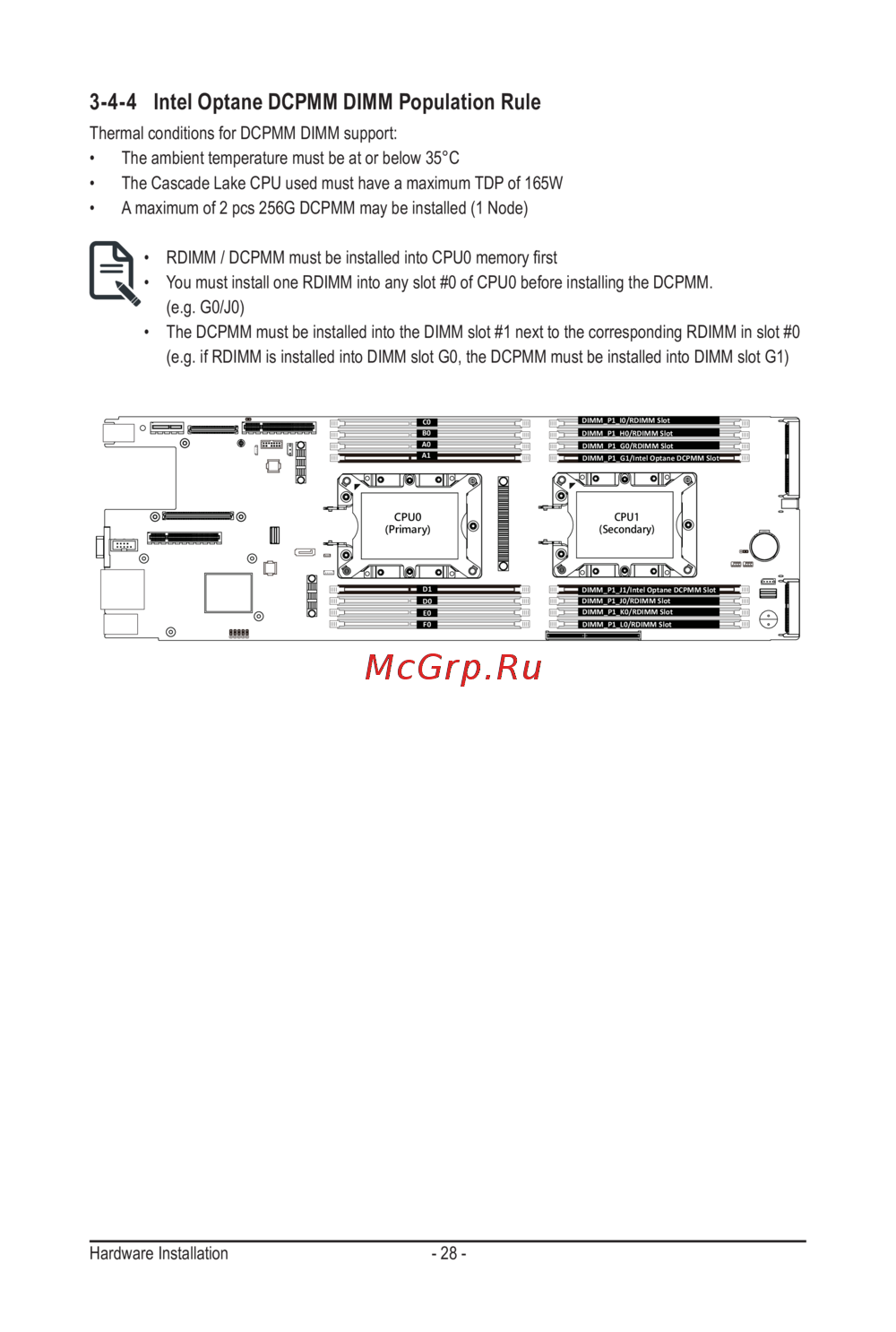

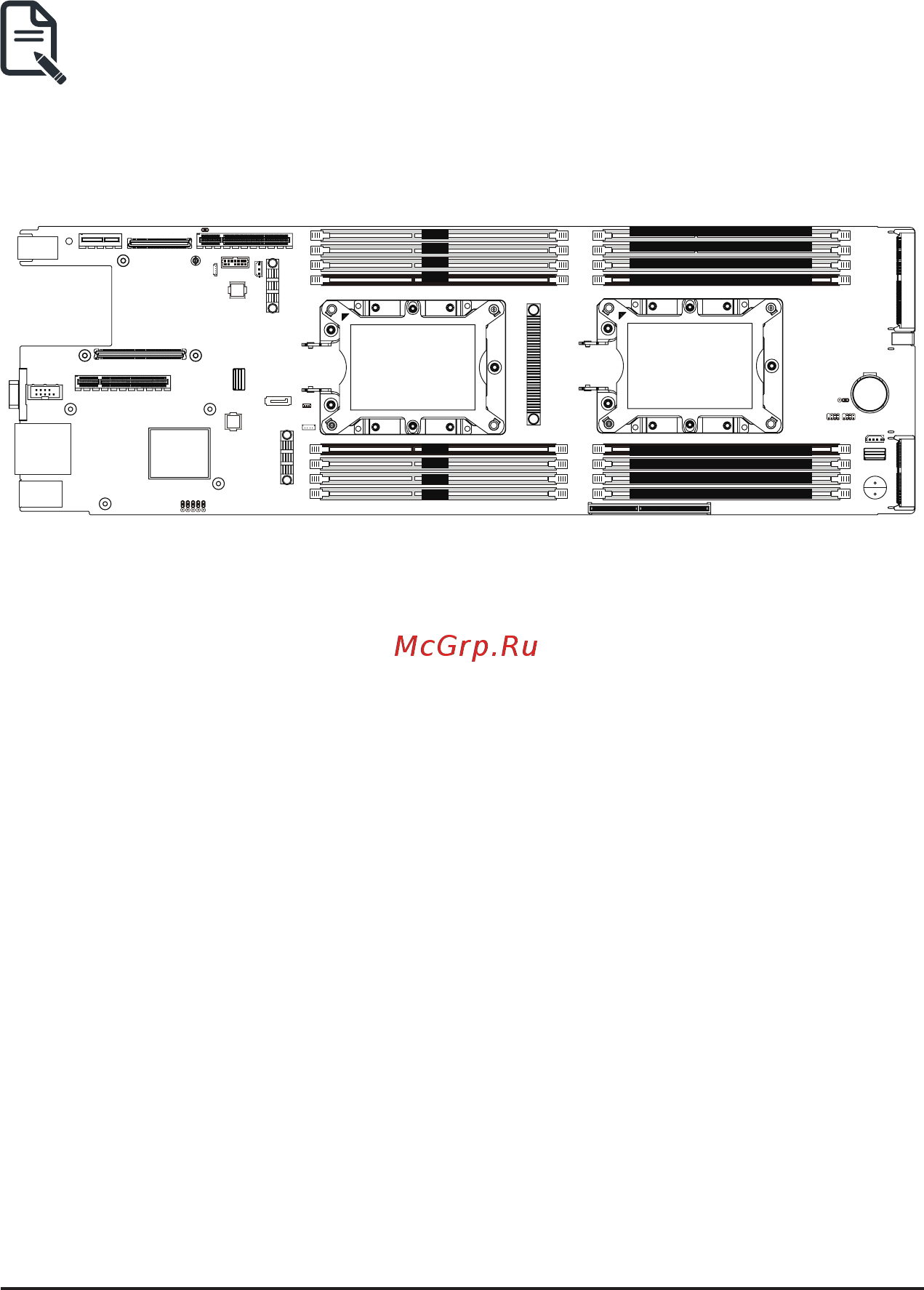

3-4-4 Intel Optane DCPMM DIMM Population Rule
Thermal conditions for DCPMM DIMM support:
• The ambient temperature must be at or below 35°C
• The Cascade Lake CPU used must have a maximum TDP of 165W
• A maximum of 2 pcs 256G DCPMM may be installed (1 Node)
• RDIMM / DCPMM must be installed into CPU0 memory rst
• You must install one RDIMM into any slot #0 of CPU0 before installing the DCPMM.
(e.g. G0/J0)
• The DCPMM must be installed into the DIMM slot #1 next to the corresponding RDIMM in slot #0
(e.g. if RDIMM is installed into DIMM slot G0, the DCPMM must be installed into DIMM slot G1)
F0
E0
D0
D1
A1
A0
B0
C0
DIMM_P1_G1/Intel Optane DCPMM Slot
DIMM_P1_G0/RDIMM Slot
DIMM_P1_H0/RDIMM Slot
DIMM_P1_I0/RDIMM Slot
DIMM_P1_L0/RDIMM Slot
DIMM_P1_K0/RDIMM Slot
DIMM_P1_J0/RDIMM Slot
DIMM_P1_J1/Intel Optane DCPMM Slot
CPU1
(Secondary)
&38
3ULPDU\
