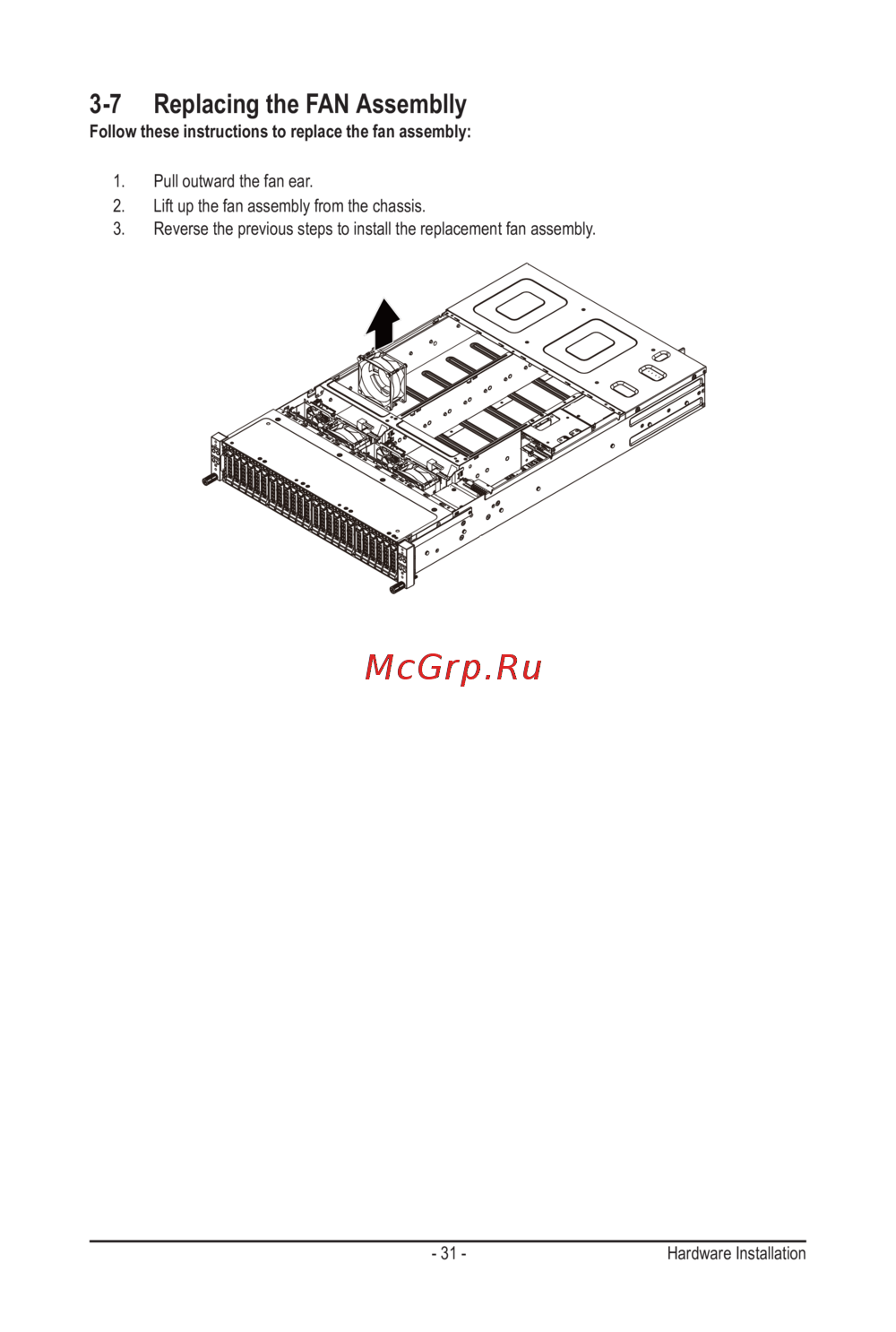

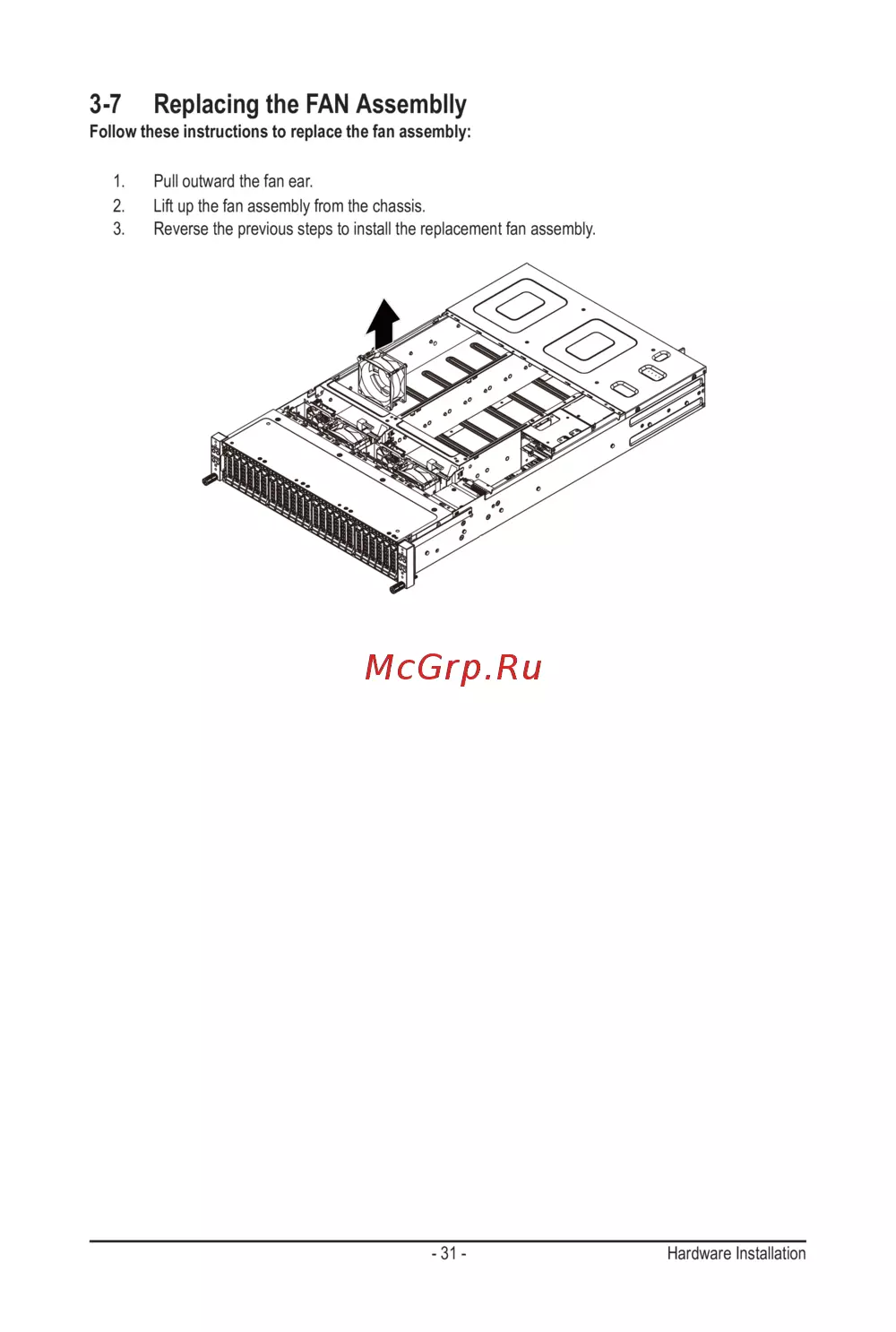

Gigabyte H261-3C0 (rev. 100) [31/123] 7 replacing the fan assemblly

- 31 - Hardware Installation

3-7 Replacing the FAN Assemblly

Follow these instructions to replace the fan assembly:

1. Pull outward the fan ear.

2. Lift up the fan assembly from the chassis.

3. Reverse the previous steps to install the replacement fan assembly.
