Hardware Installation - 34 -

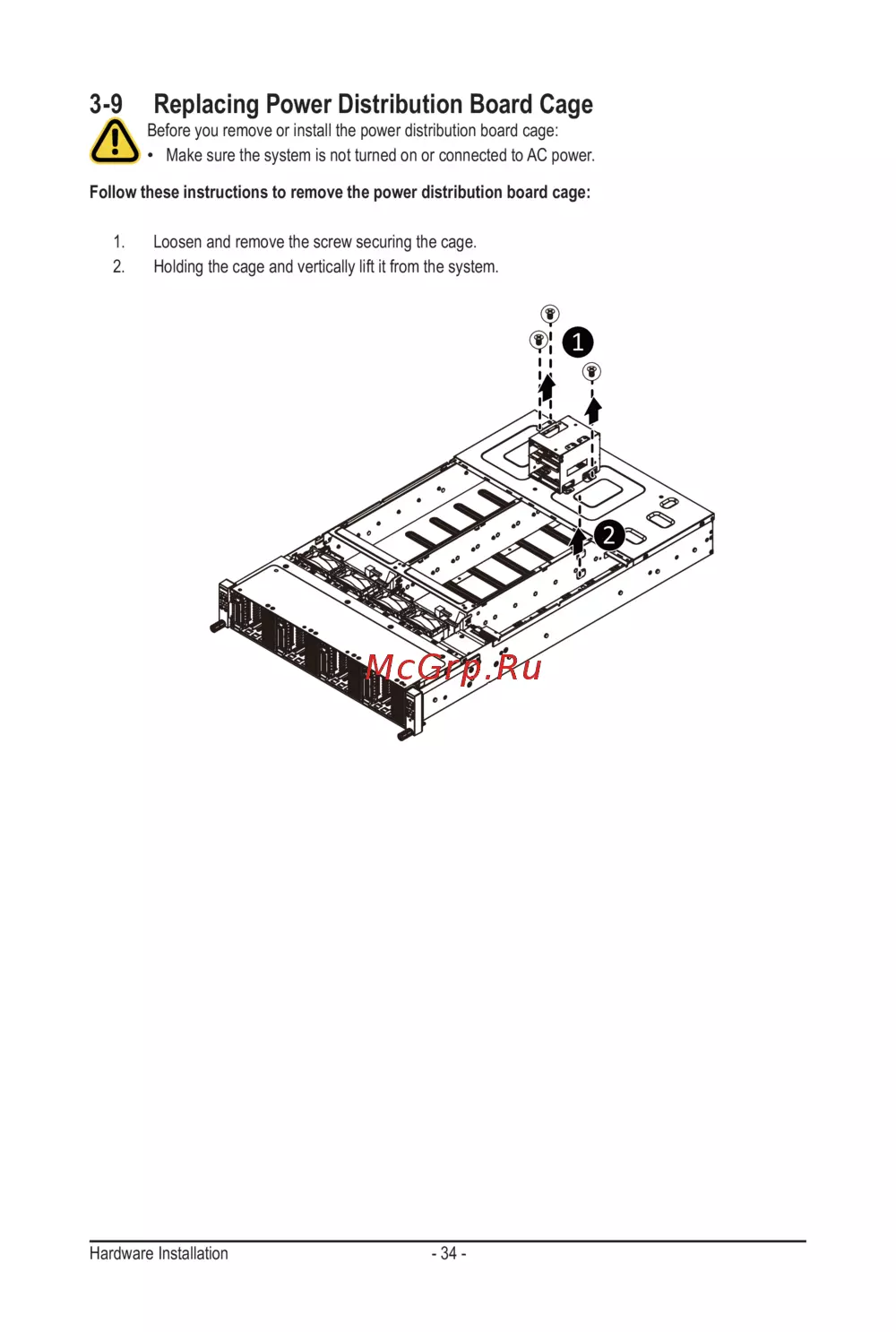

3-9 Replacing Power Distribution Board Cage

Before you remove or install the power distribution board cage:

• Make sure the system is not turned on or connected to AC power.

Follow these instructions to remove the power distribution board cage:

1. Loosen and remove the screw securing the cage.

2. Holding the cage and vertically lift it from the system.
