- 35 - Hardware Installation

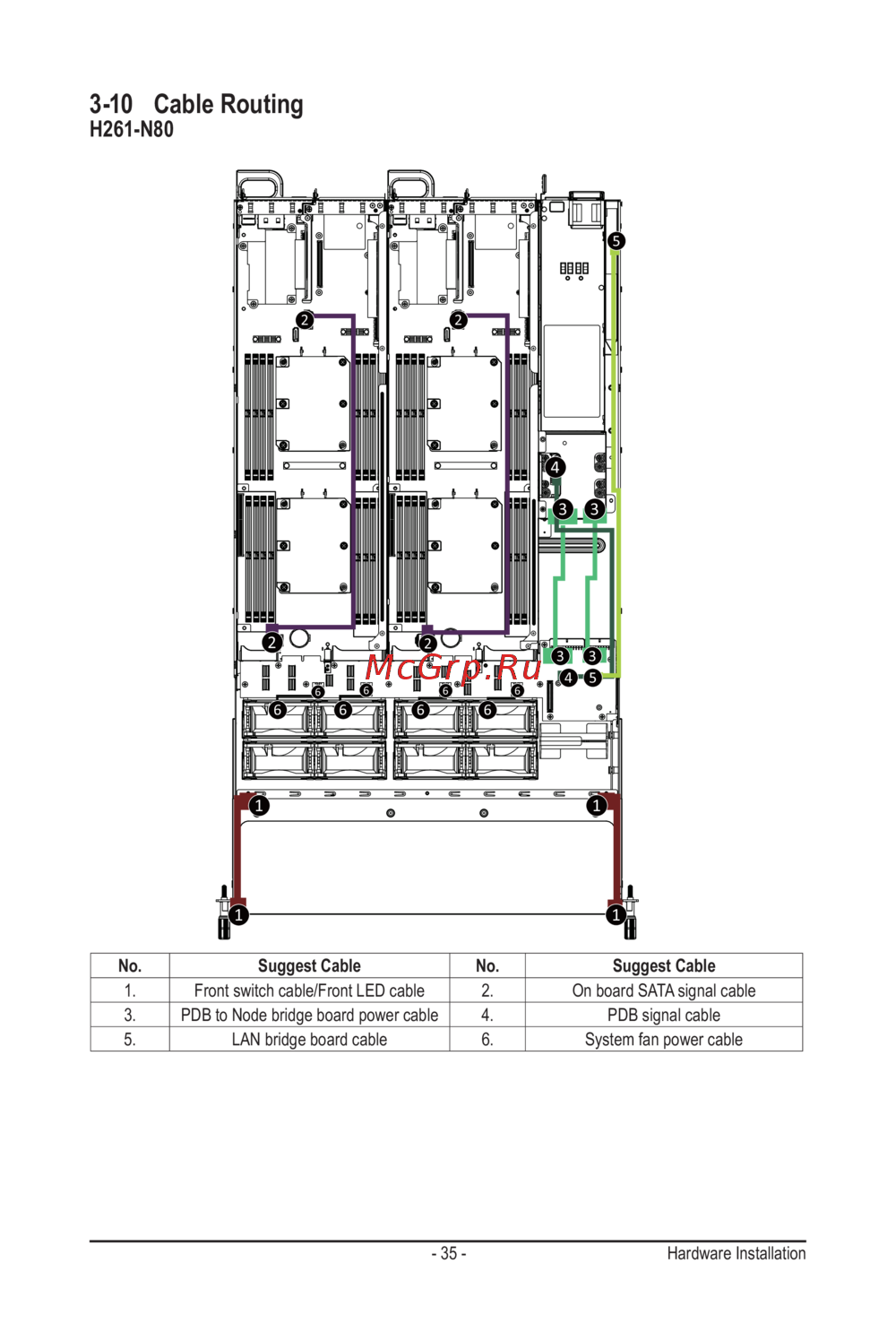

3-10 Cable Routing

H261-N80

3 3

6 6 6 6

3 3

No. Suggest Cable No. Suggest Cable

1. Front switch cable/Front LED cable 2. On board SATA signal cable

3. PDB to Node bridge board power cable 4. PDB signal cable

5. LAN bridge board cable 6. System fan power cable
