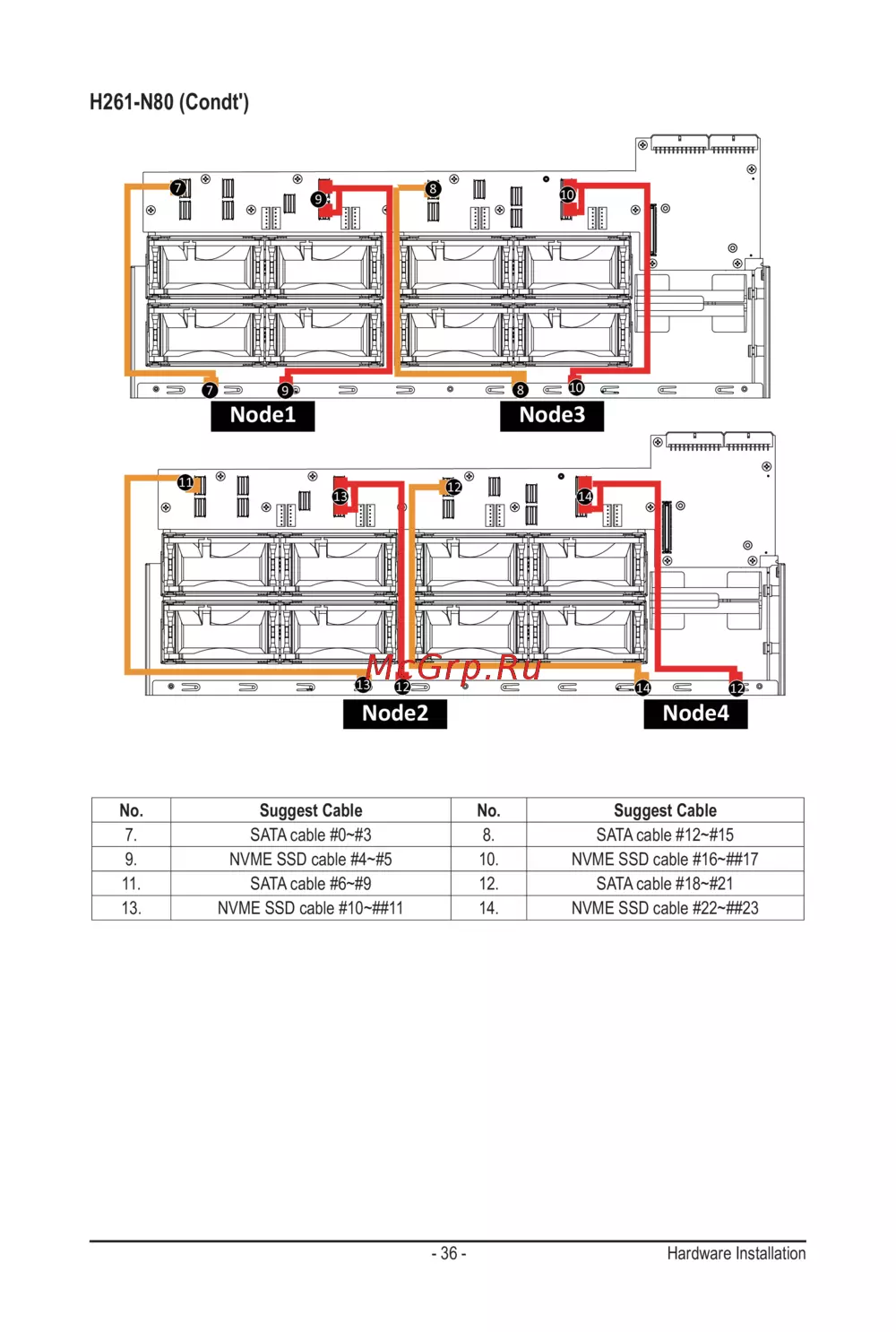

Gigabyte H261-3C0 (rev. 100) [36/123] Node2 node4

- 36 - Hardware Installation

Node1 Node3

Node2 Node4

H261-N80 (Condt')

No. Suggest Cable No. Suggest Cable

7. SATA cable #0~#3 8. SATA cable #12~#15

9. NVME SSD cable #4~#5 10. NVME SSD cable #16~##17

11. SATA cable #6~#9 12. SATA cable #18~#21

13. NVME SSD cable #10~##11 14. NVME SSD cable #22~##23
