Gigabyte H261-3C0 (rev. 100) [37/123] H261 3c0

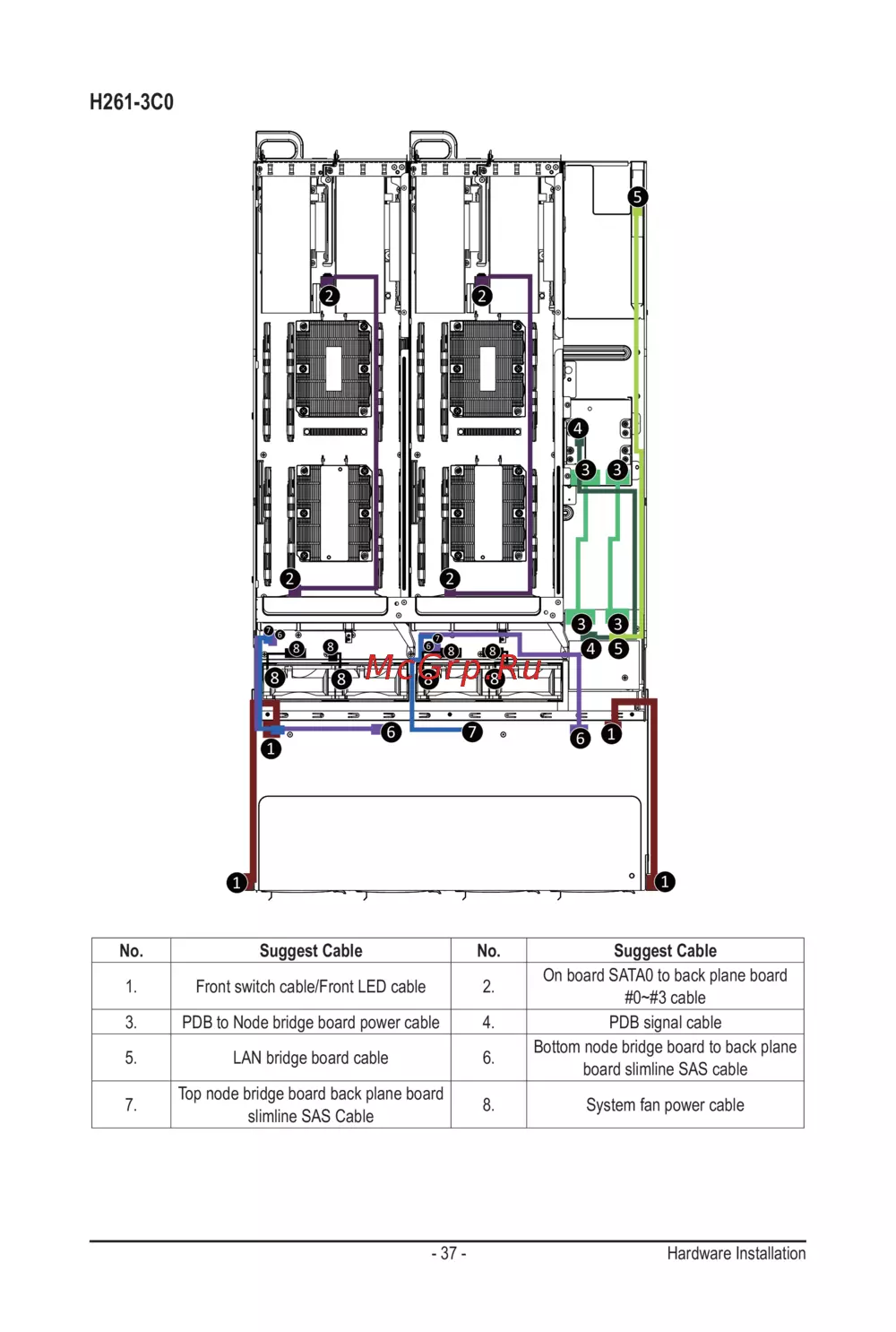

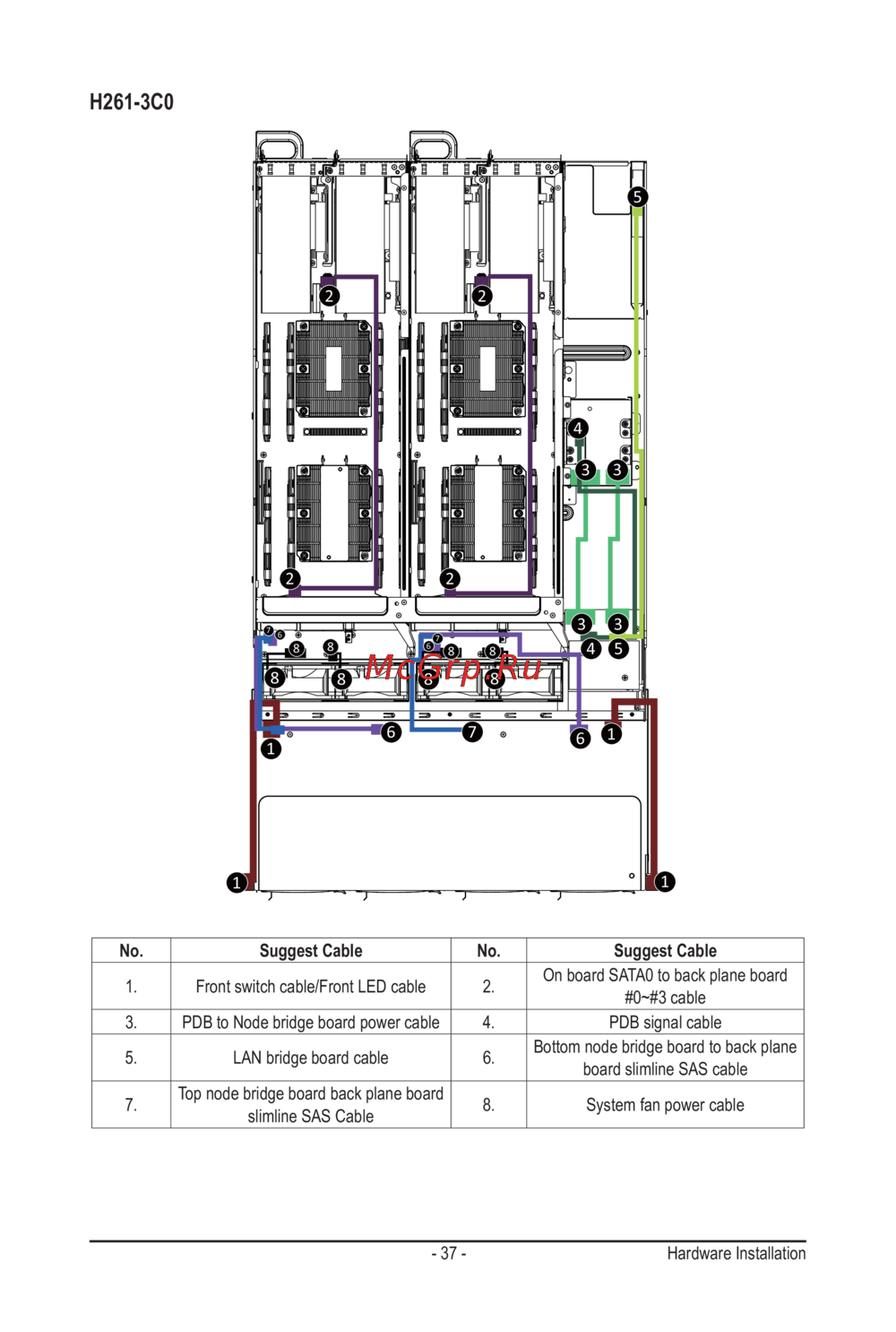

- 37 - Hardware Installation

H261-3C0

3 3

4 5

3 3

No. Suggest Cable No. Suggest Cable

1. Front switch cable/Front LED cable 2.

On board SATA0 to back plane board

#0~#3 cable

3. PDB to Node bridge board power cable 4. PDB signal cable

5. LAN bridge board cable 6.

Bottom node bridge board to back plane

board slimline SAS cable

Top node bridge board back plane board

slimline SAS Cable

8. System fan power cable
