Hardware Installation - 38 -

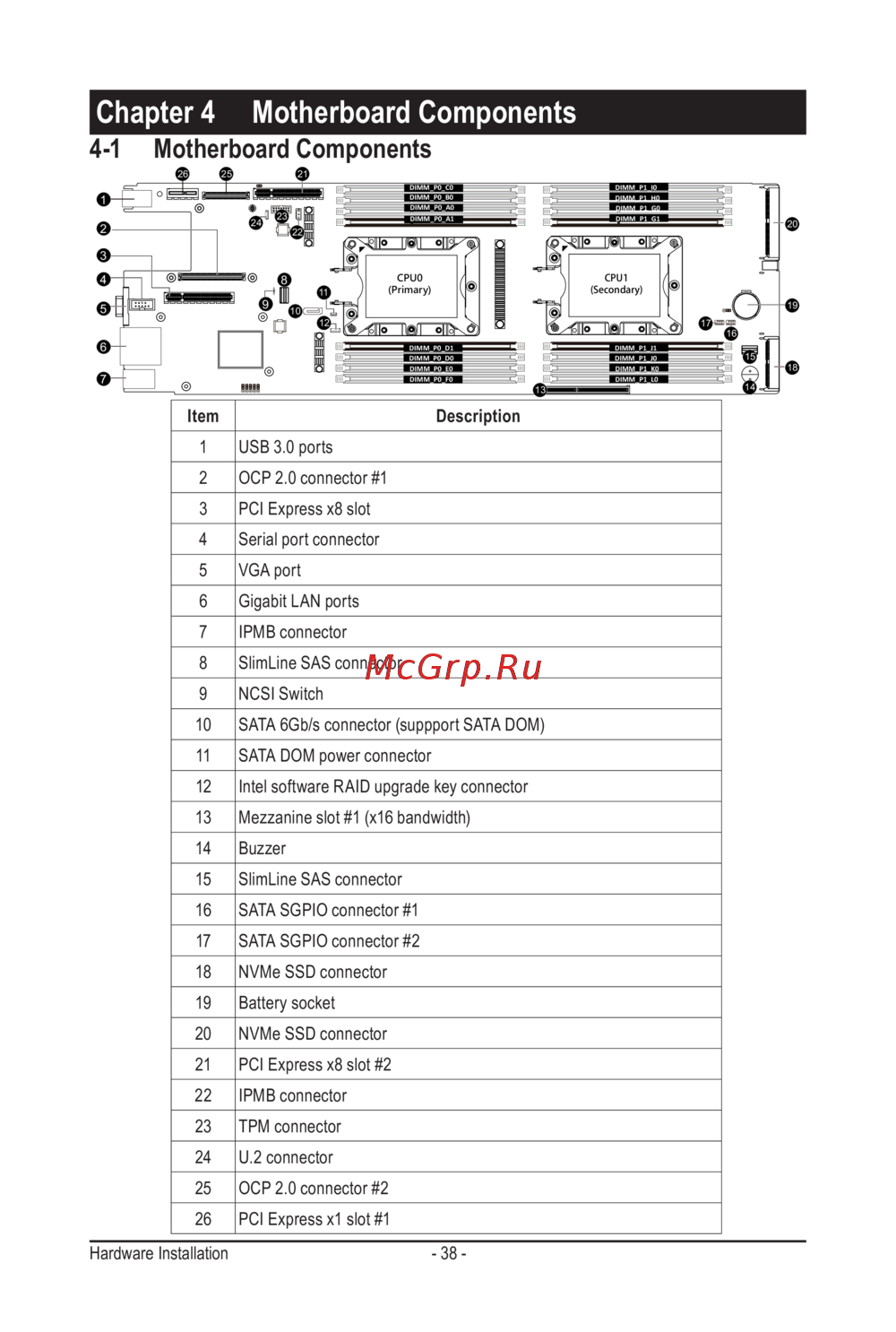

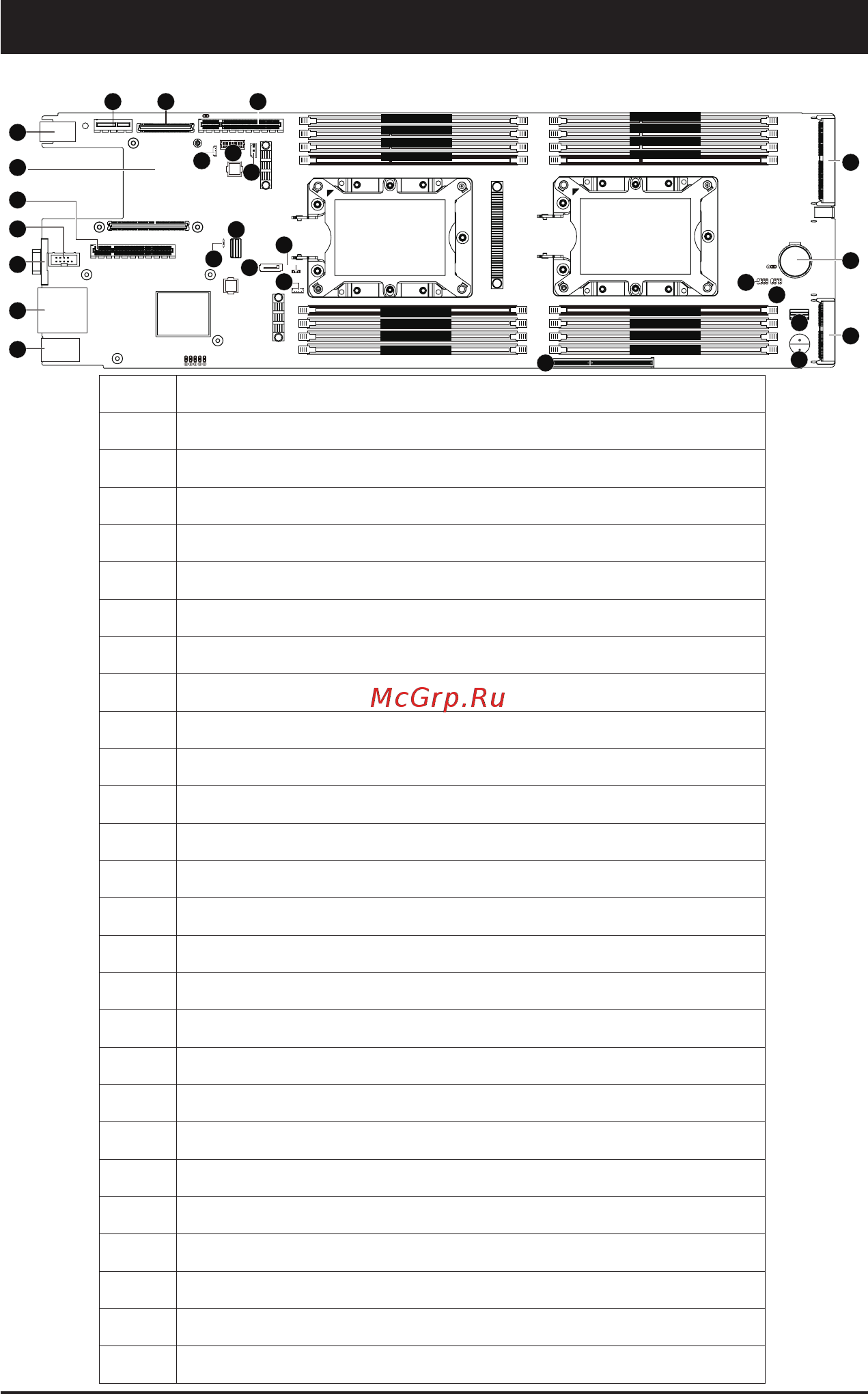

Chapter 4 Motherboard Components
4-1 Motherboard Components
21
1
5
3
6
7
8
9
11
10
12
13
14
18
15
19
20
17
16
21
22
23
24
2526
4
2
CPU1
(Secondary)
&38
3ULPDU\
DIMM_P0_F0
DIMM_P0_E0
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_A1
DIMM_P0_A0
DIMM_P0_B0
DIMM_P0_C0
DIMM_P1_G1
DIMM_P1_G0
DIMM_P1_H0
DIMM_P1_I0
DIMM_P1_L0
DIMM_P1_K0
DIMM_P1_J0
DIMM_P1_J1
Item Description
1 USB 3.0 ports
2 OCP 2.0 connector #1
3 PCI Express x8 slot
4 Serial port connector
5 VGA port
6 Gigabit LAN ports
7 IPMB connector
8 SlimLine SAS connector
9 NCSI Switch
10 SATA 6Gb/s connector (suppport SATA DOM)
11 SATA DOM power connector
12 Intel software RAID upgrade key connector
13 Mezzanine slot #1 (x16 bandwidth)
14 Buzzer
15 SlimLine SAS connector
16 SATA SGPIO connector #1
17 SATA SGPIO connector #2
18 NVMe SSD connector
19 Battery socket
20 NVMe SSD connector
21 PCI Express x8 slot #2
22 IPMB connector
23 TPM connector
24 U.2 connector
25 OCP 2.0 connector #2
26 PCI Express x1 slot #1
