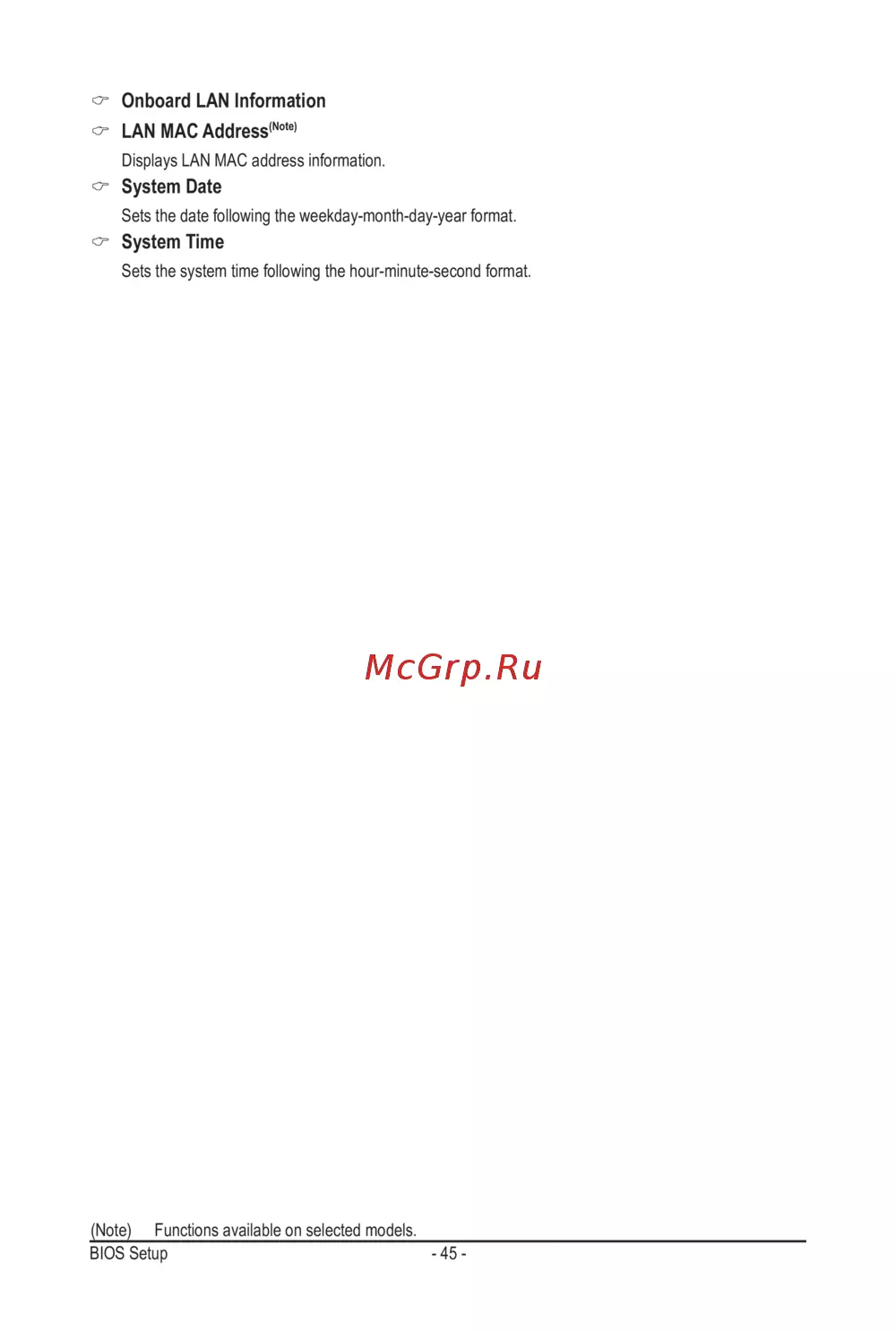

Onboard LAN Information

LAN MAC Address

(Note)

Displays LAN MAC address information.

System Date

Sets the date following the weekday-month-day-year format.

System Time

Sets the system time following the hour-minute-second format.

(Note) Functions available on selected models.
