- 46 - BIOS Setup

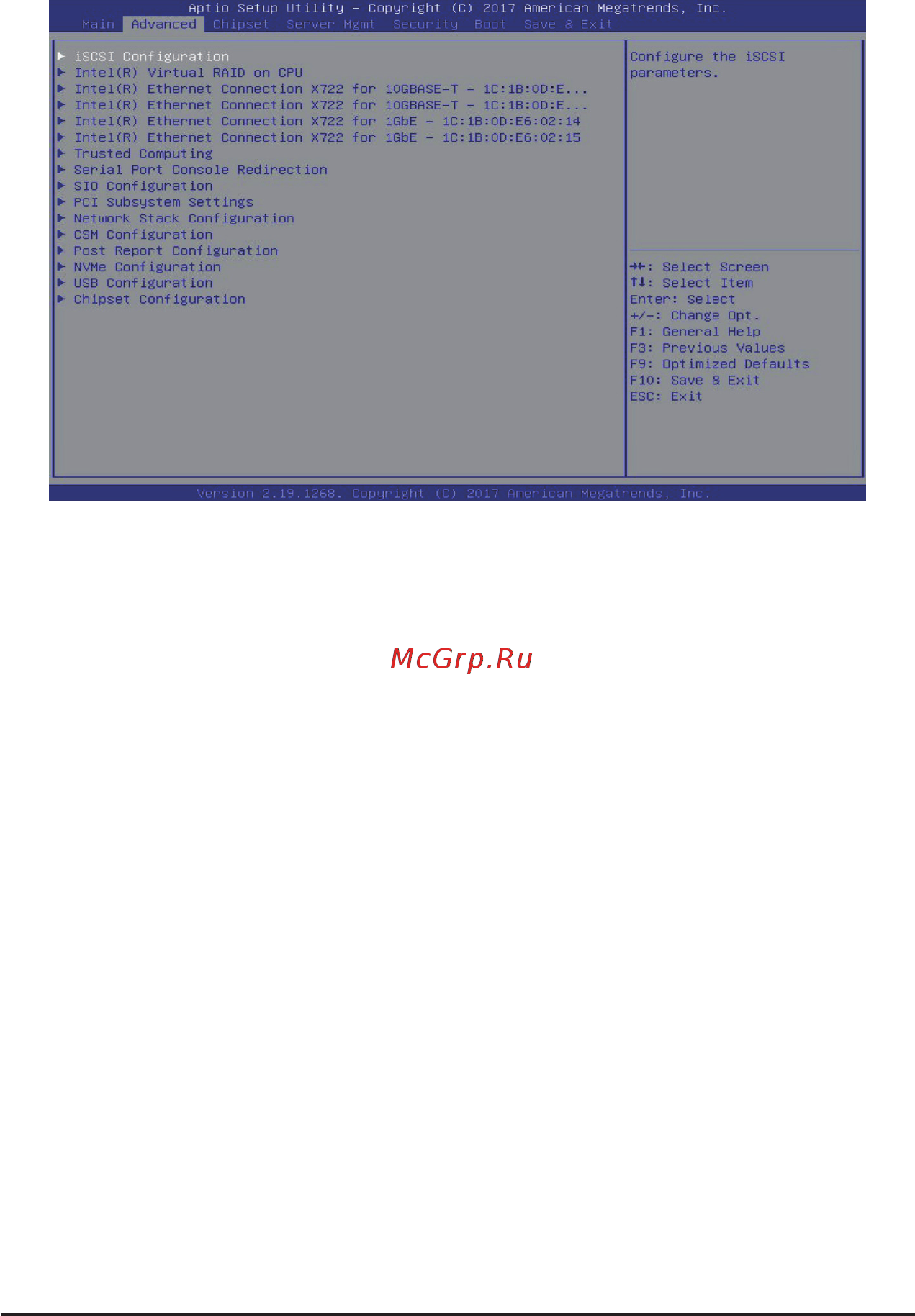

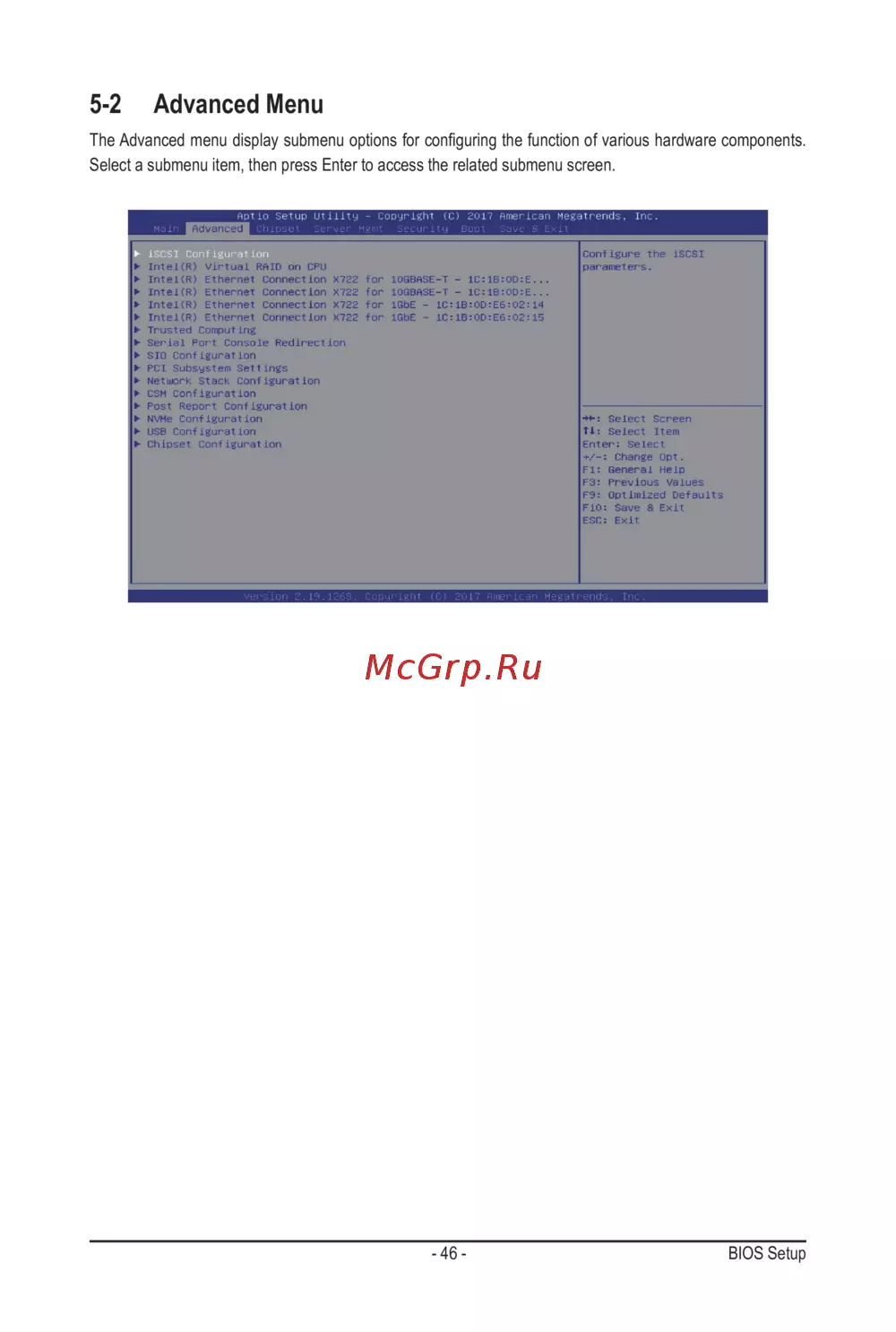

5-2 Advanced Menu

The Advanced menu display submenu options for conguring the function of various hardware components.

Select a submenu item, then press Enter to access the related submenu screen.
