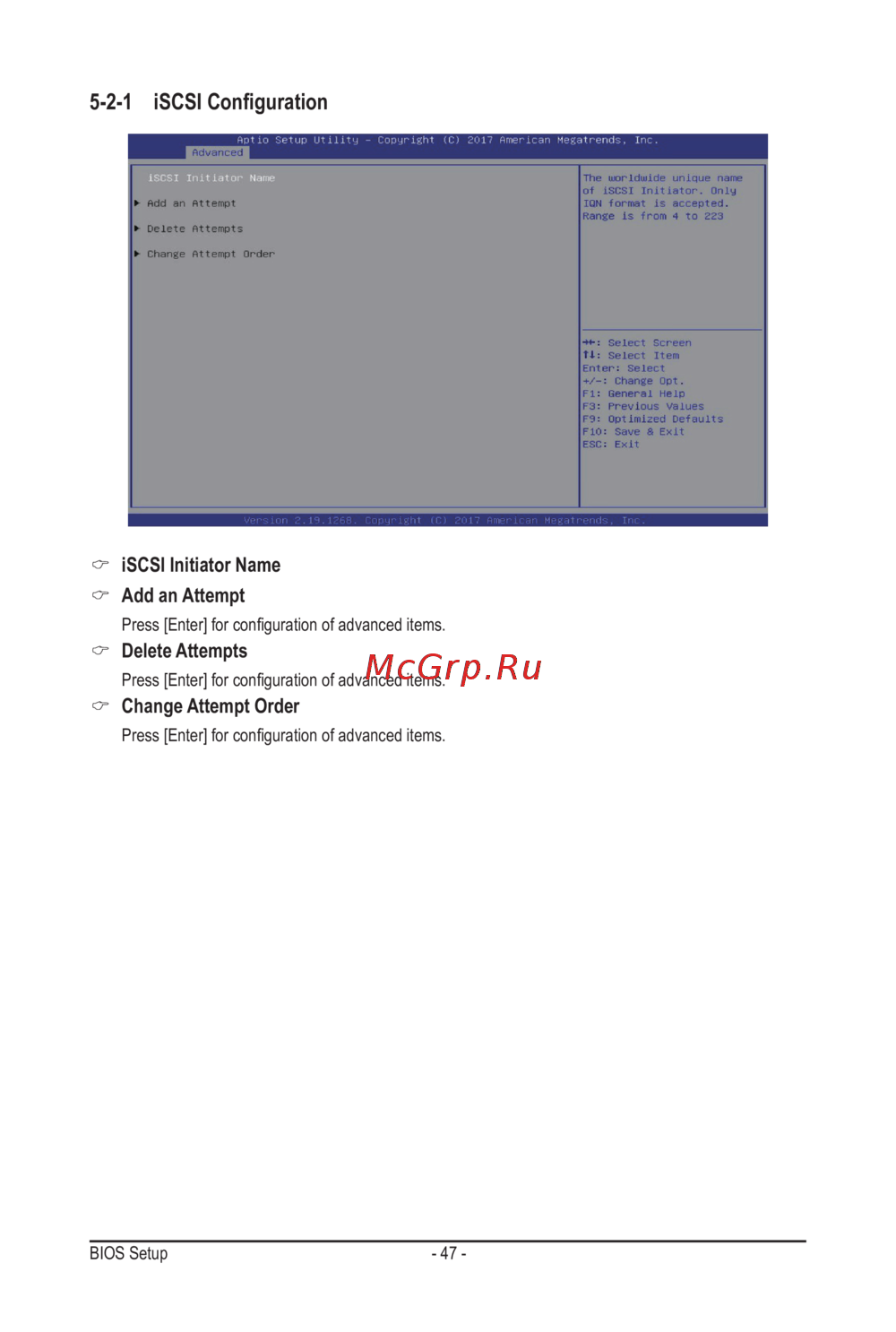

5-2-1 iSCSIConguration

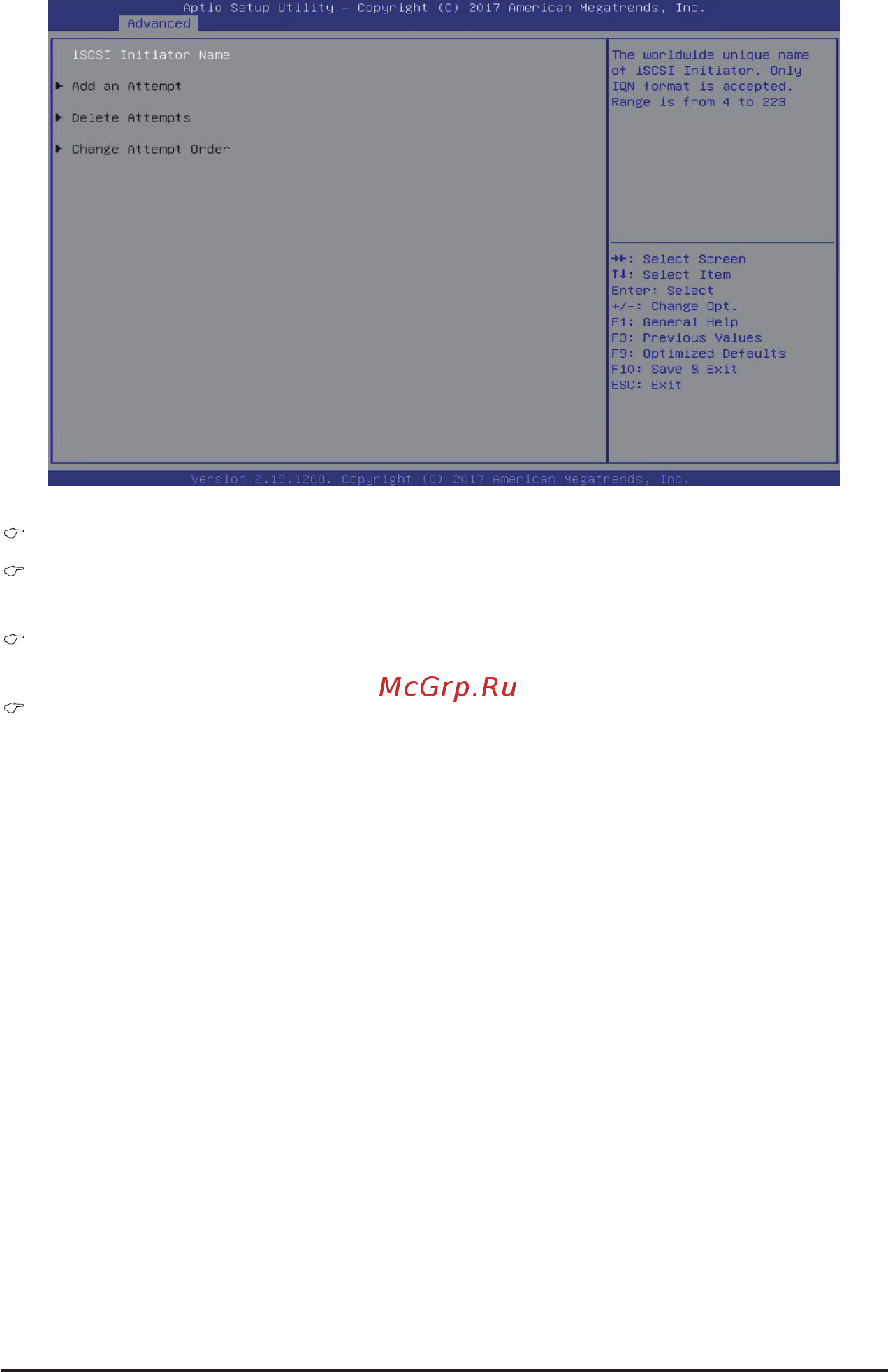

iSCSI Initiator Name

Add an Attempt

Press [Enter] for conguration of advanced items.

Delete Attempts

Press [Enter] for conguration of advanced items.

Change Attempt Order

Press [Enter] for conguration of advanced items.
