Gigabyte H261-3C0 (rev. 100) [48/123] Intel r virtual raid on cpu

- 48 - BIOS Setup

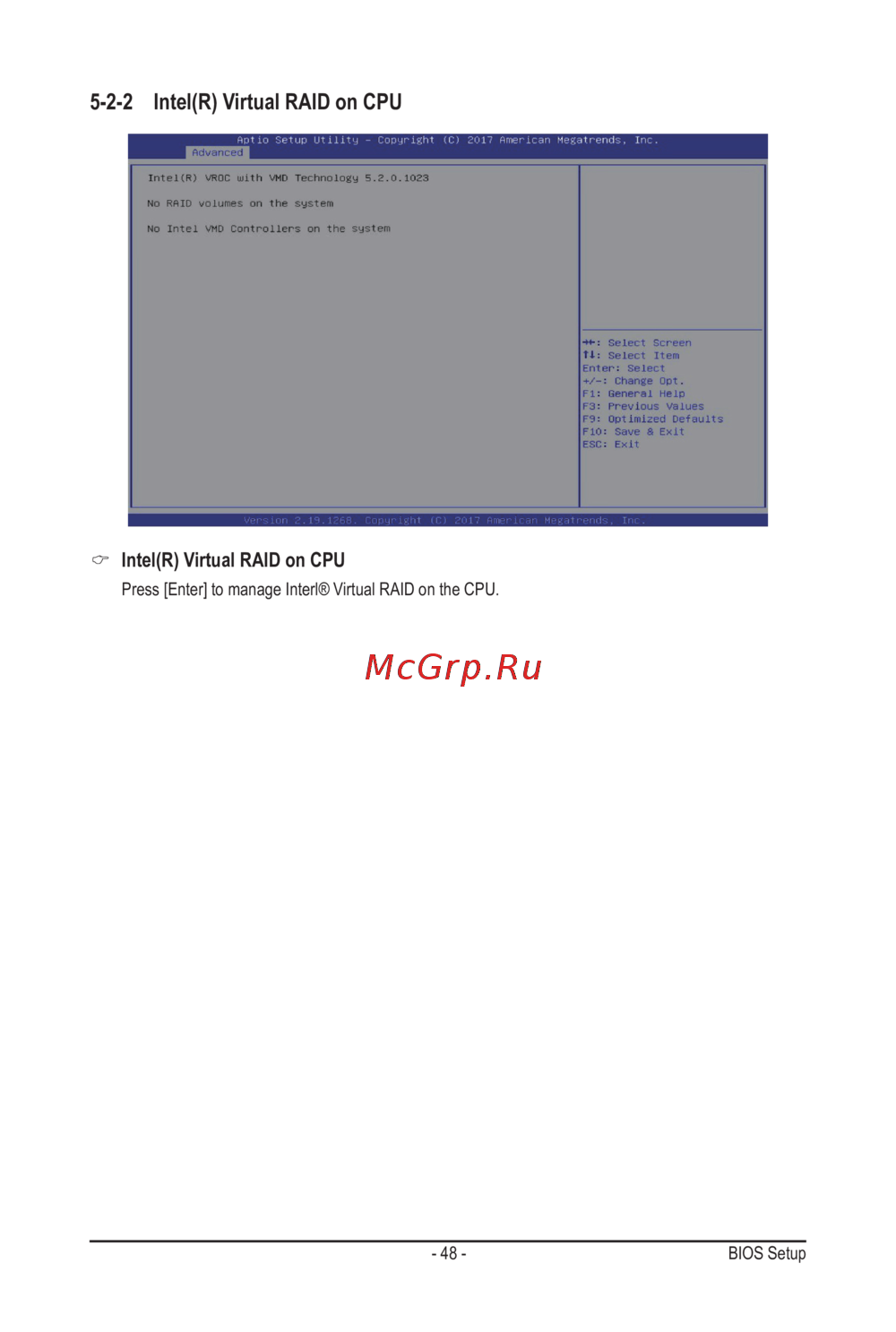

5-2-2 Intel(R) Virtual RAID on CPU

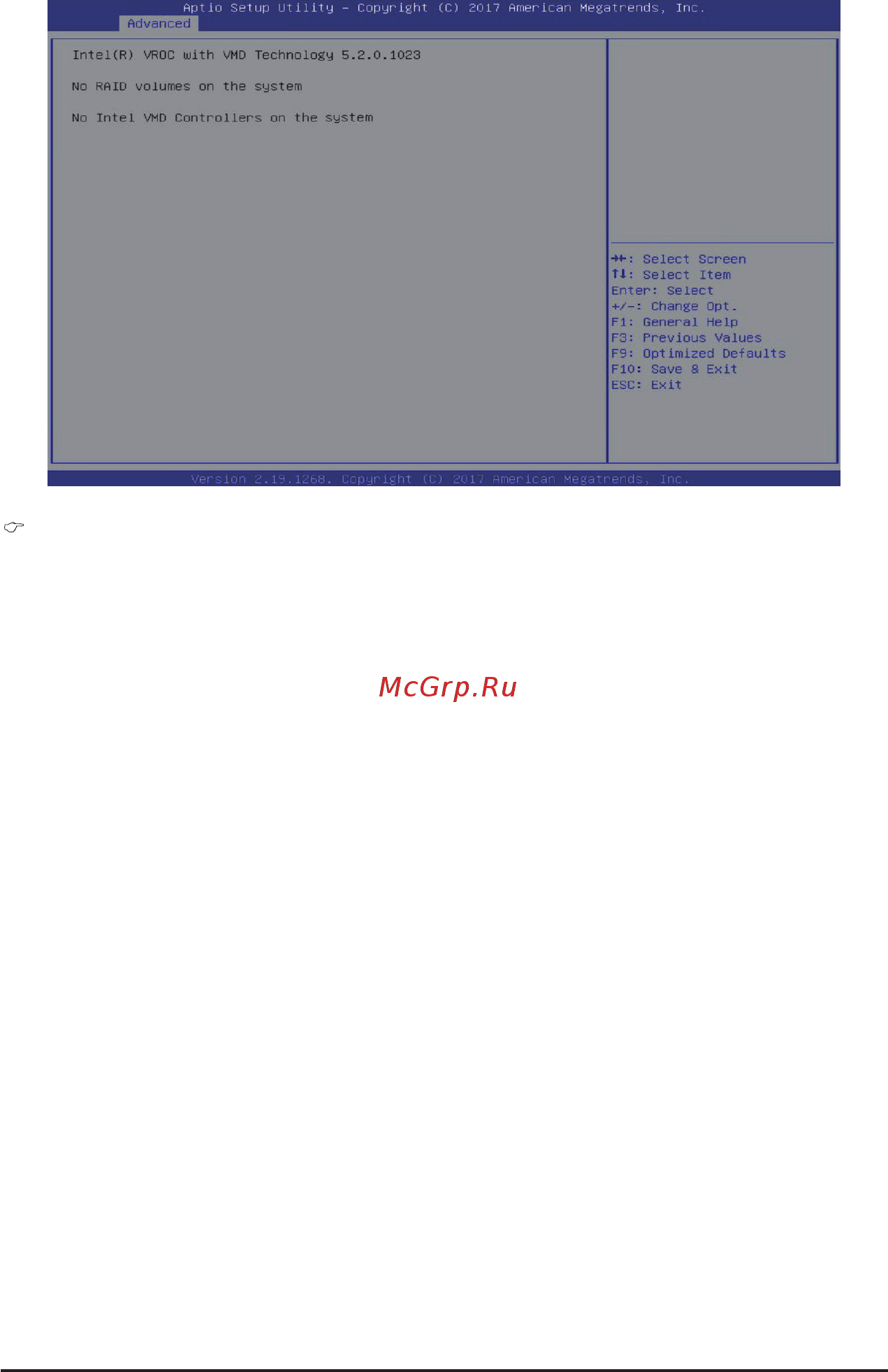

Intel(R) Virtual RAID on CPU

Press [Enter] to manage Interl® Virtual RAID on the CPU.
