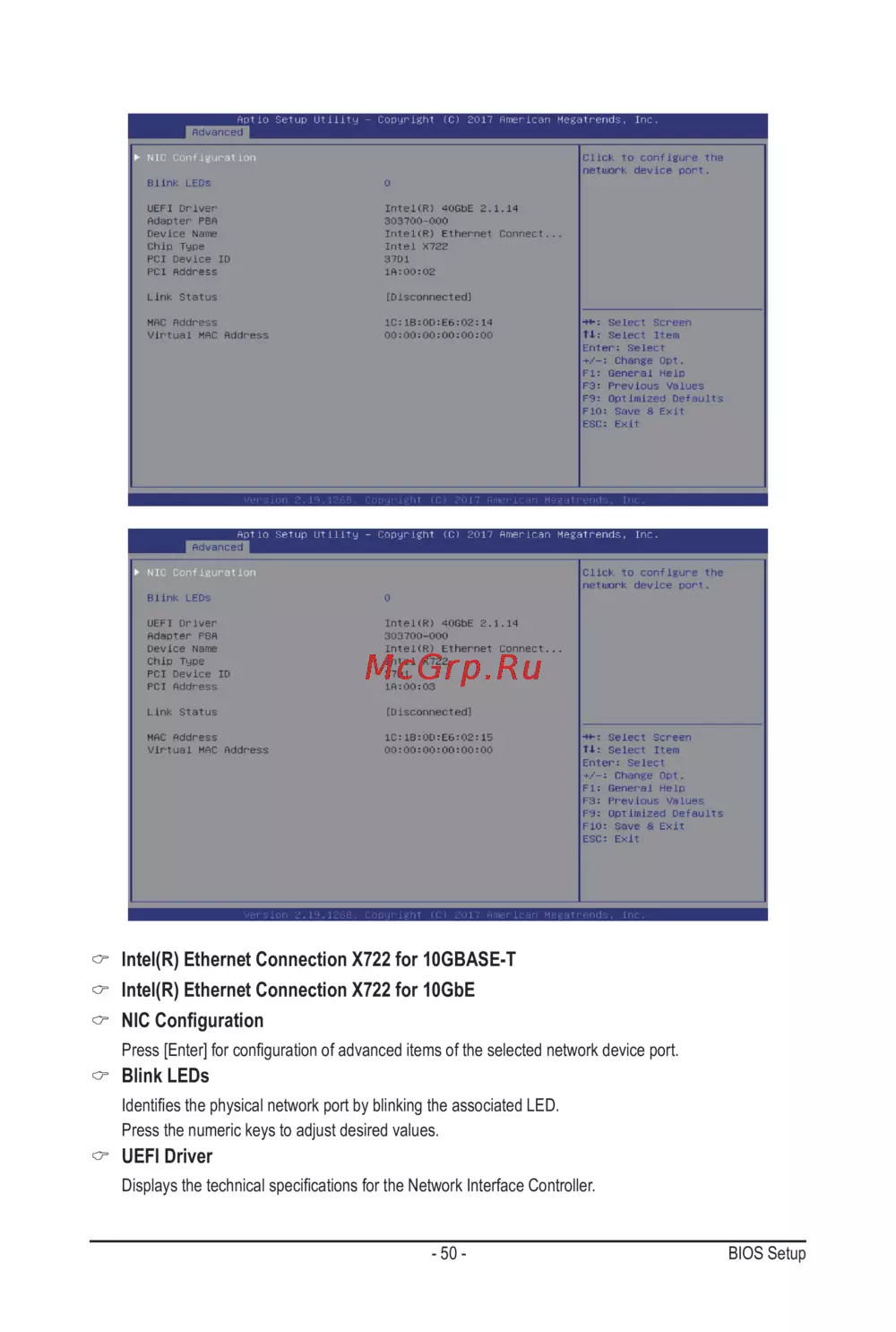

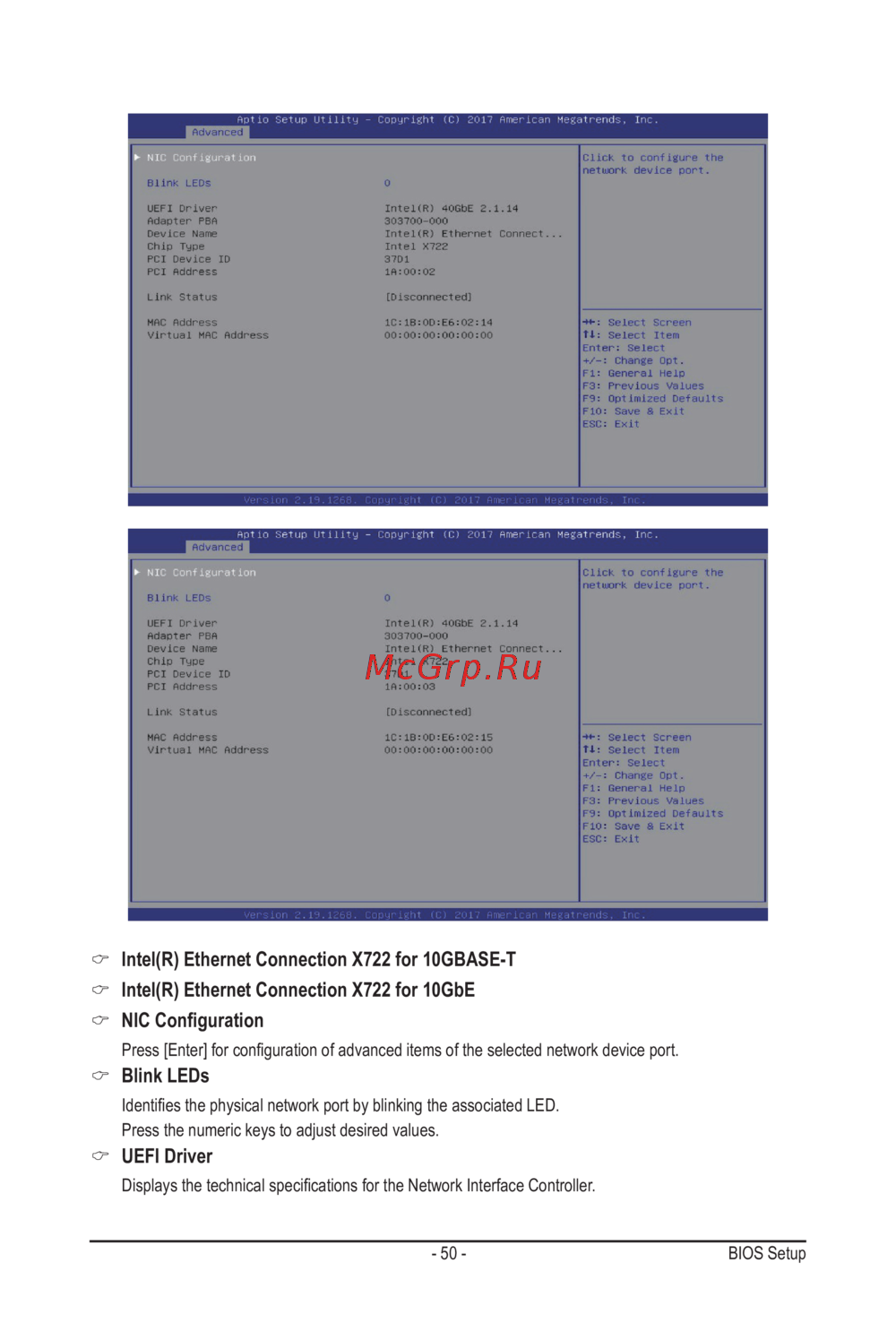

Gigabyte H261-3C0 (rev. 100) [50/123] Uefi driver

- 50 - BIOS Setup

Intel(R) Ethernet Connection X722 for 10GBASE-T

Intel(R) Ethernet Connection X722 for 10GbE

NICConguration

Press [Enter] for conguration of advanced items of the selected network device port.

Blink LEDs

Identies the physical network port by blinking the associated LED.

Press the numeric keys to adjust desired values.

UEFI Driver

Displays the technical specications for the Network Interface Controller.
