Gigabyte H261-3C0 (rev. 100) [52/123] Wake on lan

Gigabyte H261-N80 (rev. 100/A00/B00) [52/123] Wake on lan

- 52 - BIOS Setup

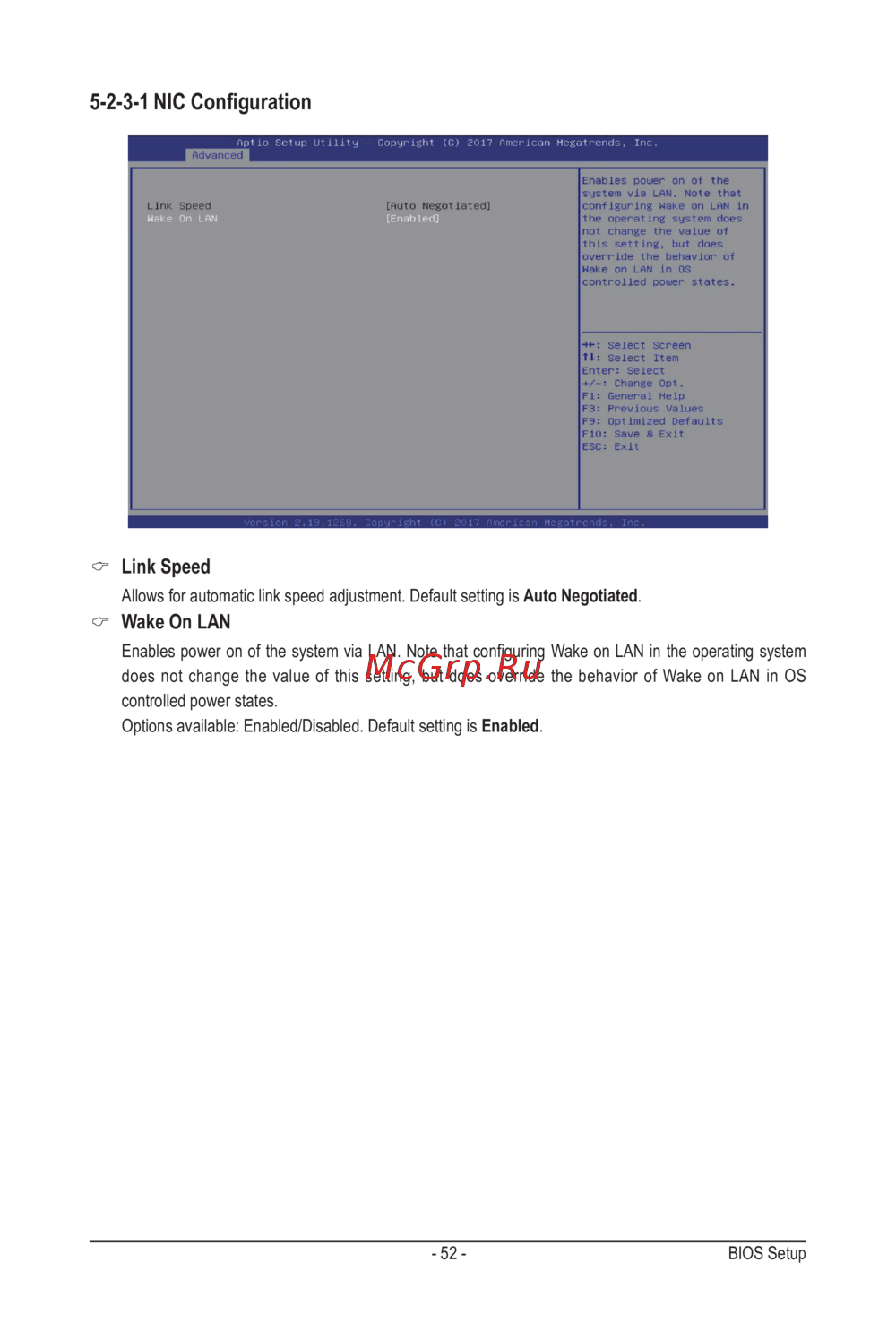

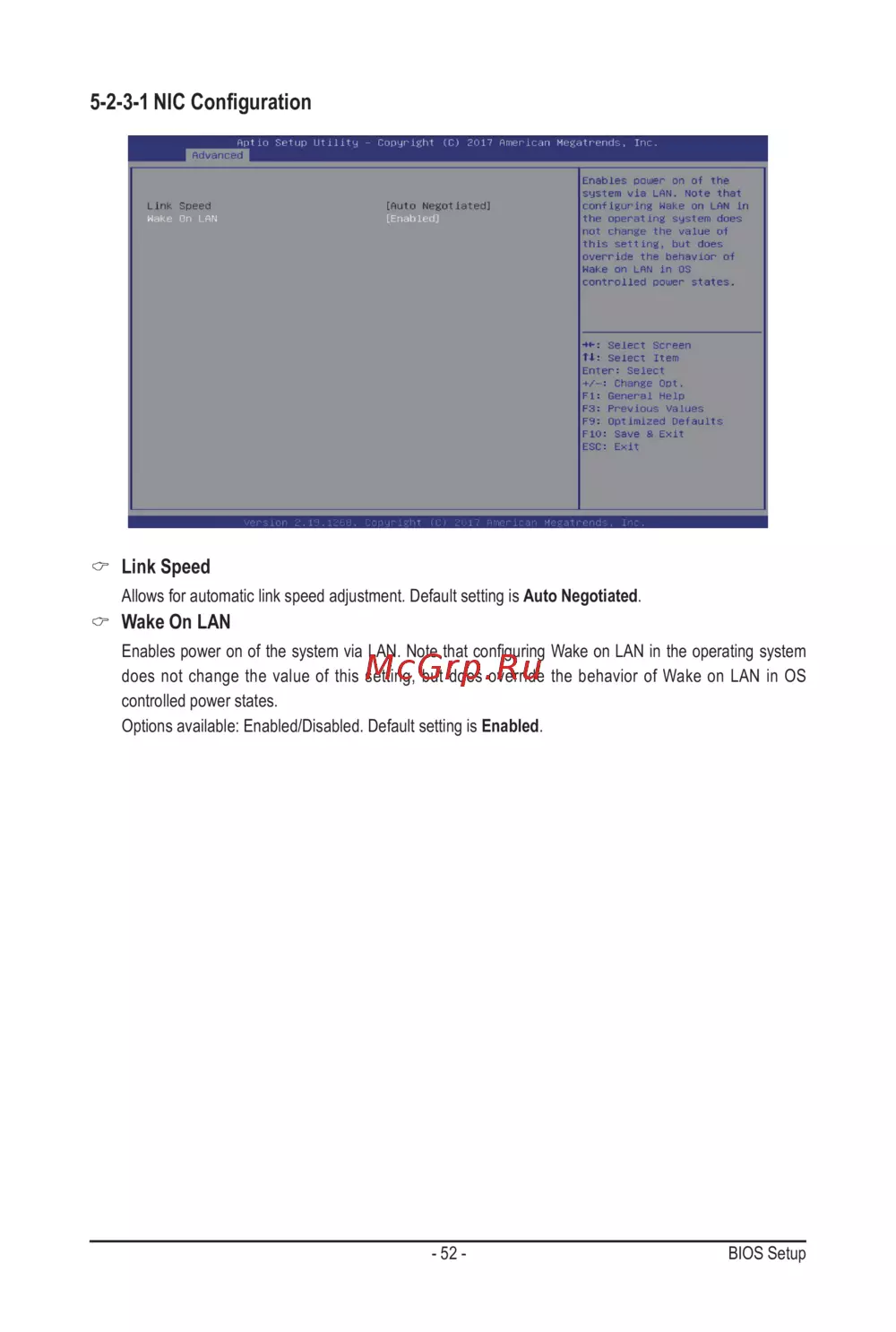

5-2-3-1NICConguration

Link Speed

Allows for automatic link speed adjustment. Default setting is Auto Negotiated.

Wake On LAN

Enables power on of the system via LAN. Note that conguring Wake on LAN in the operating system

does not change the value of this setting, but does override the behavior of Wake on LAN in OS

controlled power states.

Options available: Enabled/Disabled. Default setting is Enabled.
