BIOS Setup - 53 -

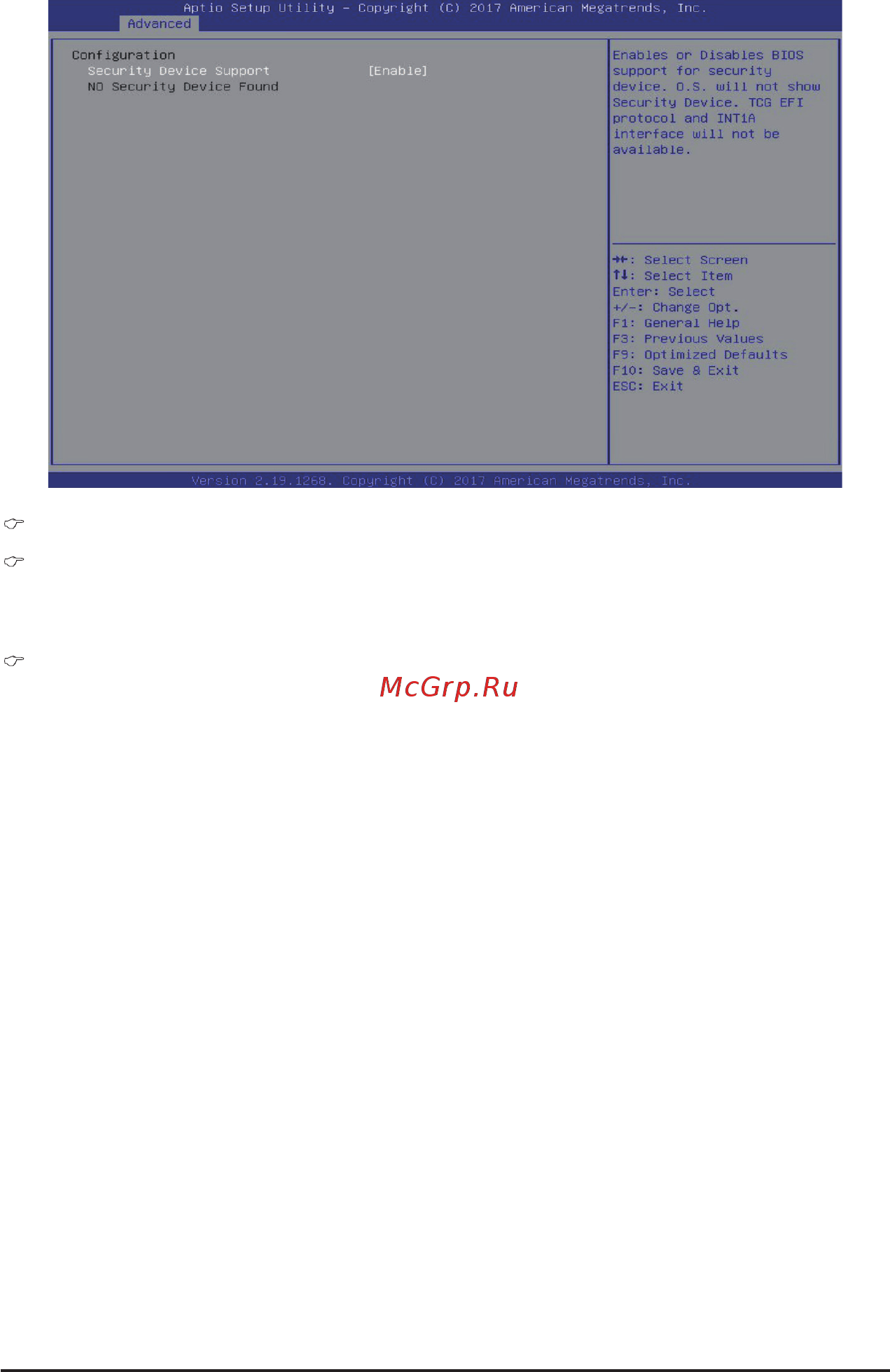

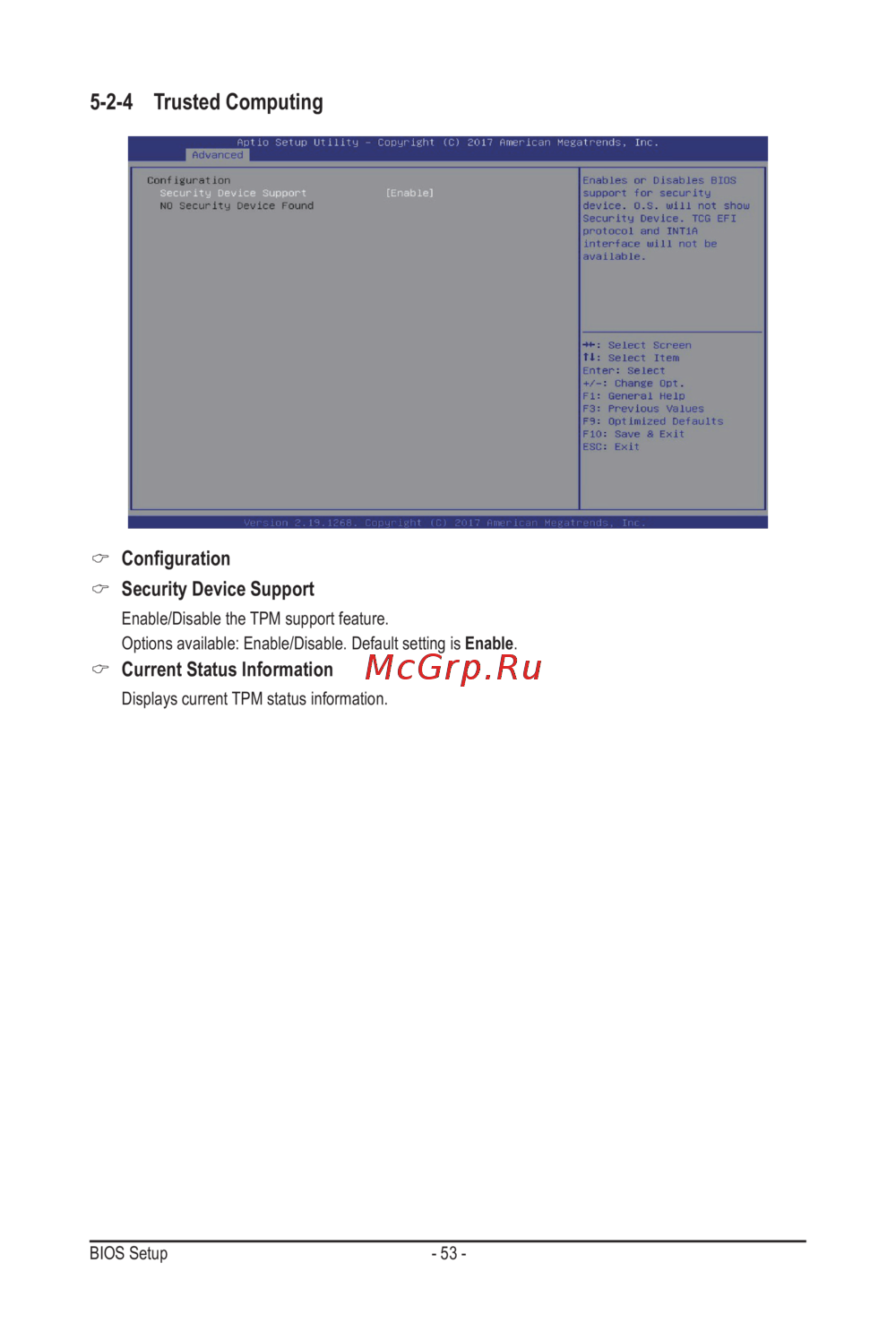

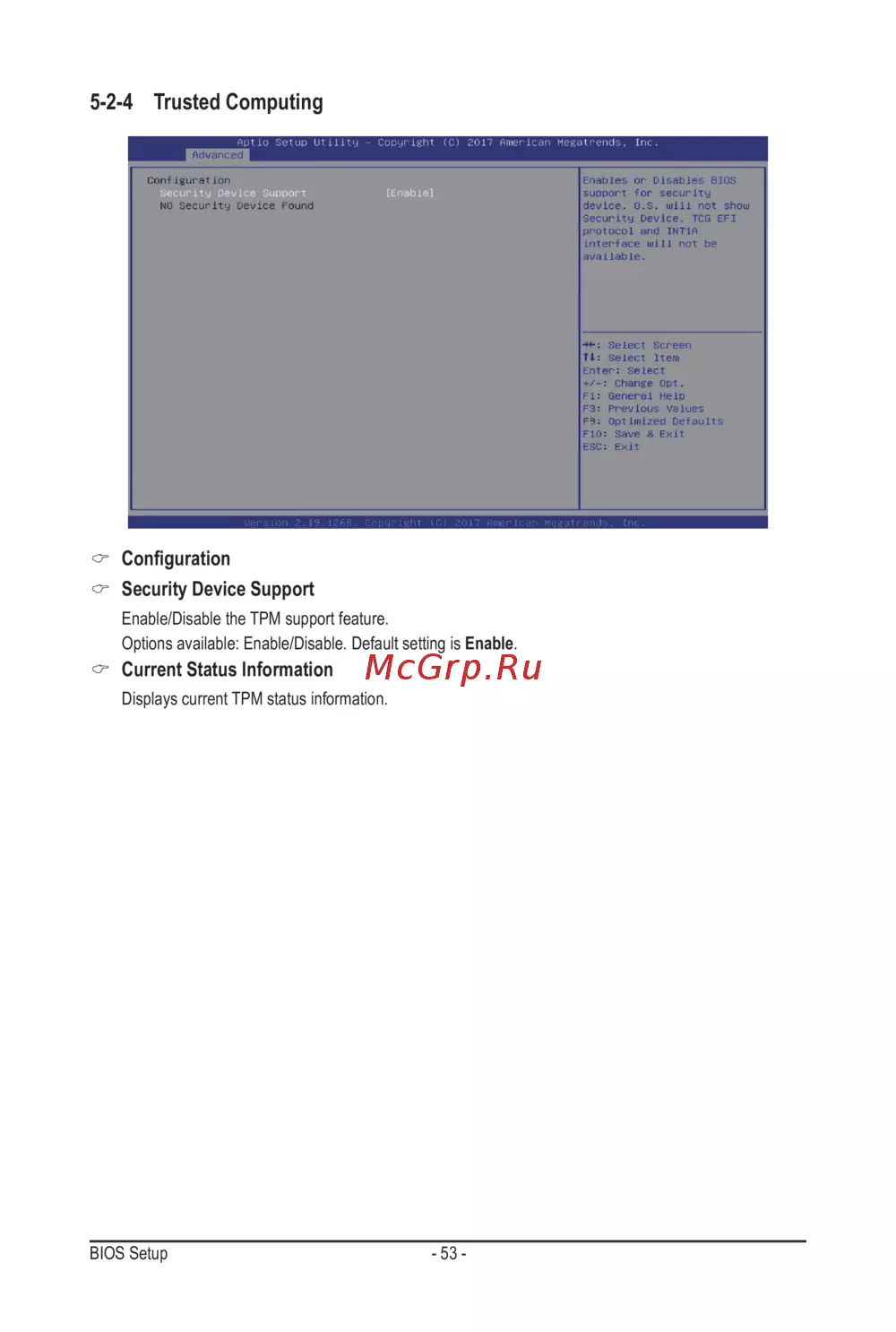

5-2-4 Trusted Computing

 Conguration

Security Device Support

Enable/Disable the TPM support feature.

Options available: Enable/Disable. Default setting is Enable.

Current Status Information

Displays current TPM status information.
