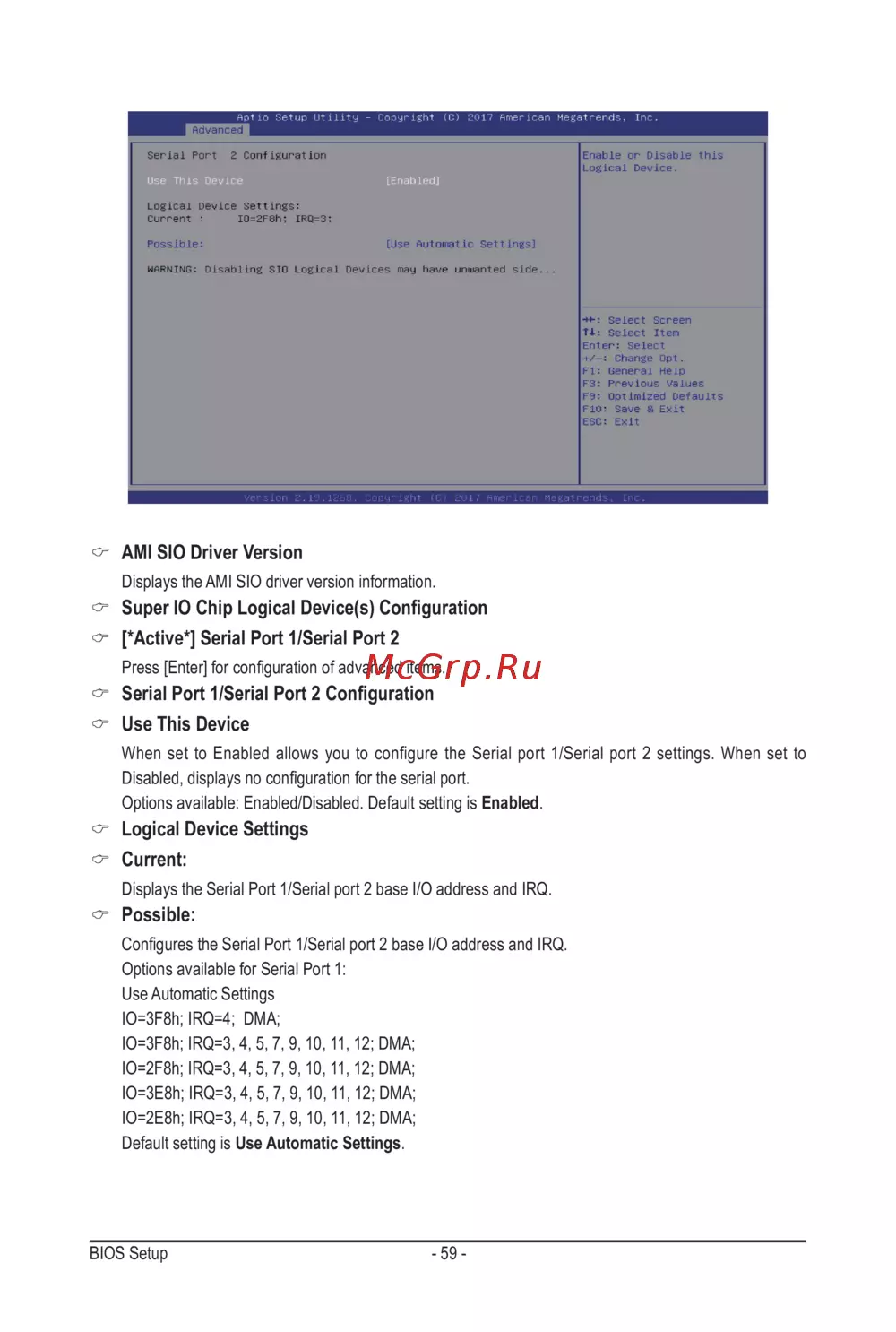

BIOS Setup - 59 -
AMI SIO Driver Version
Displays the AMI SIO driver version information.
SuperIOChipLogicalDevice(s)Conguration
[*Active*] Serial Port 1/Serial Port 2
Press [Enter] for conguration of advanced items.

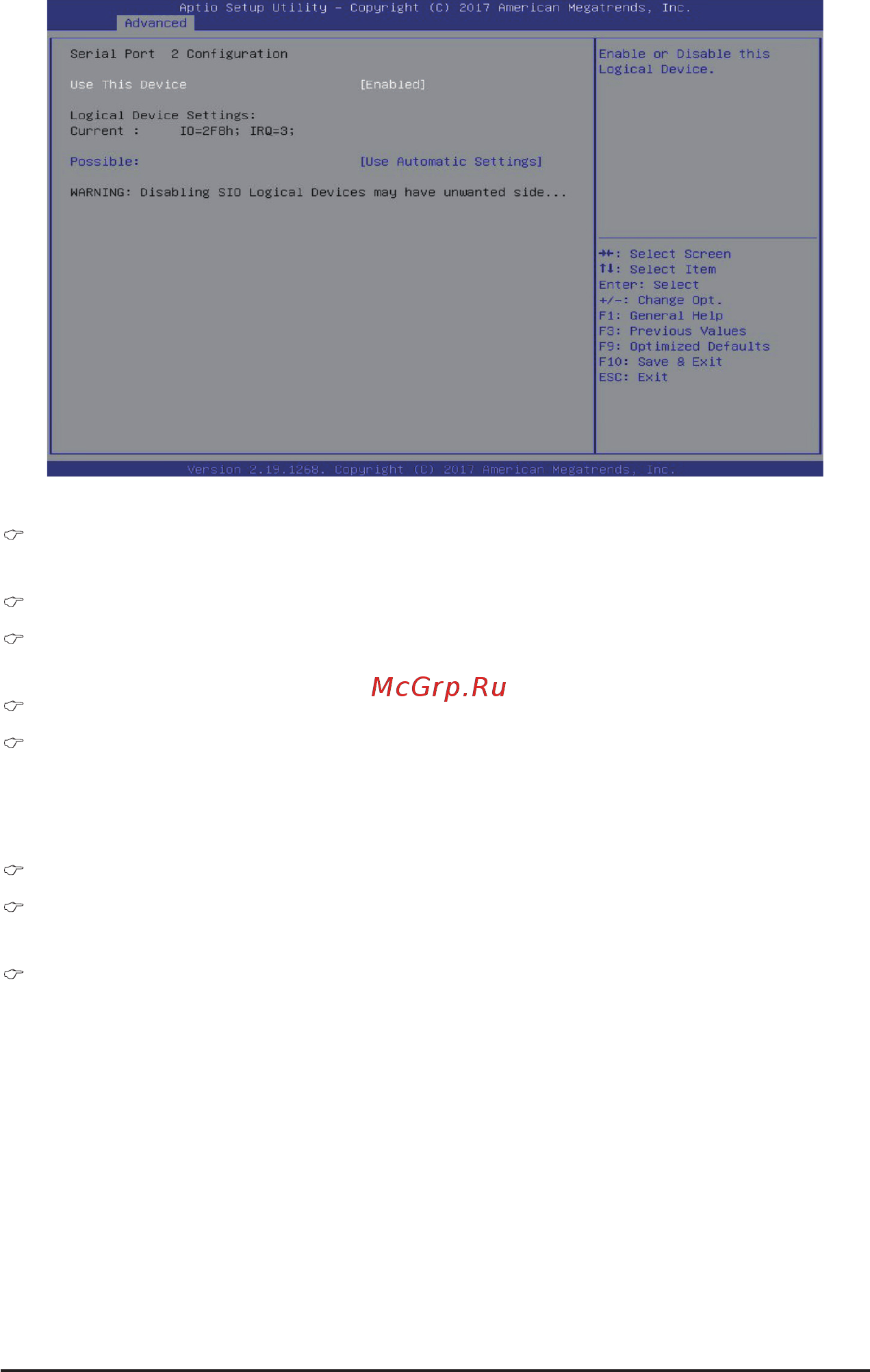

SerialPort1/SerialPort2Conguration
Use This Device
When set to Enabled allows you to configure the Serial port 1/Serial port 2 settings. When set to
Disabled, displays no conguration for the serial port.
Options available: Enabled/Disabled. Default setting is Enabled.
Logical Device Settings
Current:
Displays the Serial Port 1/Serial port 2 base I/O address and IRQ.
Possible:
Congures the Serial Port 1/Serial port 2 base I/O address and IRQ.
Options available for Serial Port 1:
Use Automatic Settings
IO=3F8h; IRQ=4; DMA;
IO=3F8h; IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA;
IO=2F8h; IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA;
IO=3E8h; IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA;
IO=2E8h; IRQ=3, 4, 5, 7, 9, 10, 11, 12; DMA;
Default setting is Use Automatic Settings.
