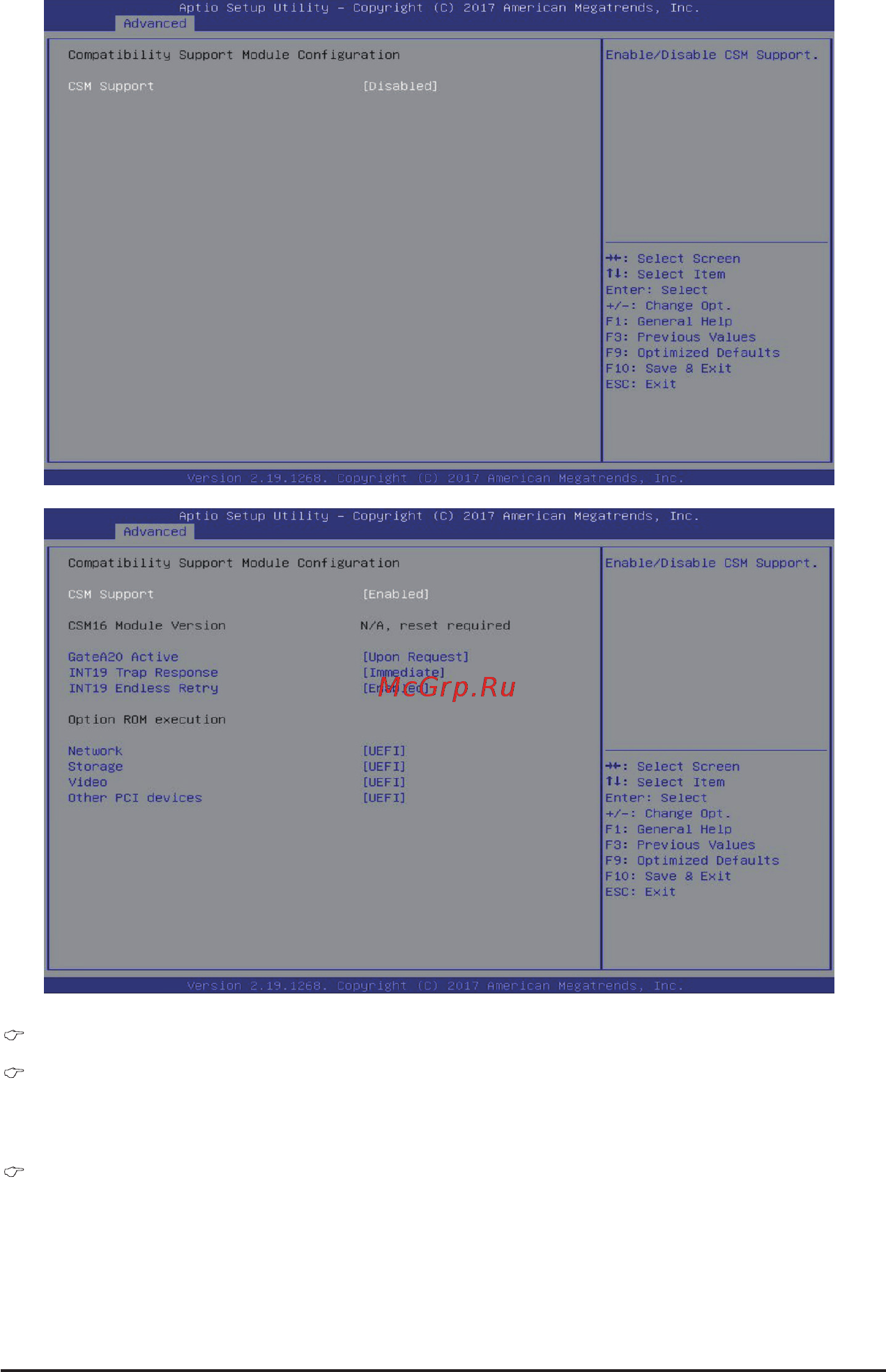

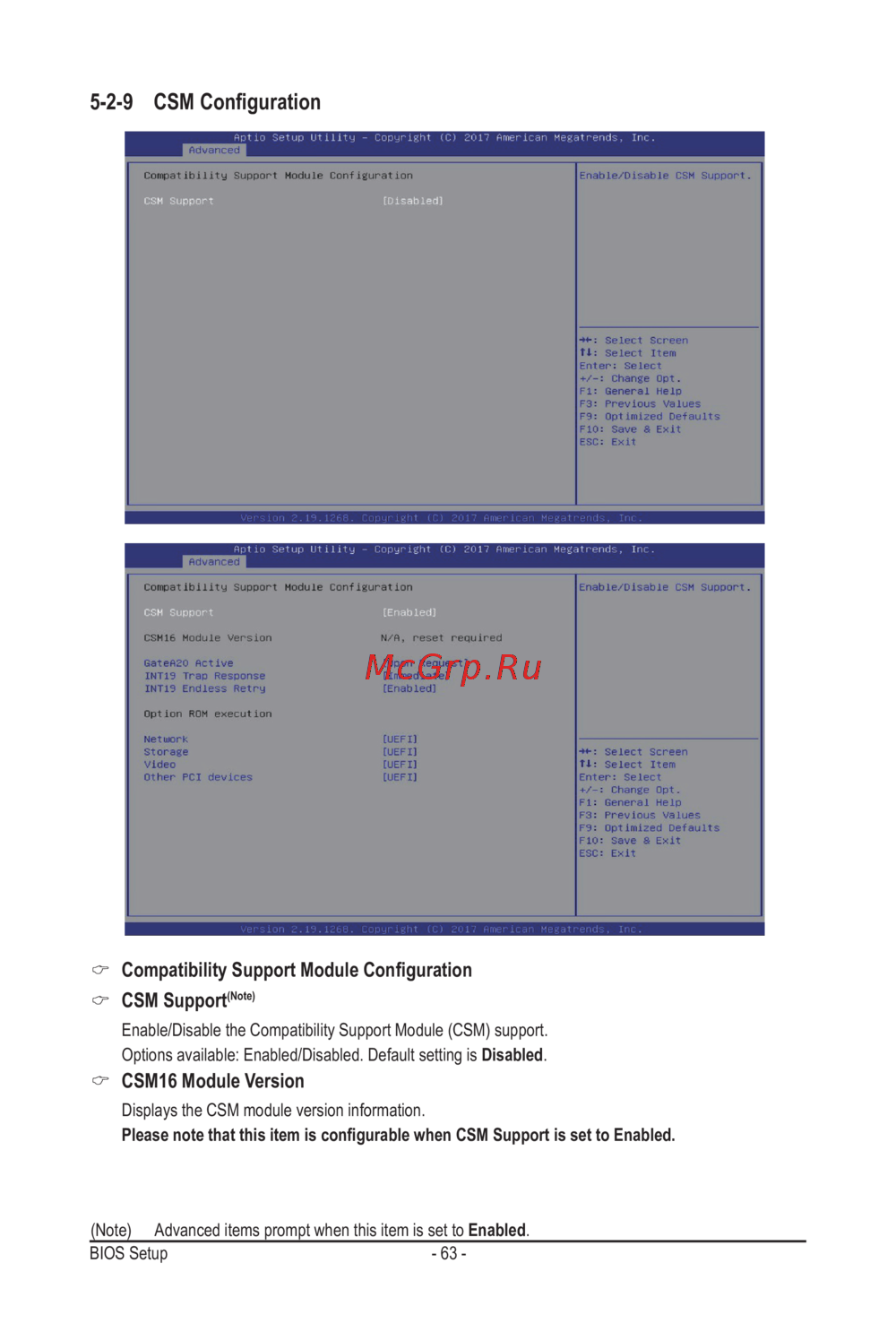

5-2-9 CSMConguration

 CompatibilitySupportModuleConguration

CSM Support

(Note)

Enable/Disable the Compatibility Support Module (CSM) support.

Options available: Enabled/Disabled. Default setting is Disabled.

CSM16 Module Version

Displays the CSM module version information.

 PleasenotethatthisitemiscongurablewhenCSMSupportissettoEnabled.

(Note) Advanced items prompt when this item is set to Enabled.
