Gigabyte H261-3C0 (rev. 100) [65/123] Postreportconfiguration error message report post error message

BIOS Setup - 65 -

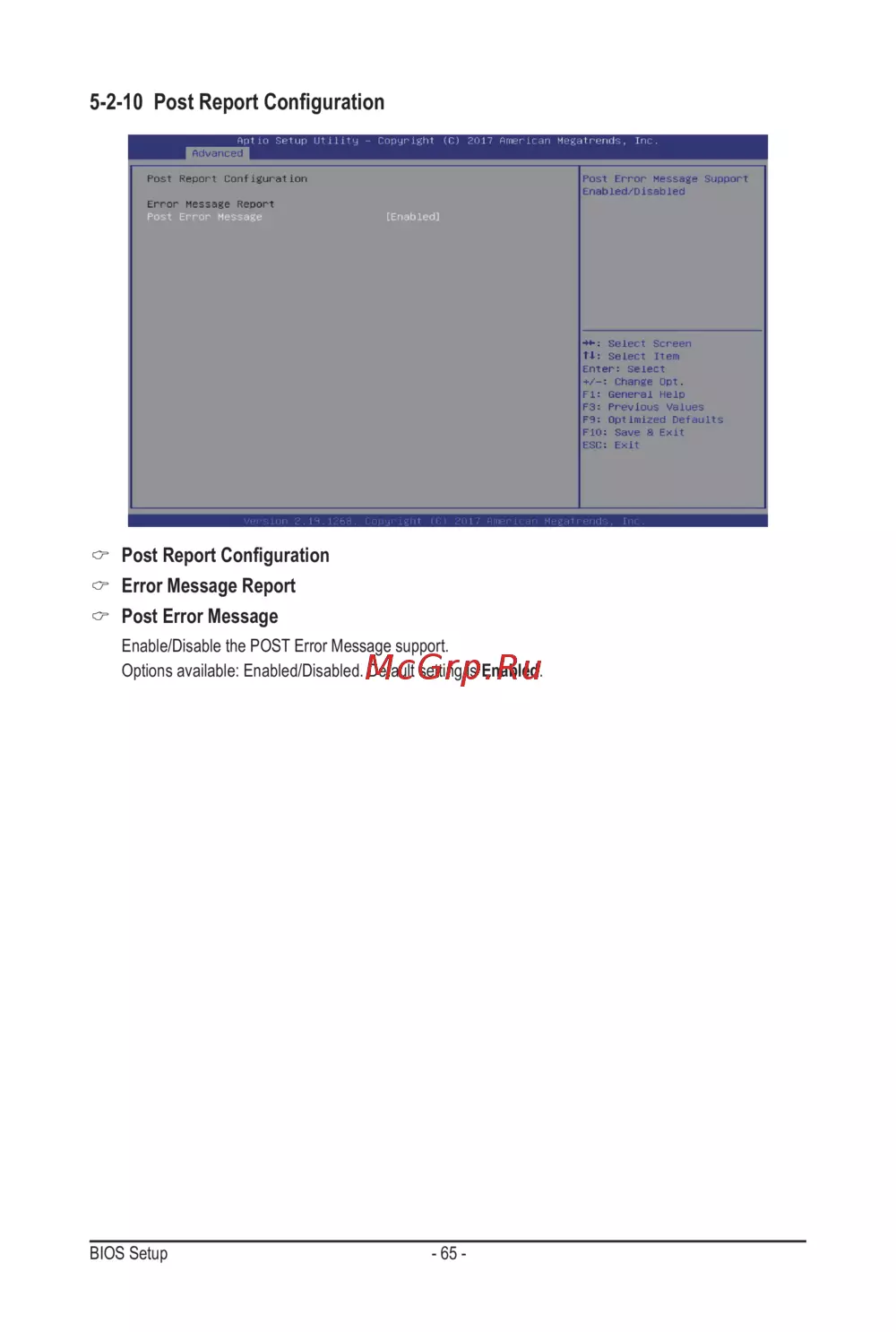

5-2-10 PostReportConguration

 PostReportConguration

Error Message Report

Post Error Message

Enable/Disable the POST Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
