Gigabyte H261-3C0 (rev. 100) [67/123] Port 60 64 emulation

BIOS Setup - 67 -

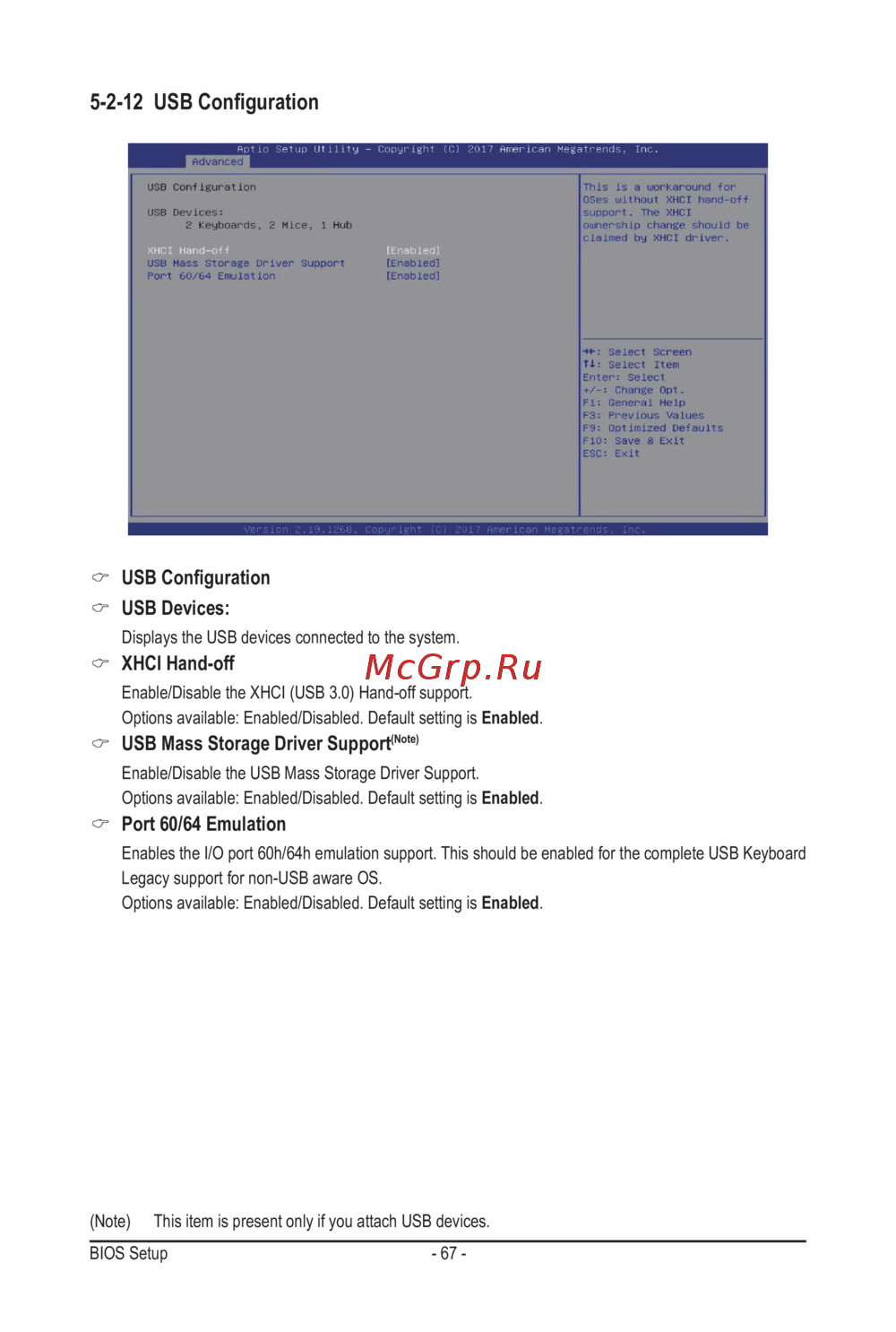

5-2-12 USBConguration

 USBConguration

USB Devices:

Displays the USB devices connected to the system.

XHCI Hand-off

Enable/Disable the XHCI (USB 3.0) Hand-off support.

Options available: Enabled/Disabled. Default setting is Enabled.

USB Mass Storage Driver Support

(Note)

Enable/Disable the USB Mass Storage Driver Support.

Options available: Enabled/Disabled. Default setting is Enabled.

Port 60/64 Emulation

Enables the I/O port 60h/64h emulation support. This should be enabled for the complete USB Keyboard

Legacy support for non-USB aware OS.

Options available: Enabled/Disabled. Default setting is Enabled.

(Note) This item is present only if you attach USB devices.
