- 70 - BIOS Setup

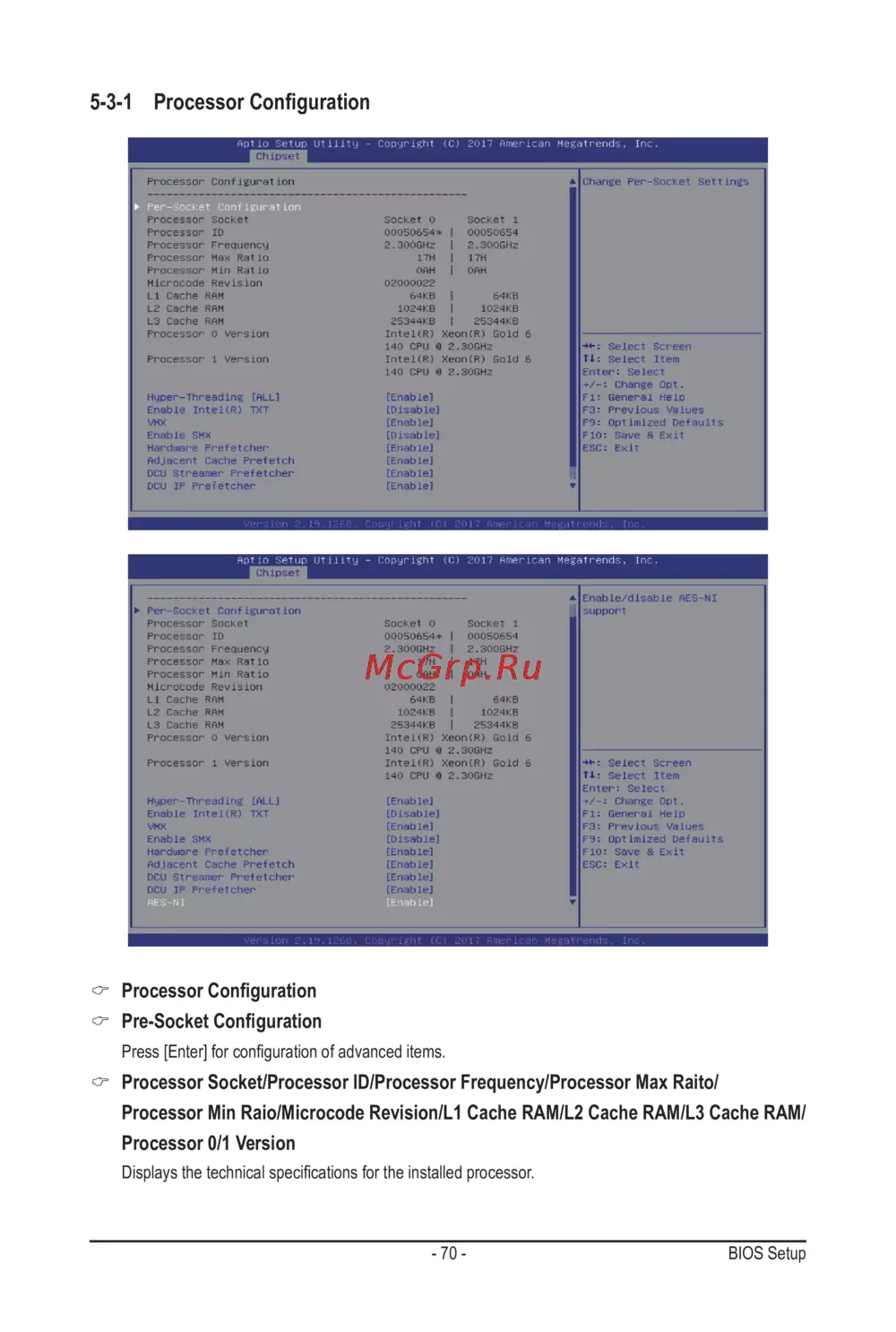

5-3-1 ProcessorConguration

 ProcessorConguration

 Pre-SocketConguration

Press [Enter] for conguration of advanced items.

Processor Socket/Processor ID/Processor Frequency/Processor Max Raito/

Processor Min Raio/Microcode Revision/L1 Cache RAM/L2 Cache RAM/L3 Cache RAM/

Processor 0/1 Version

Displays the technical specications for the installed processor.
