Gigabyte H261-3C0 (rev. 100) [73/123] Cpusocket0 1configuration

BIOS Setup - 73 -

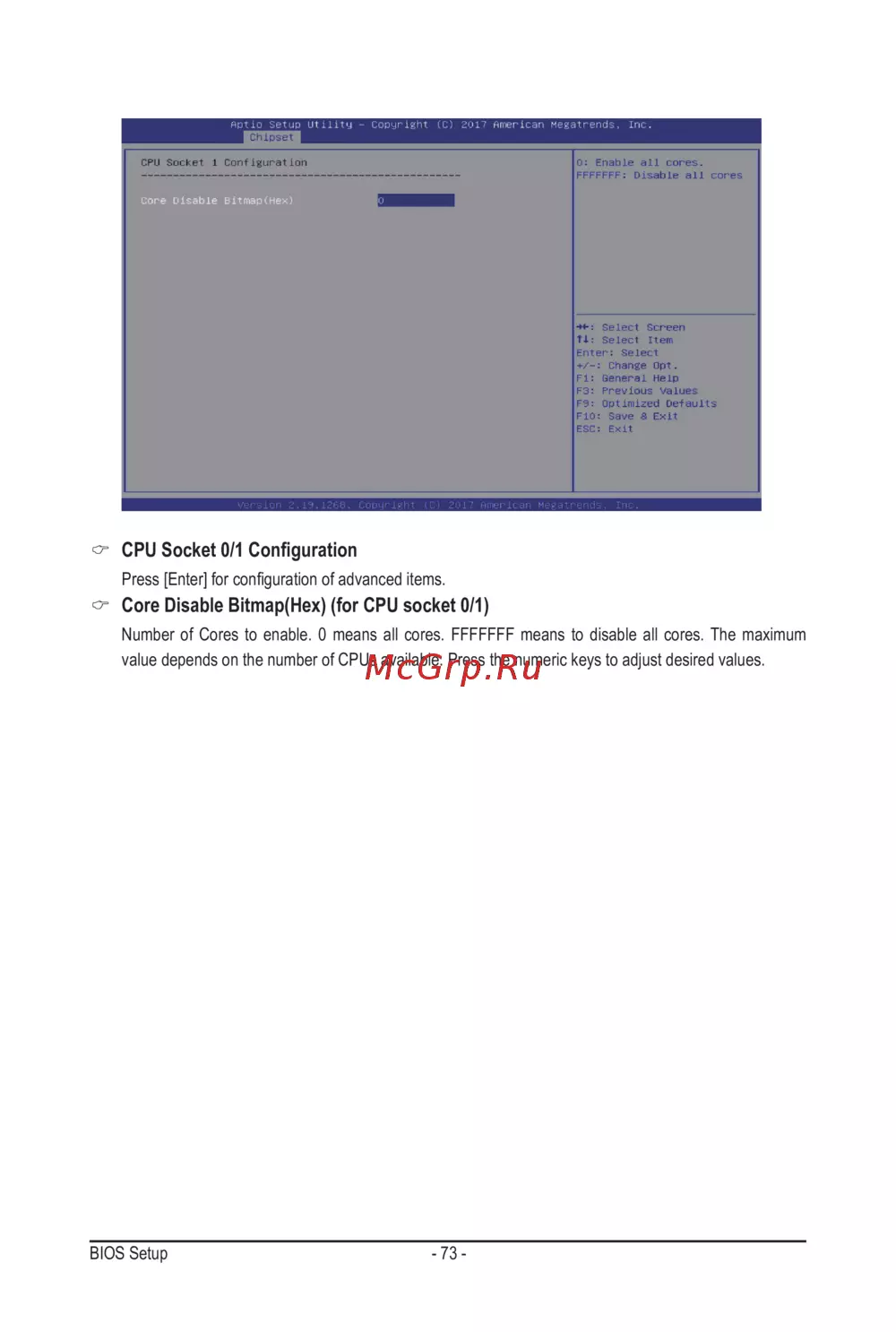

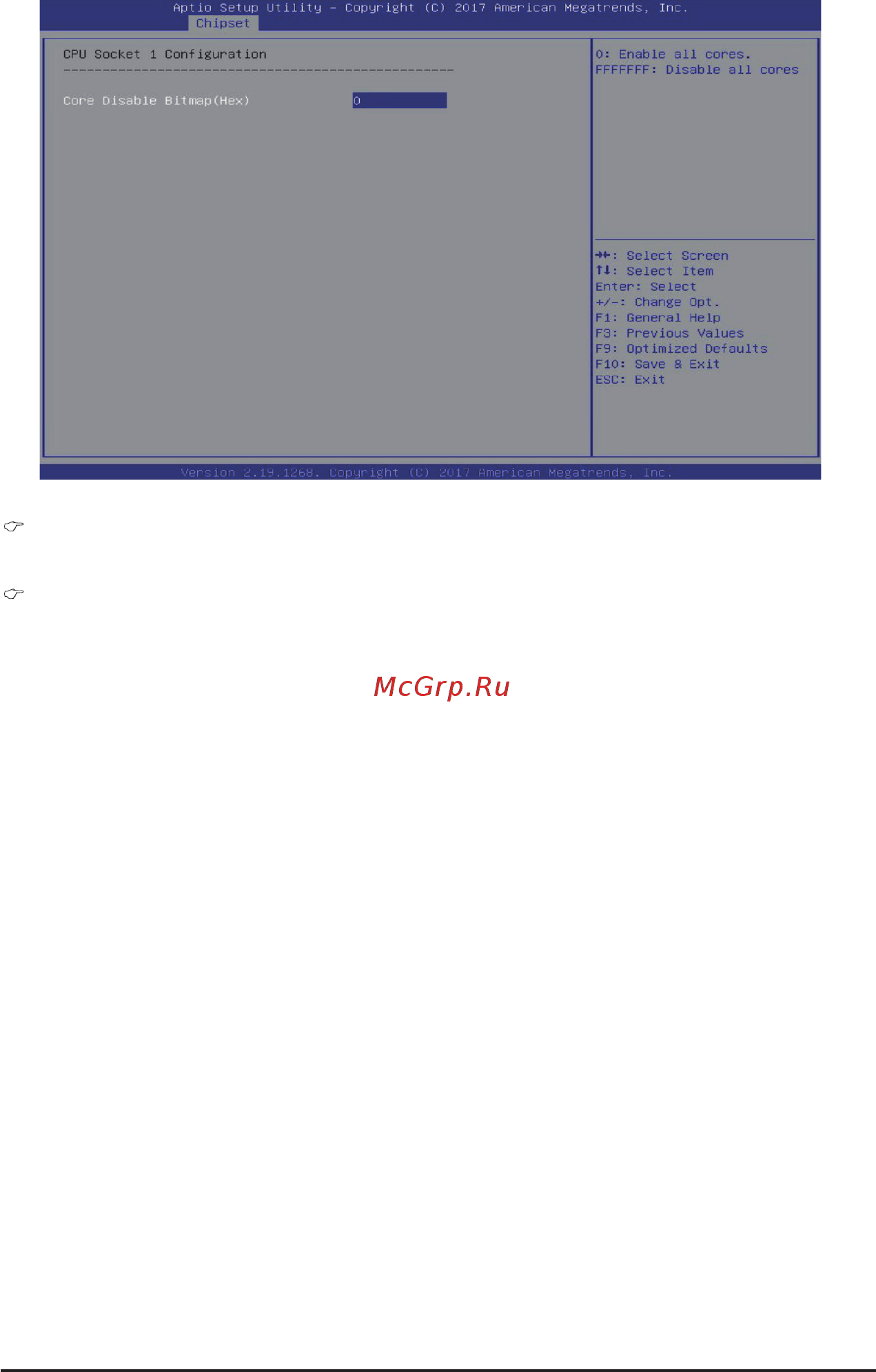

 CPUSocket0/1Conguration

Press [Enter] for conguration of advanced items.

Core Disable Bitmap(Hex) (for CPU socket 0/1)

Number of Cores to enable. 0 means all cores. FFFFFFF means to disable all cores. The maximum

value depends on the number of CPUs available. Press the numeric keys to adjust desired values.
