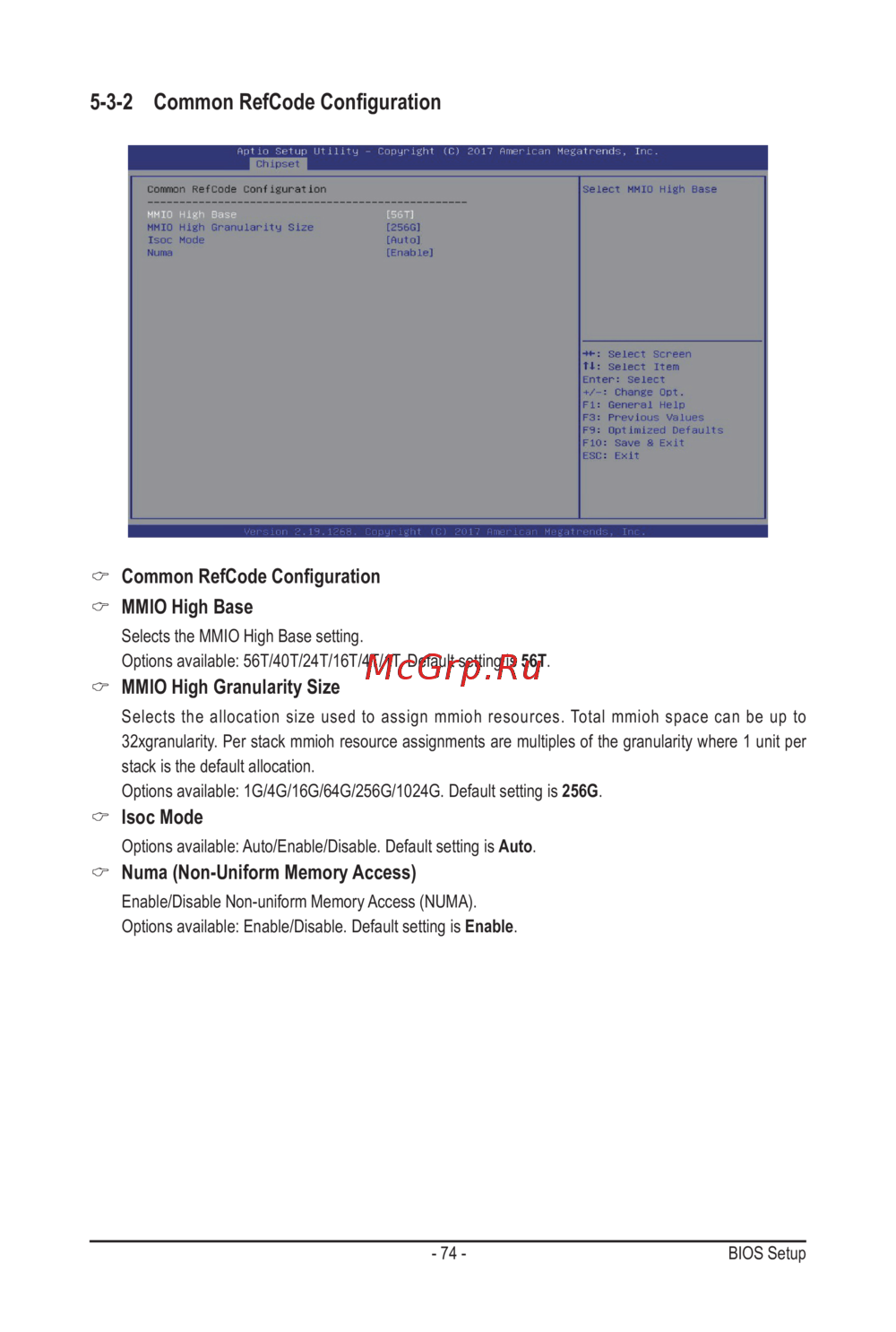

Gigabyte H261-3C0 (rev. 100) [74/123] Numa non uniform memory access

- 74 - BIOS Setup

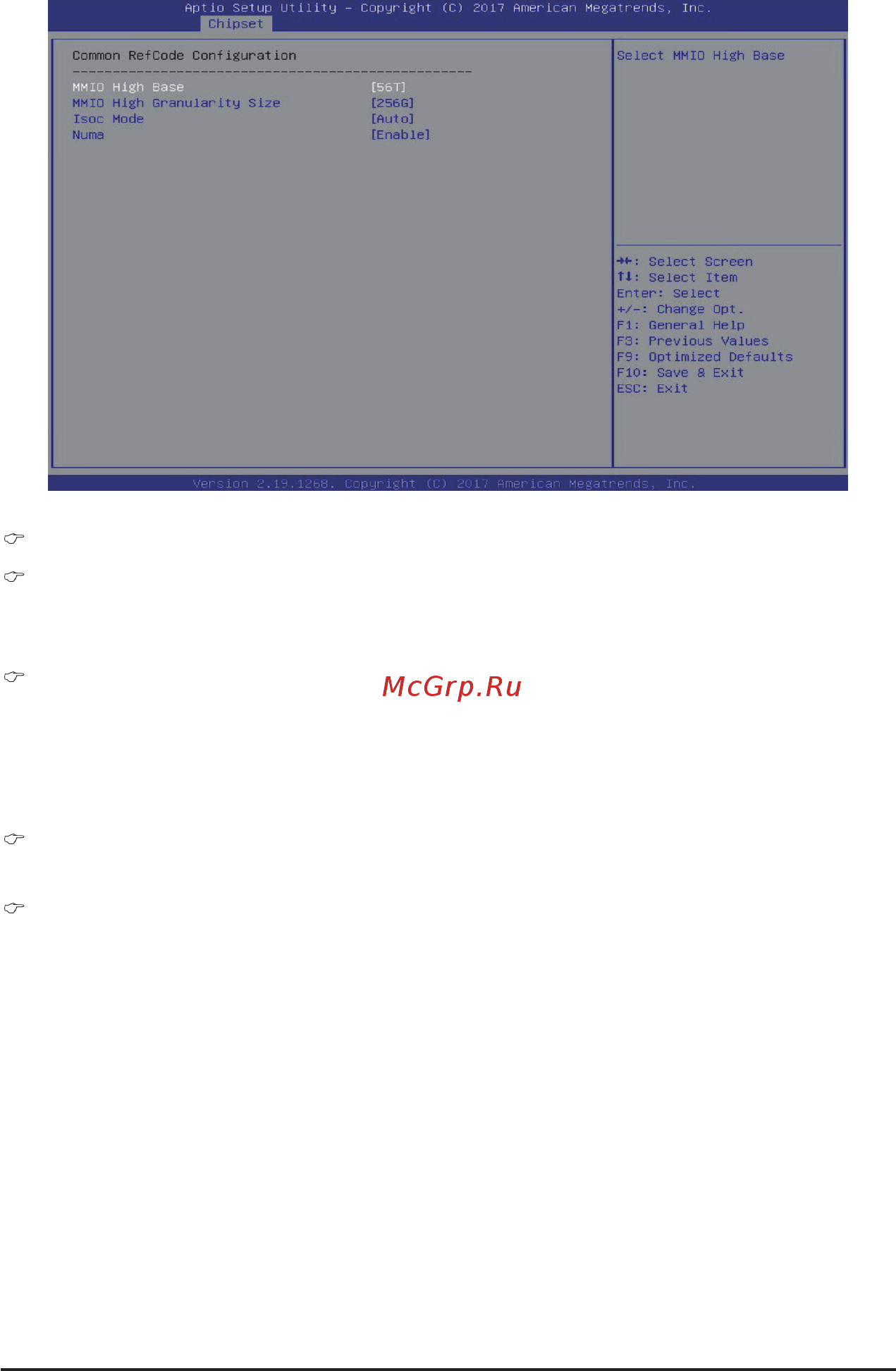

5-3-2 CommonRefCodeConguration

 CommonRefCodeConguration

MMIO High Base

Selects the MMIO High Base setting.

Options available: 56T/40T/24T/16T/4T/1T. Default setting is 56T.

MMIO High Granularity Size

Selects the allocation size used to assign mmioh resources. Total mmioh space can be up to

32xgranularity. Per stack mmioh resource assignments are multiples of the granularity where 1 unit per

stack is the default allocation.

Options available: 1G/4G/16G/64G/256G/1024G. Default setting is 256G.

Isoc Mode

Options available: Auto/Enable/Disable. Default setting is Auto.

Numa (Non-Uniform Memory Access)

Enable/Disable Non-uniform Memory Access (NUMA).

Options available: Enable/Disable. Default setting is Enable.
