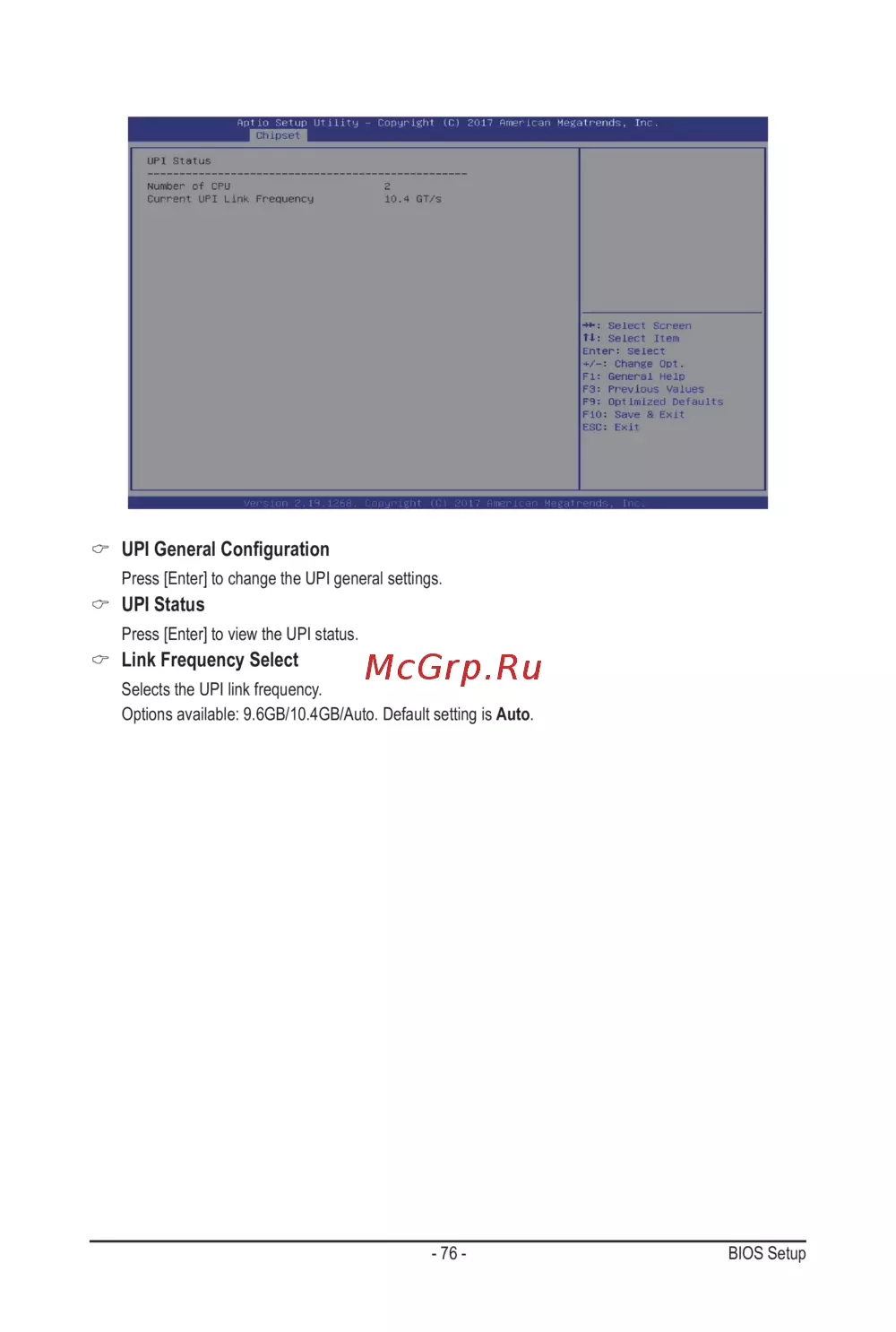

Gigabyte H261-3C0 (rev. 100) [76/123] Upigeneralconfiguration

- 76 - BIOS Setup

 UPIGeneralConguration

Press [Enter] to change the UPI general settings.

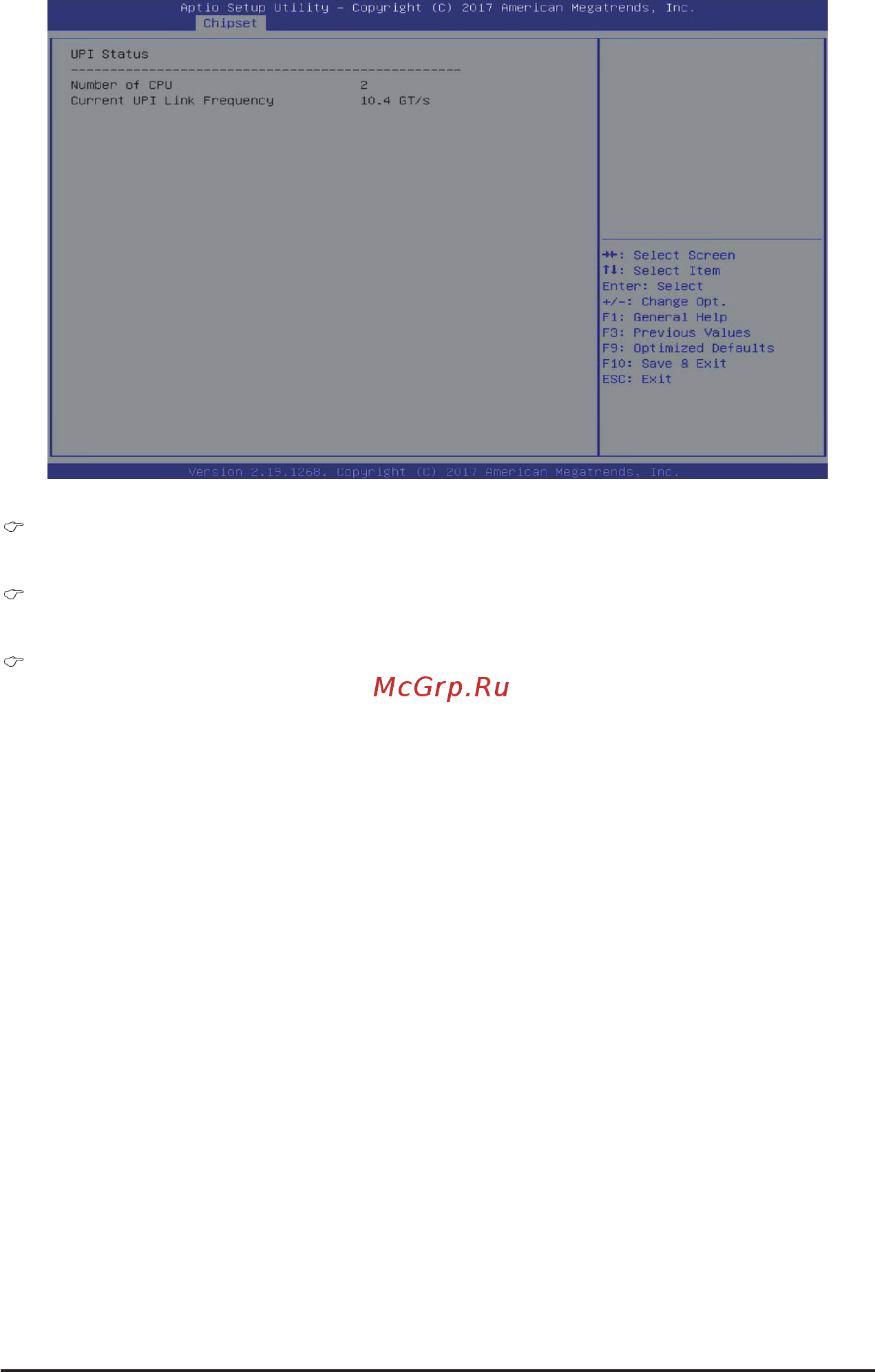

UPI Status

Press [Enter] to view the UPI status.

Link Frequency Select

Selects the UPI link frequency.

Options available: 9.6GB/10.4GB/Auto. Default setting is Auto.
