Gigabyte H261-3C0 (rev. 100) [81/123] Inter vmd technology

BIOS Setup - 81 -

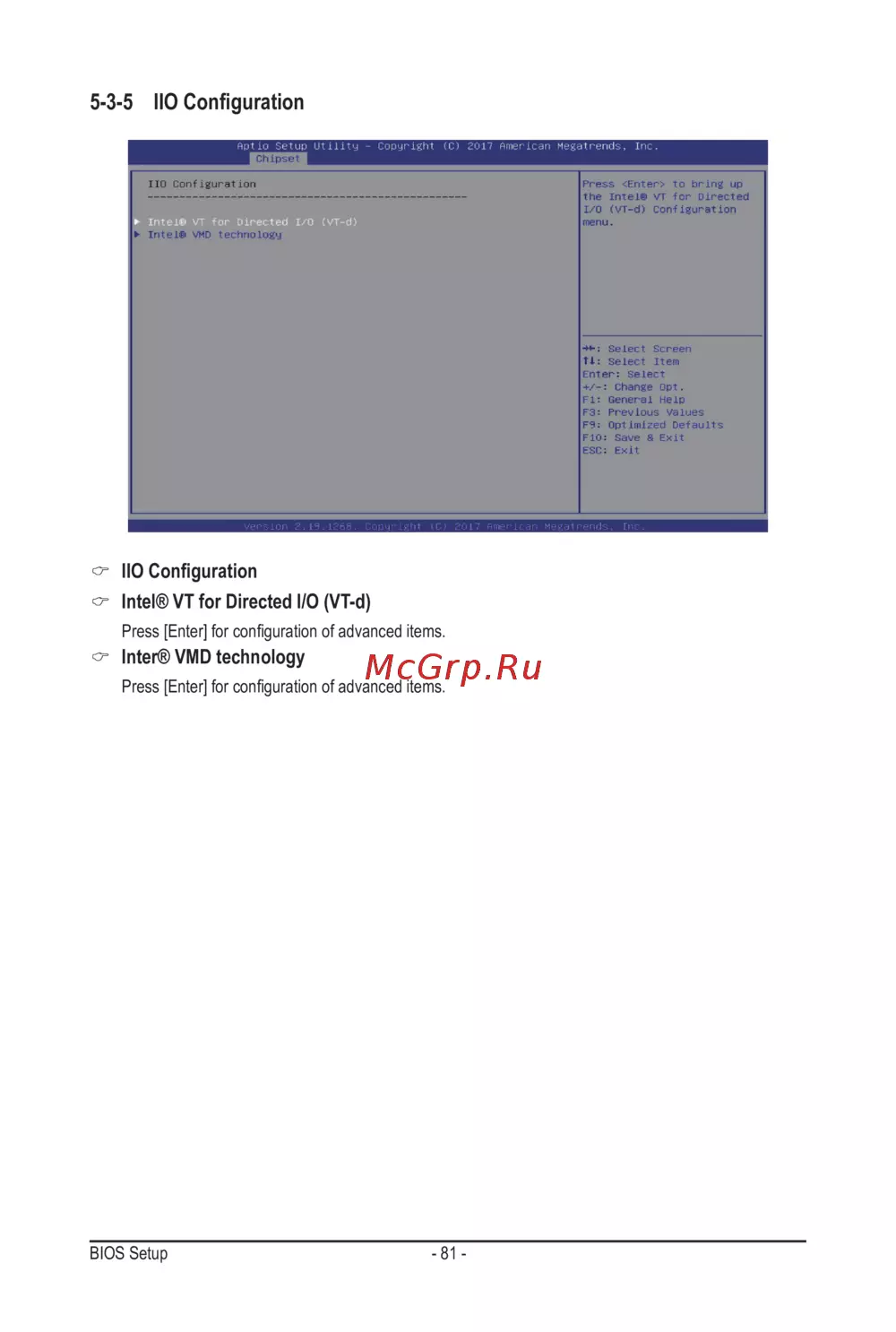

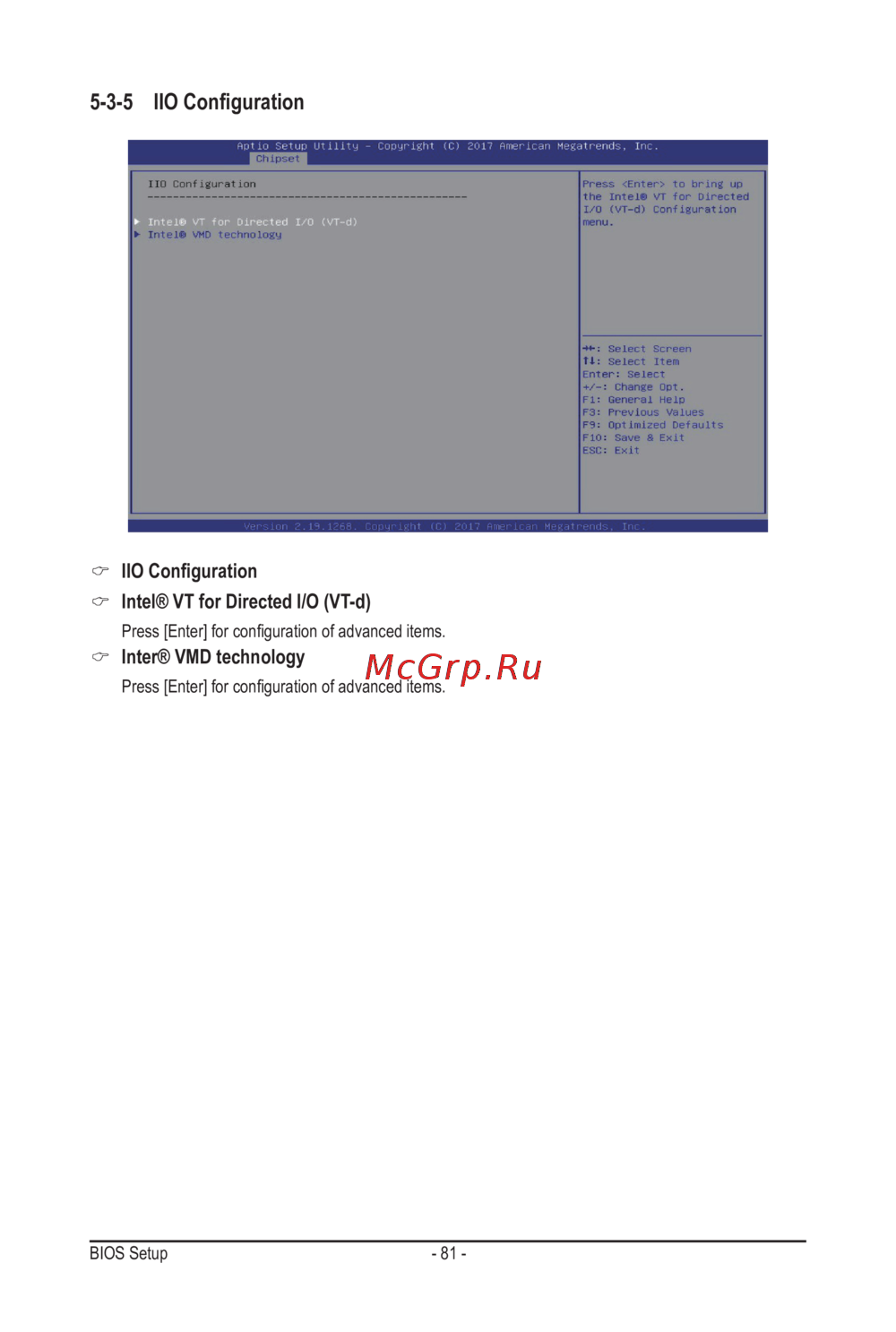

5-3-5 IIOConguration

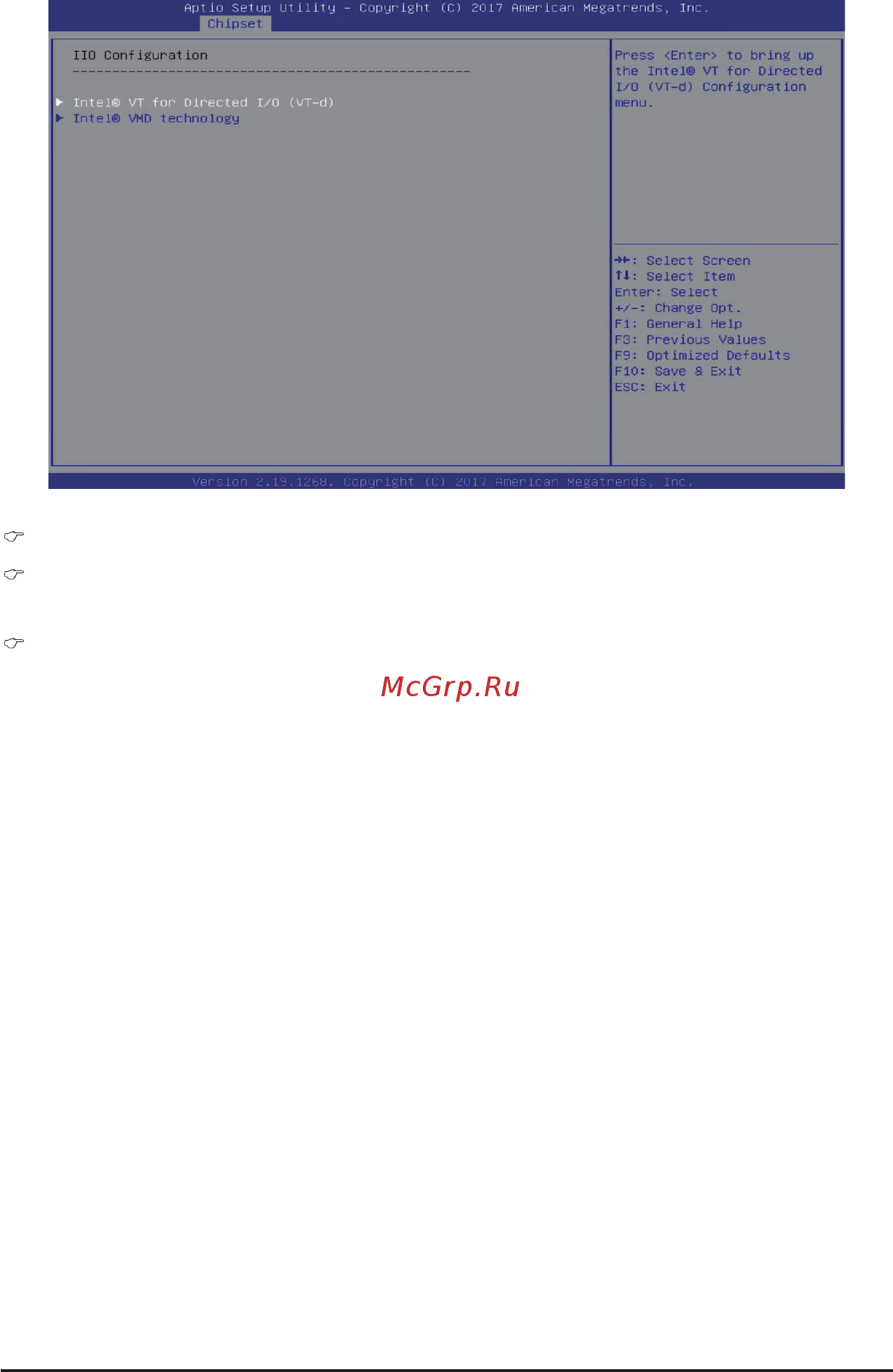

 IIOConguration

Intel® VT for Directed I/O (VT-d)

Press [Enter] for conguration of advanced items.

Inter® VMD technology

Press [Enter] for conguration of advanced items.
