Gigabyte H261-3C0 (rev. 100) [83/123] Intel vmd technology intel vmdconfiguration

BIOS Setup - 83 -

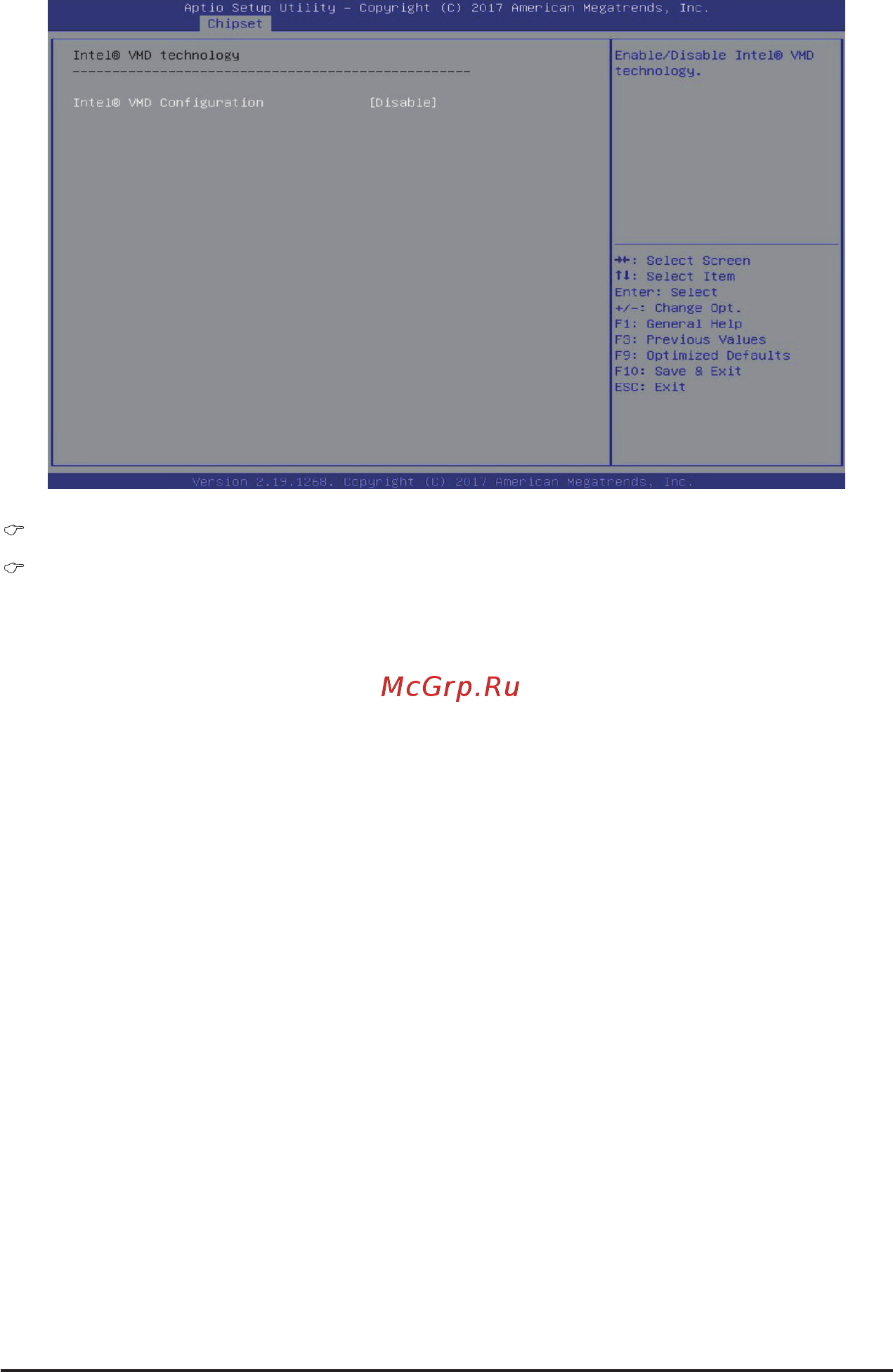

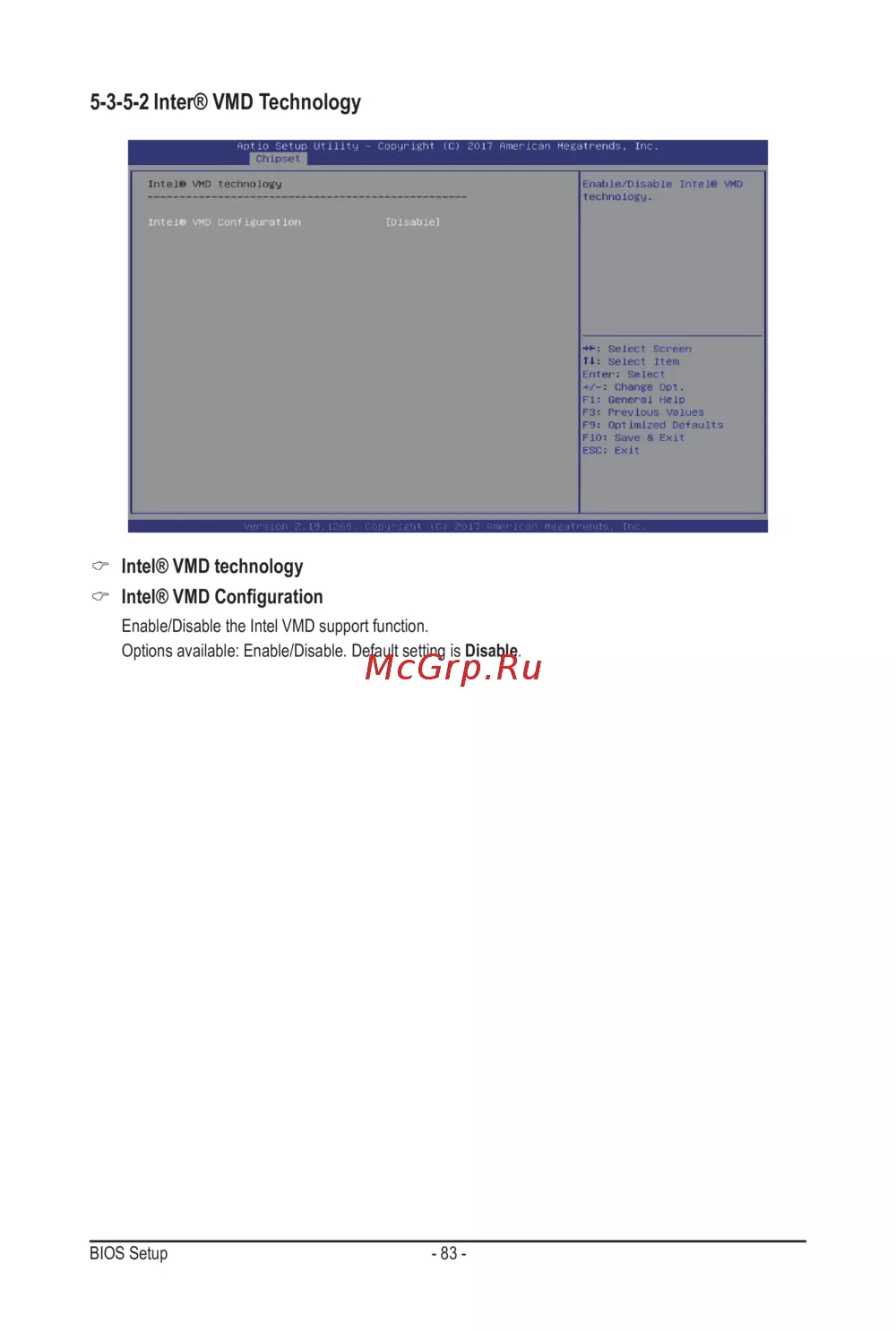

5-3-5-2 Inter® VMD Technology

Intel® VMD technology

 Intel®VMDConguration

Enable/Disable the Intel VMD support function.

Options available: Enable/Disable. Default setting is Disable.
