Gigabyte H261-3C0 (rev. 100) [84/123] Package c state control

- 84 - BIOS Setup

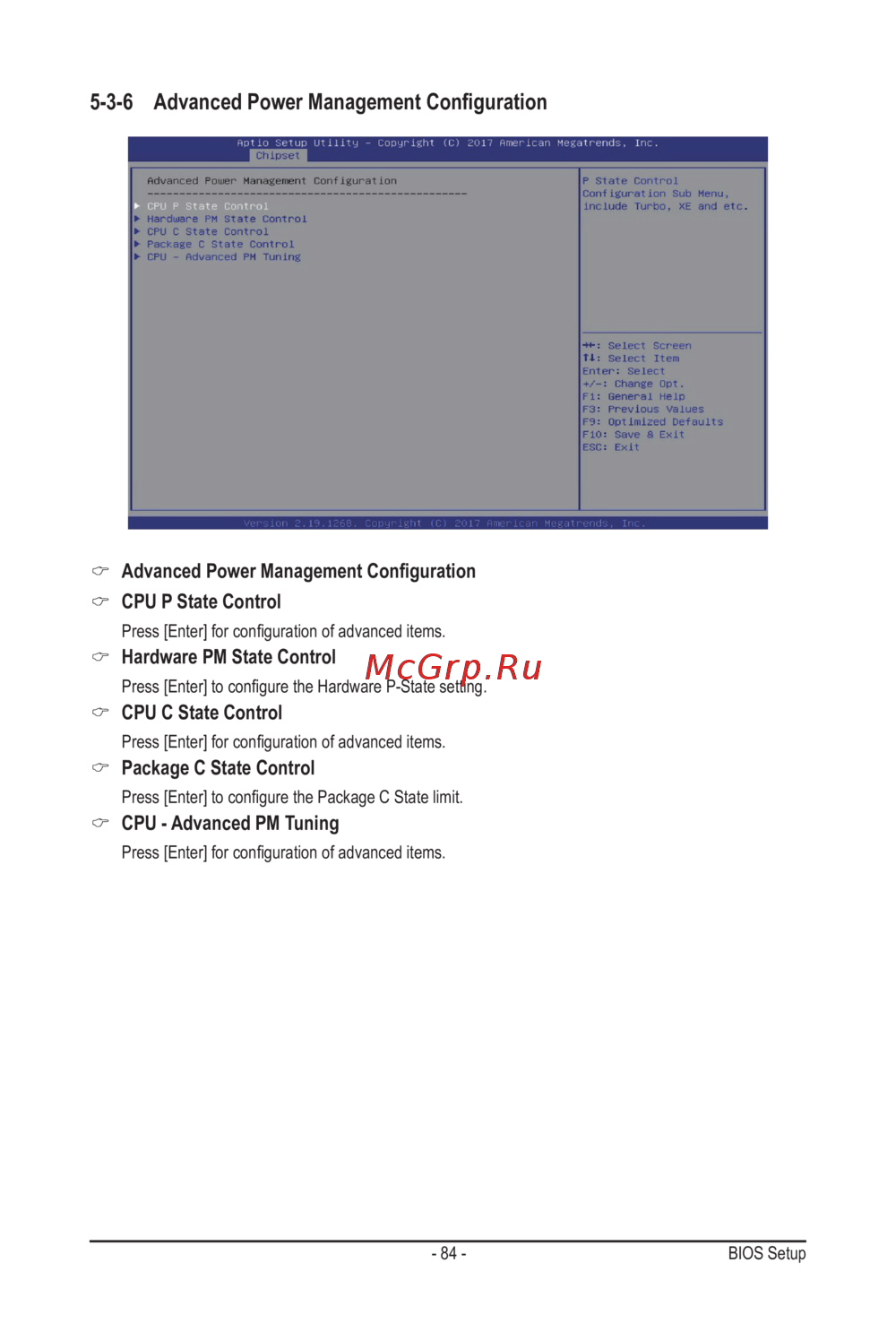

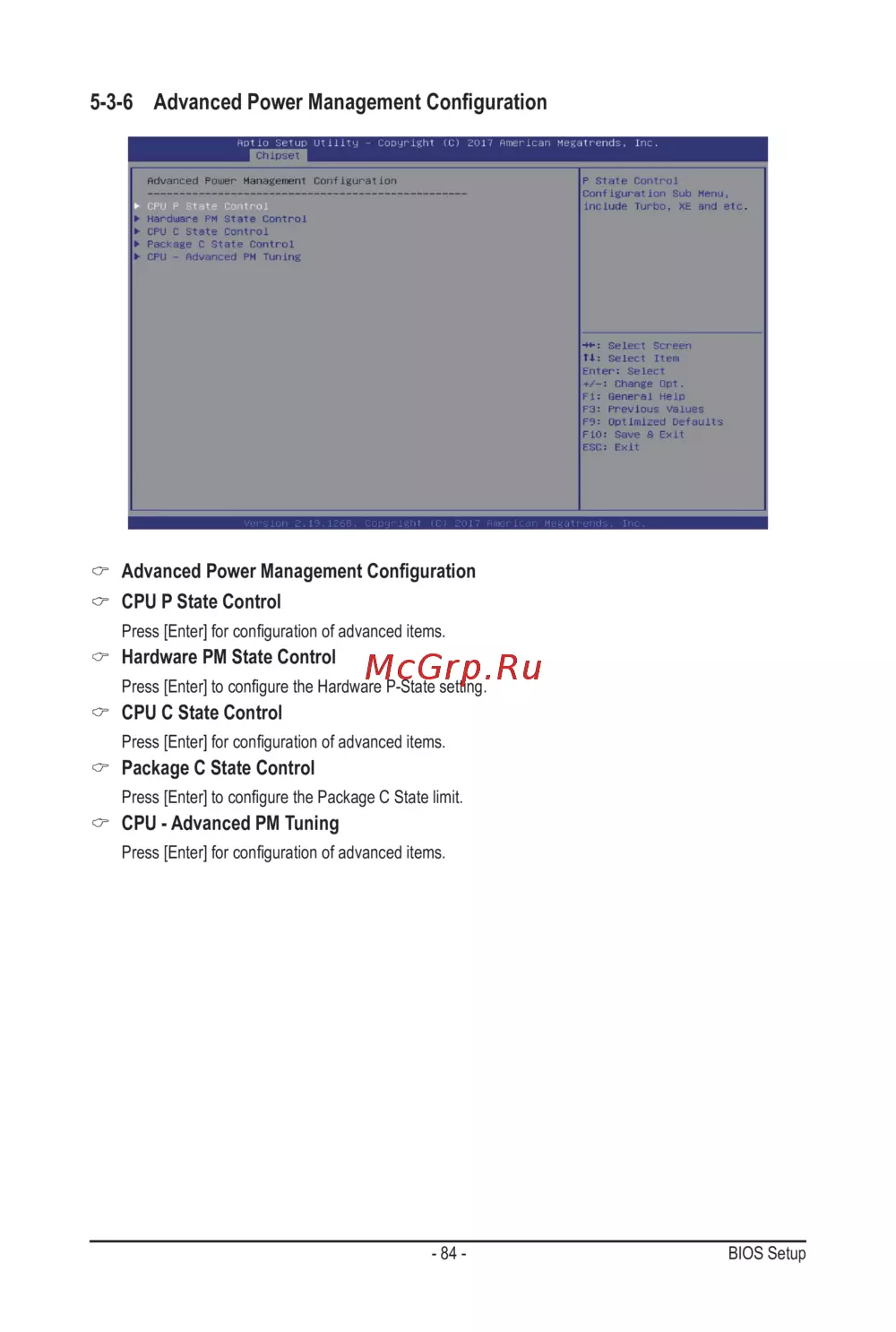

5-3-6 AdvancedPowerManagementConguration

 AdvancedPowerManagementConguration

CPU P State Control

Press [Enter] for conguration of advanced items.

Hardware PM State Control

Press [Enter] to congure the Hardware P-State setting.

CPU C State Control

Press [Enter] for conguration of advanced items.

Package C State Control

Press [Enter] to congure the Package C State limit.

CPU - Advanced PM Tuning

Press [Enter] for conguration of advanced items.
