Gigabyte H261-3C0 (rev. 100) [88/123] Package c state

- 88 - BIOS Setup

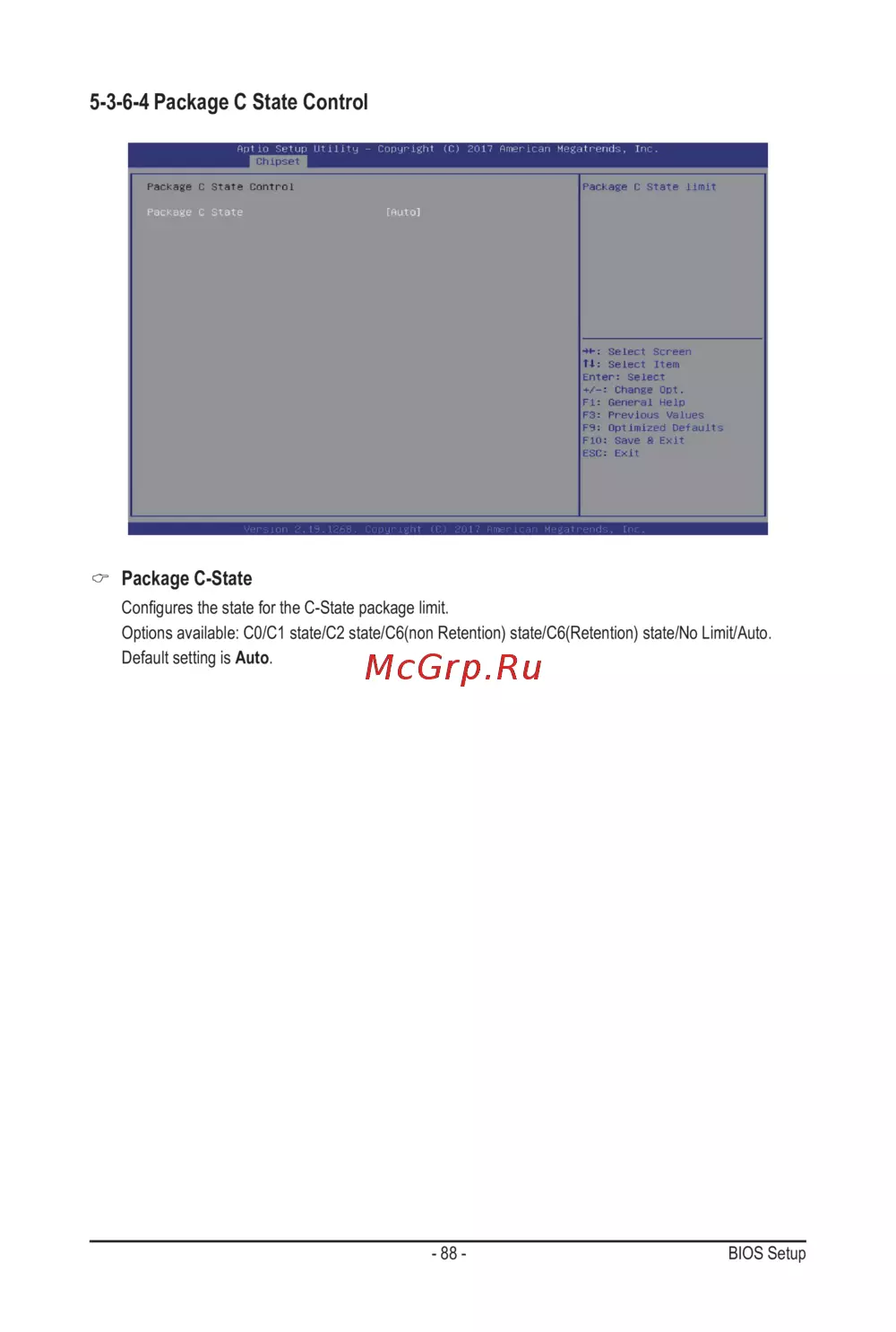

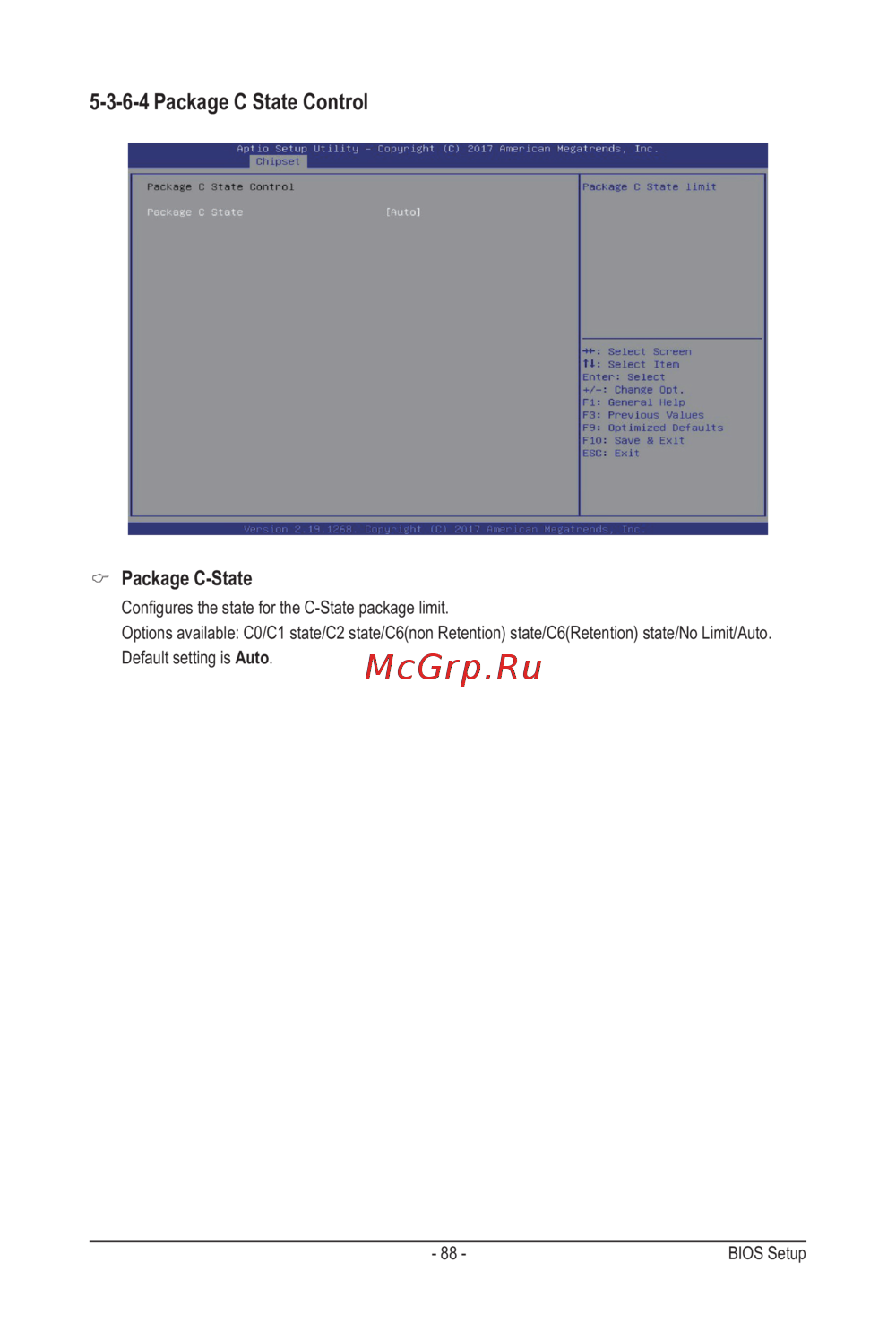

5-3-6-4 Package C State Control

Package C-State

Congures the state for the C-State package limit.

Options available: C0/C1 state/C2 state/C6(non Retention) state/C6(Retention) state/No Limit/Auto.

Default setting is Auto.
