Gigabyte H261-3C0 (rev. 100) [89/123] Power performance tunin

BIOS Setup - 89 -

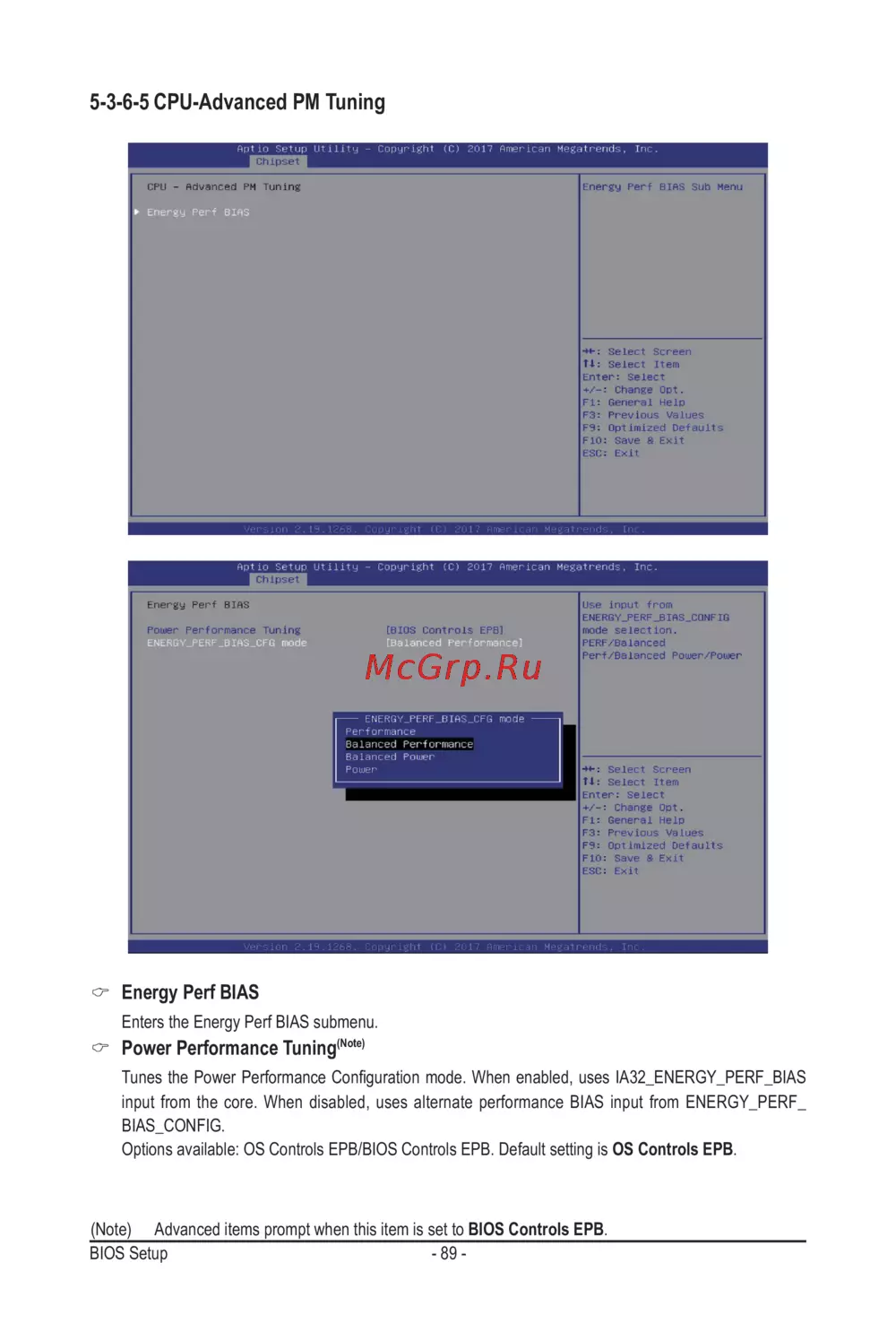

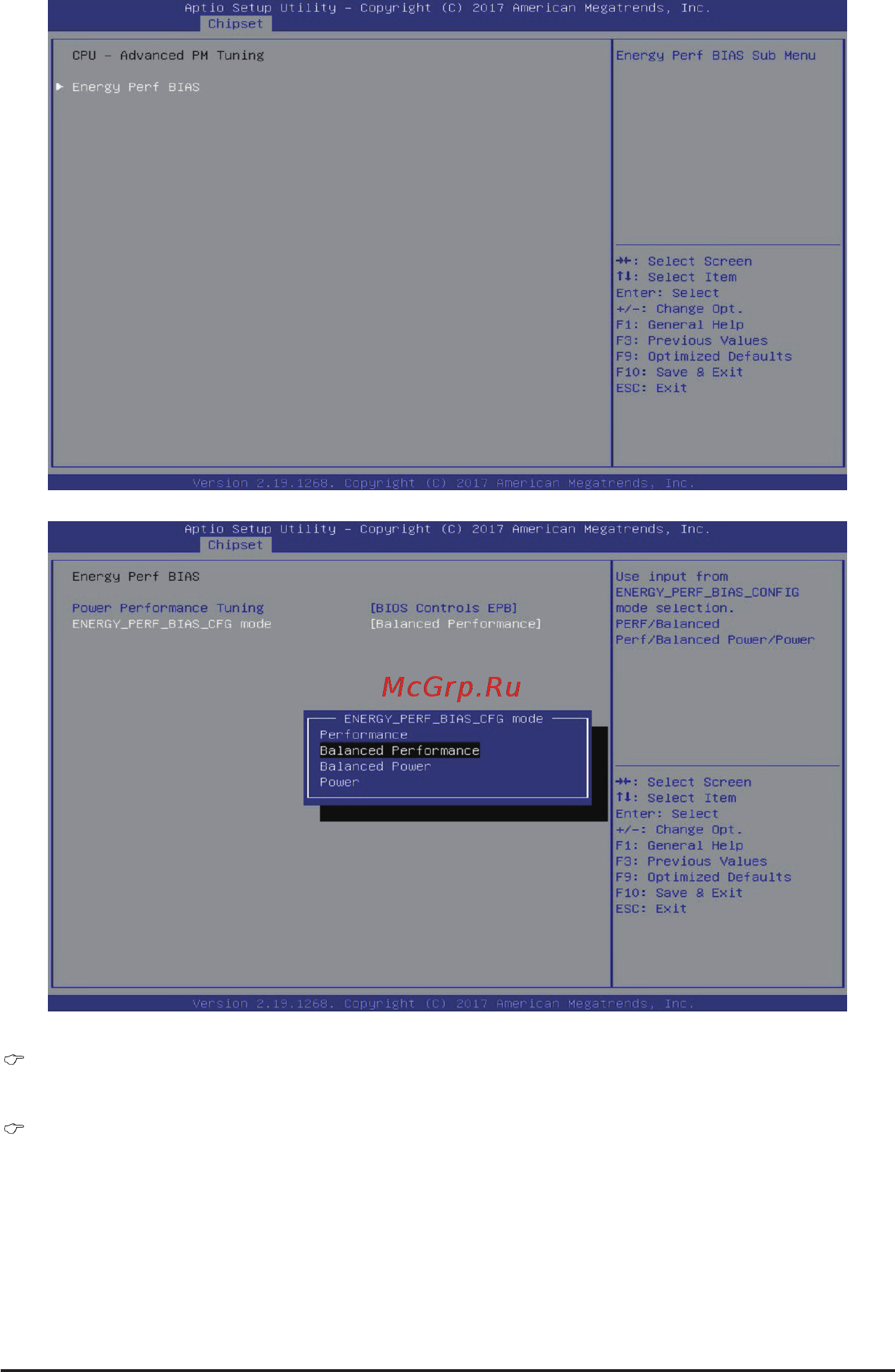

5-3-6-5 CPU-Advanced PM Tuning

Energy Perf BIAS

Enters the Energy Perf BIAS submenu.

Power Performance Tuning

(Note)

Tunes the Power Performance Conguration mode. When enabled, uses IA32_ENERGY_PERF_BIAS

input from the core. When disabled, uses alternate performance BIAS input from ENERGY_PERF_

BIAS_CONFIG.

Options available: OS Controls EPB/BIOS Controls EPB. Default setting is OS Controls EPB.

(Note) Advanced items prompt when this item is set to BIOS Controls EPB.
