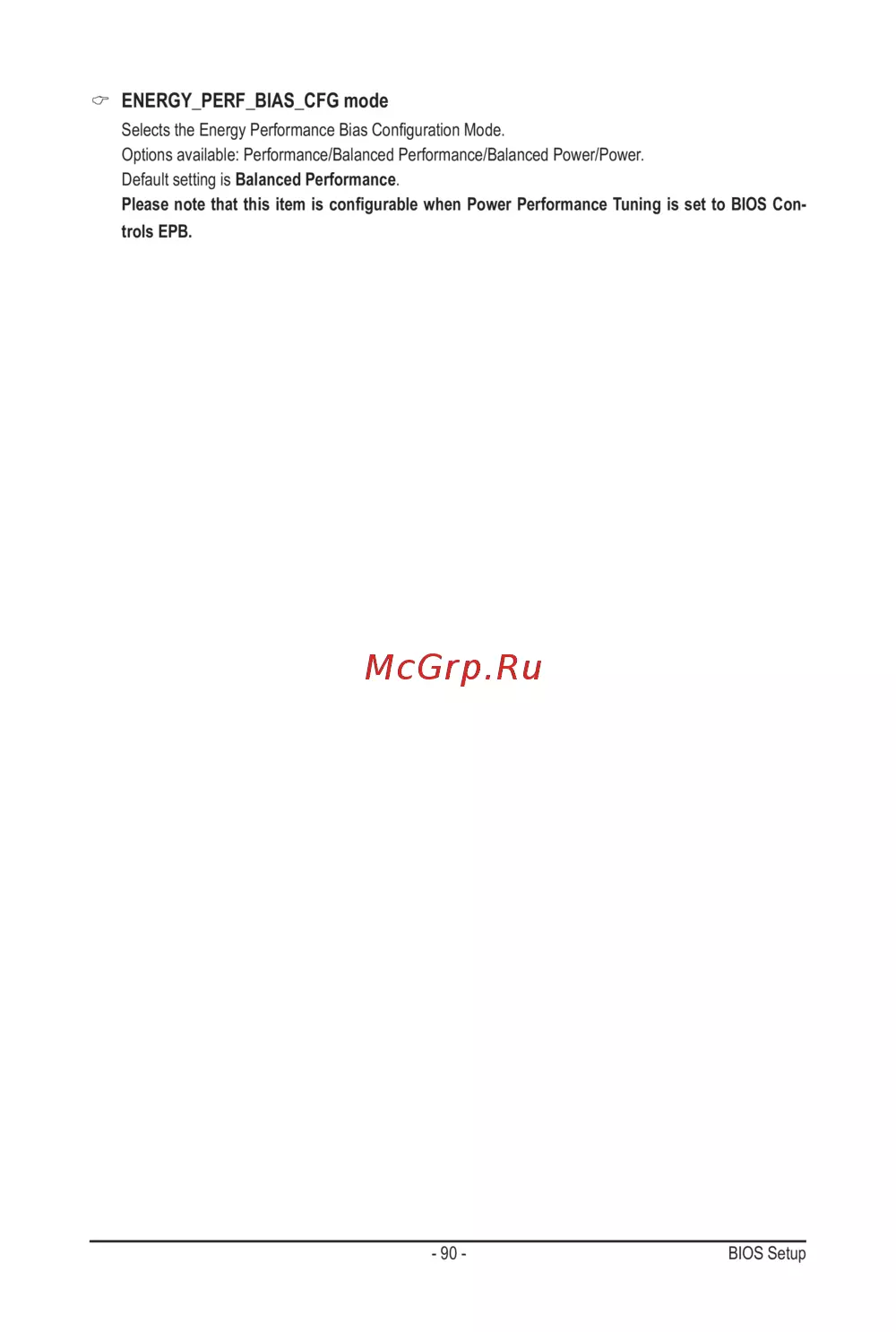

Gigabyte H261-3C0 (rev. 100) [90/123] Energy_perf_bias_cfg mode

- 90 - BIOS Setup

ENERGY_PERF_BIAS_CFG mode

Selects the Energy Performance Bias Conguration Mode.

Options available: Performance/Balanced Performance/Balanced Power/Power.

Default setting is Balanced Performance.

 PleasenotethatthisitemiscongurablewhenPowerPerformanceTuningissettoBIOSCon-

trols EPB.
