Gigabyte H261-3C0 (rev. 100) [91/123] Pchssataconfiguration

BIOS Setup - 91 -

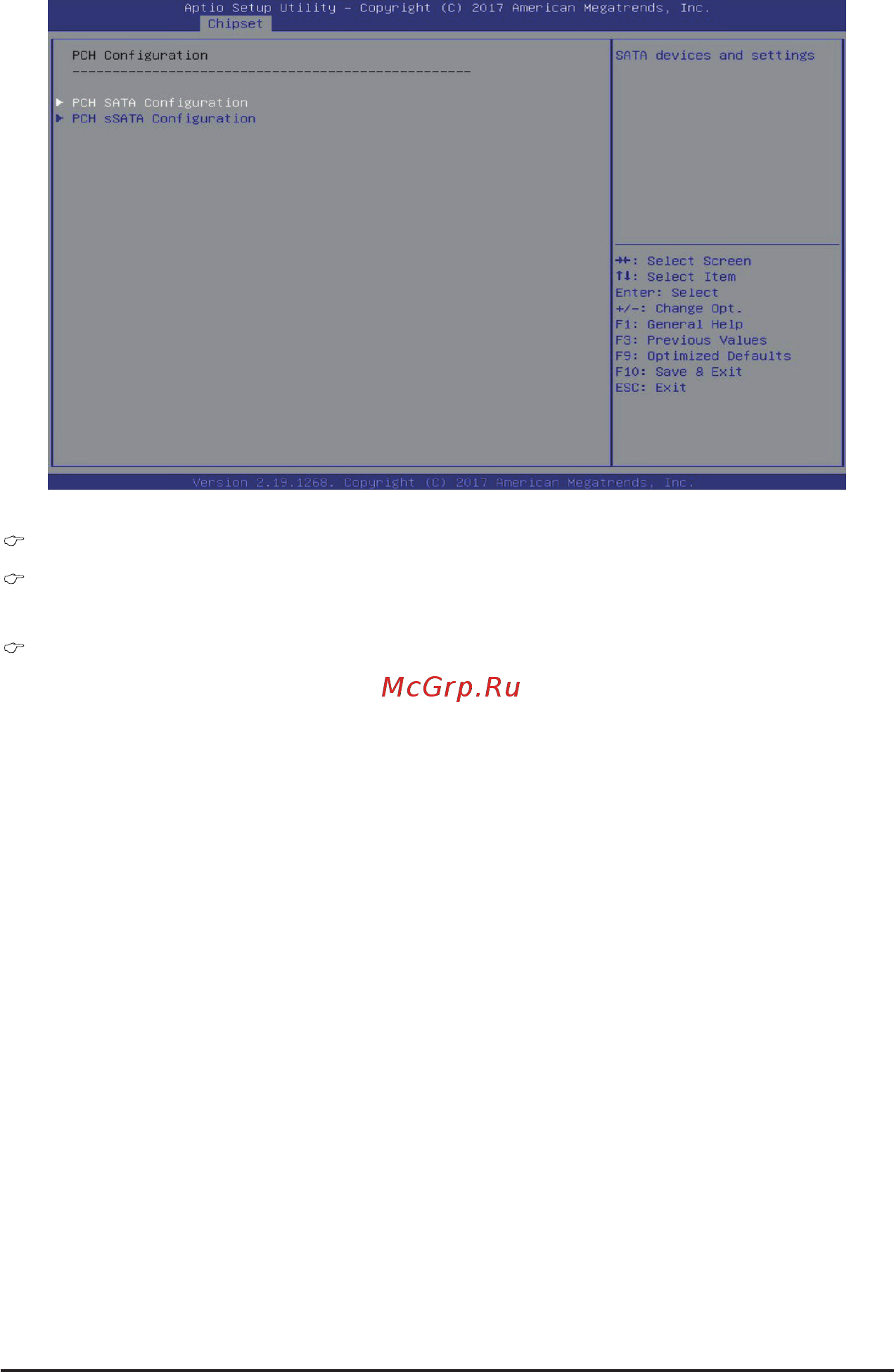

5-3-7 PCHConguration

 PCHConguration

 PCHSATAConguration

Press [Enter] for conguration of advanced items.

 PCHsSATAConguration

Press [Enter] for conguration of advanced items.
