- 92 - BIOS Setup

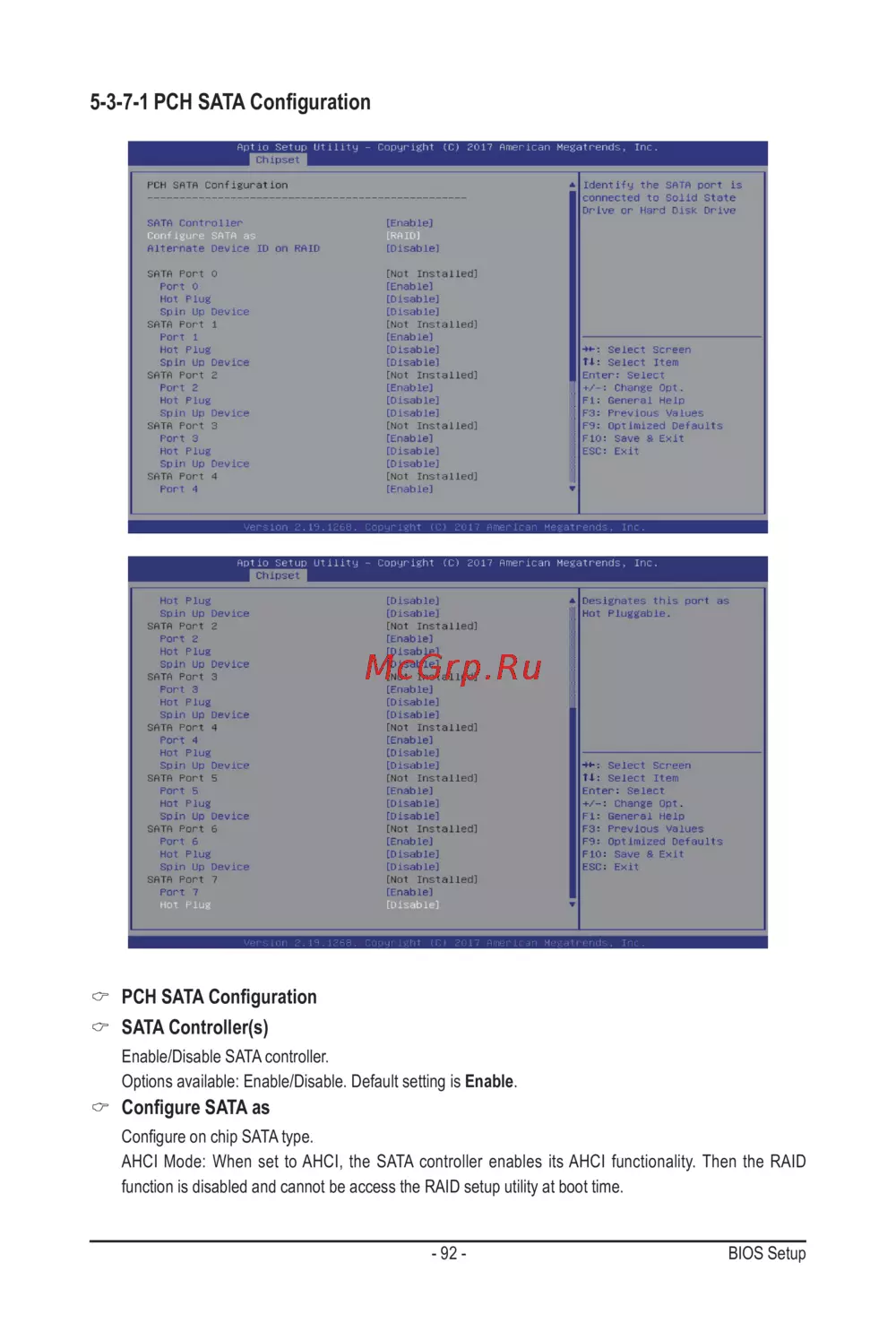

5-3-7-1PCHSATAConguration

 PCHSATAConguration

SATA Controller(s)

Enable/Disable SATA controller.

Options available: Enable/Disable. Default setting is Enable.

 CongureSATAas

Congure on chip SATA type.

AHCI Mode: When set to AHCI, the SATA controller enables its AHCI functionality. Then the RAID

function is disabled and cannot be access the RAID setup utility at boot time.
